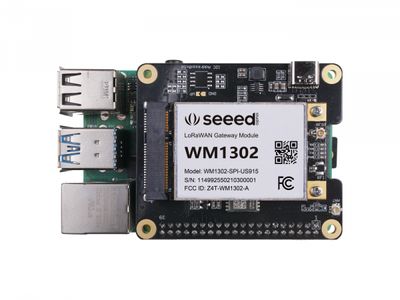

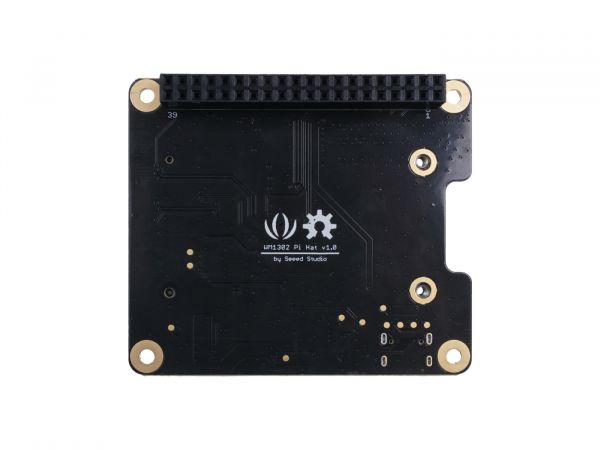

WM1302 Pi HAT is an add-on expansion board designed specifically for attaching the WM1302 LoRaWAN Gateway module based on SX1302 to Raspberry Pi versions up to Raspberry Pi 4B. It also integrates the LoRaWAN authentication chip and GPS module.

WM1032 module is a new generation of LoRaWAN gateway module with mini-PCIe form-factor. Based on the Semtech® SX1302 baseband LoRaWAN® chip, WM1302 unlocks the greater potential capacity of long-range wireless transmission for gateway products. It features higher sensitivity, less power consumption, and lower operating temperature than the previous SX1301 and SX1308 LoRa® chip.

Huom! Kuvan Raspberry Pi ja WM1302 LoRa-moduuli eivät kuulu toimitukseen.

Ominaisuudet

• Standard Pi Hat form factor with 40 pins female pin header
• Raspberry Pi versions up to 4B compatible
• GPS Module embedded
• LoRaWAN authentication chip embedded

Speksit

Toimitus

• WM1302 Pi Hat *1
• GPS Antenna *1
• M2.5*6mm Screw *8
• M2.5*11.0mm Stud *4
• M2.0*H6.0mm Screw *2

Applikaatiot

• LoRaWAN Gateway device/hotspot development
• Long-distance wireless communication application development
• Any learning and experimentation based on Raspberry Pi
• LoRa and LoRaWAN application learn and research

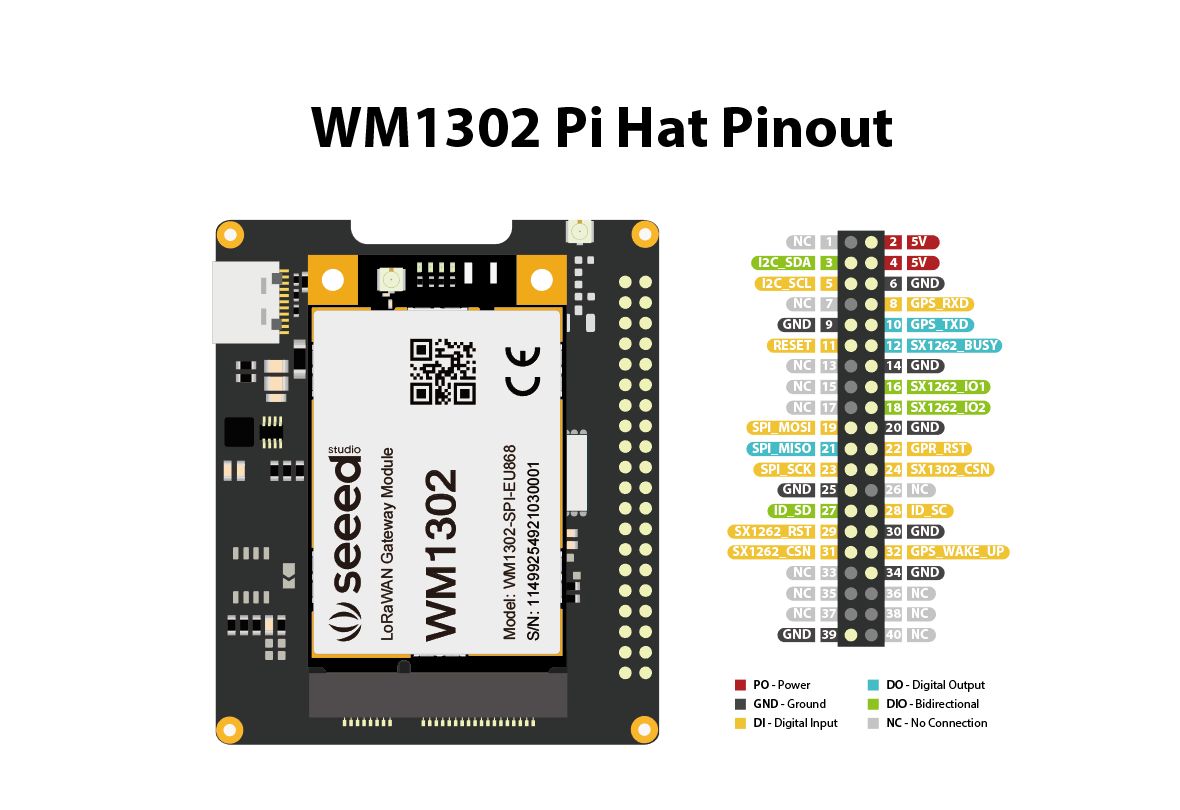

Pinout

[img-25495-left-desc_default]

Linkit

• WM1302 Raspberry Pi Hat Wiki
• WM1302 Pi Hat v1.0.sch
• WM1302 Pi Hat v1.0.pdf
• WM1302 Pi Hat v1.0.brd
