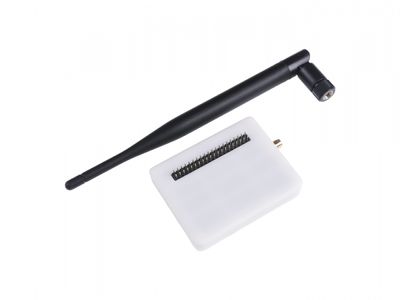

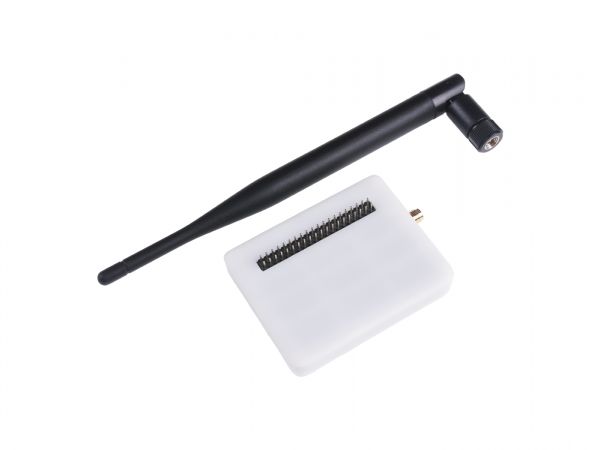

Wio Terminal Chassis - LoRa-E5 and GNSS is a LoRaWAN communication extension board for Seeed Wio-Terminal Dev Board. It is embedded with the LoRa-E5 STM32WLE5JC Module, which is the world-first combo of LoRa RF and MCU chip into one single tiny chip. It is powered by ARM Cortex-M4 core and Semtech SX126X LoRa chip, supports both LoRaWAN and LoRa protocol on the worldwide frequency and (G)FSK, BPSK, (G)MSK, and LoRa modulations.

The GNSS module is the Quectel L76-LB. It supports concurrent reception of GPS, GLONASS, BeiDou and QZSS. With 33 tracking channels, 99 acquisition channels and 210 PRN channels, it can acquire and track any mix of GPS, GLONASS (or BeiDou) and SBAS signals.

Features

• Powerful LoRa module: use extremely compact, and high-performance LoRa-E5 module

• Embedded LoRaWAN® protocol, AT command, support global LoRaWAN® frequency plan

• Worldwide Compatibility: wide frequency range including EU868/US915/AU915/AS923/KR920/IN865

• Long-distance transmission range to 10km (ideal value in open area)

• GNSS module(Quectel L76-LB) support GPS, GLONASS and BeiDou

• Compatible Arduino

• Ultra-low-power design

Applications

• LoRaWAN GPS Tracker

• LoRaWAN Field Tester

• Smart Agriculture

• Smart Cities

• Smart Factory

• Rapid prototyping of LoRa devices with Wio Terminal

• Any long-distance wireless communication application development

• LoRa and LoRaWAN application learn and research

Specification

Part List

• Wio Terminal
• USB Type-C Short Cable
• Wio Terminal Chassis - LoRa-E5 and GNSS *1
• Antenna(EU868/us915) *1

Links

• Long Range-E5 datasheet and specifications
• Long Range-E5 AT Command Specification
• STM32WLE5JC Datasheet
• Quectel L76-LB GNSS datasheet
