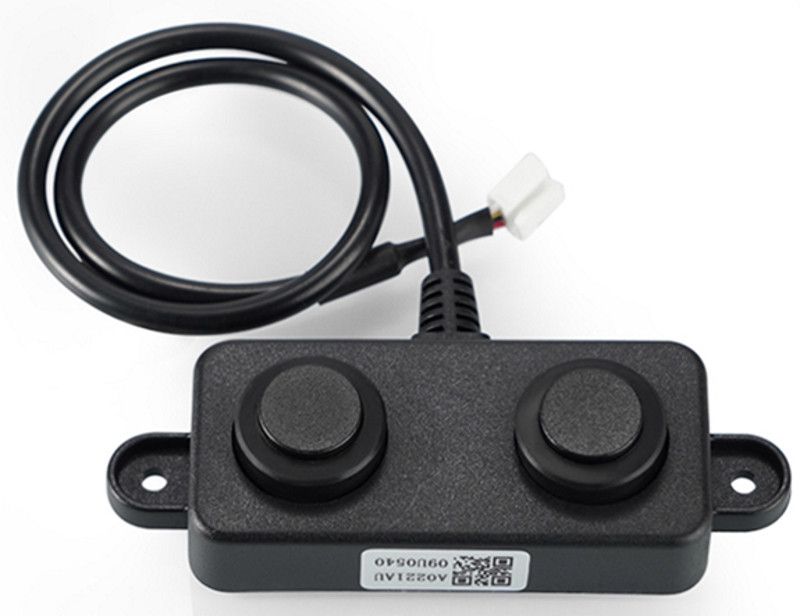

This ultrasonic ranging sensor is a non-contact distance measurement module with stable performance and high ranging accuracy featuring much smaller blind zone, wider sensing angle and a certain penetration power compared with other similar sensors. It can detect the distance between the ultrasonic wave and the target. Widely used in robot obstacle avoidance, parking management system, automatic control and so on.

Specifications

• Average Current: <8mA

• Operating Voltage: 3.3~5V

• Response Time:100ms

• Detecting Range(Flat object): 3-450cm

• Output: UART

• Operating Temperature: -15~60℃

• Reference Angle: 60º

• Waterproof Grade: IP67

• Measurement accuracy: ±(1 + S*0.3%)

Package List

• 1 x Ultrasonic Ranging Sensor
