This 1.14inch display is equipped with Raspberry Pi RP2040. It supports C/C++ and MicroPython programming language and comes with a 135*240 full color TFT display.

Feature

• MCU: Raspberry Pi RP2040
• 1.14 inch Display: 135*240 full color TFT screen
• Two programming language: C/C++, Micropython

Specification

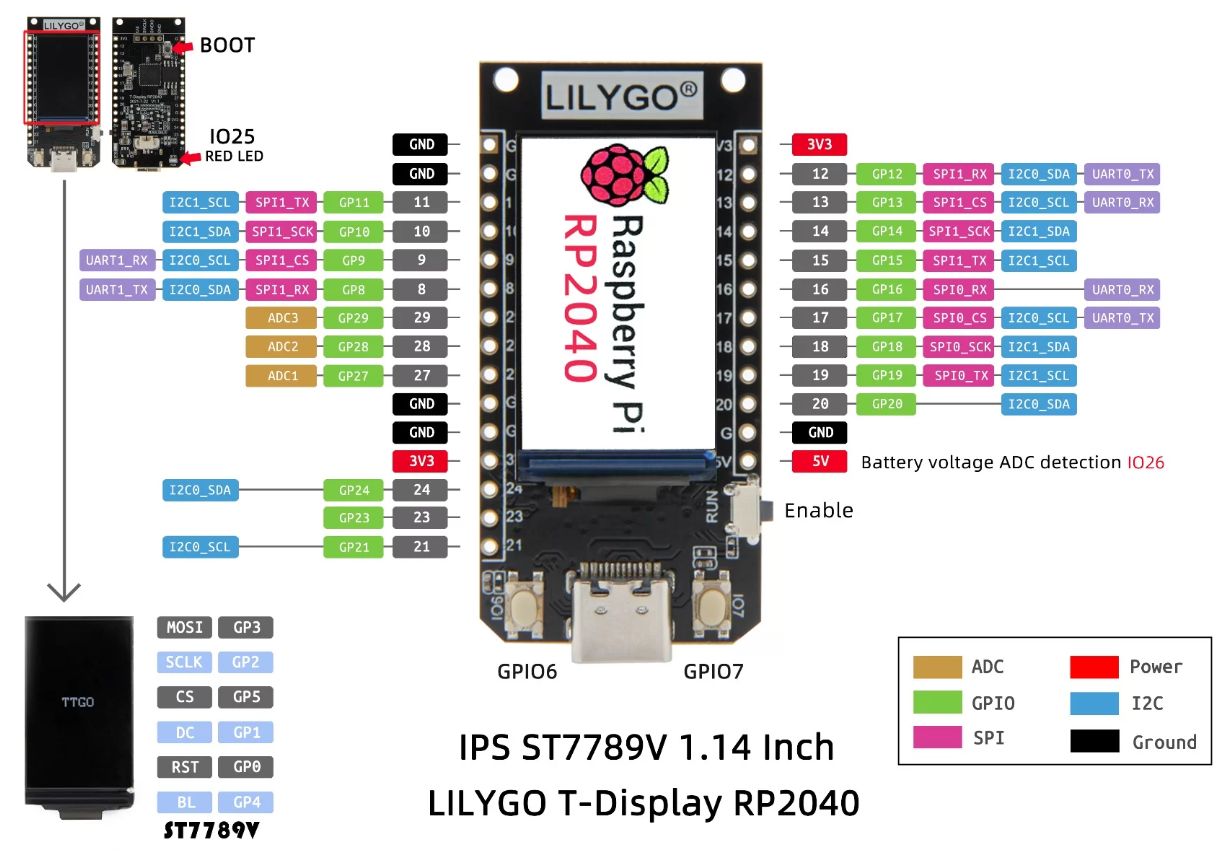

• MCU: Raspberry Pi RP2040
• Bus interface: 2xUART, 2x SPI, 2xI2C, 6x PWM
• Programming Language: C/C++, MicroPython
• Onboard functions: Buttons: IO06+IO07, Battery power detection
• 14 inch STT7789V IPS LCD
• Resolution: 135*240, full color TFT Display
• Working power supply: 3.3v
• Operating Temperature: -20-70℃
• Support USB/Li-pO Battery Dual power supply

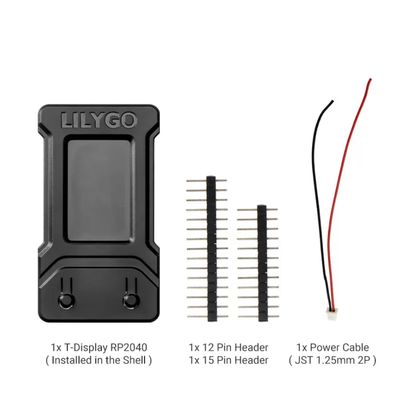

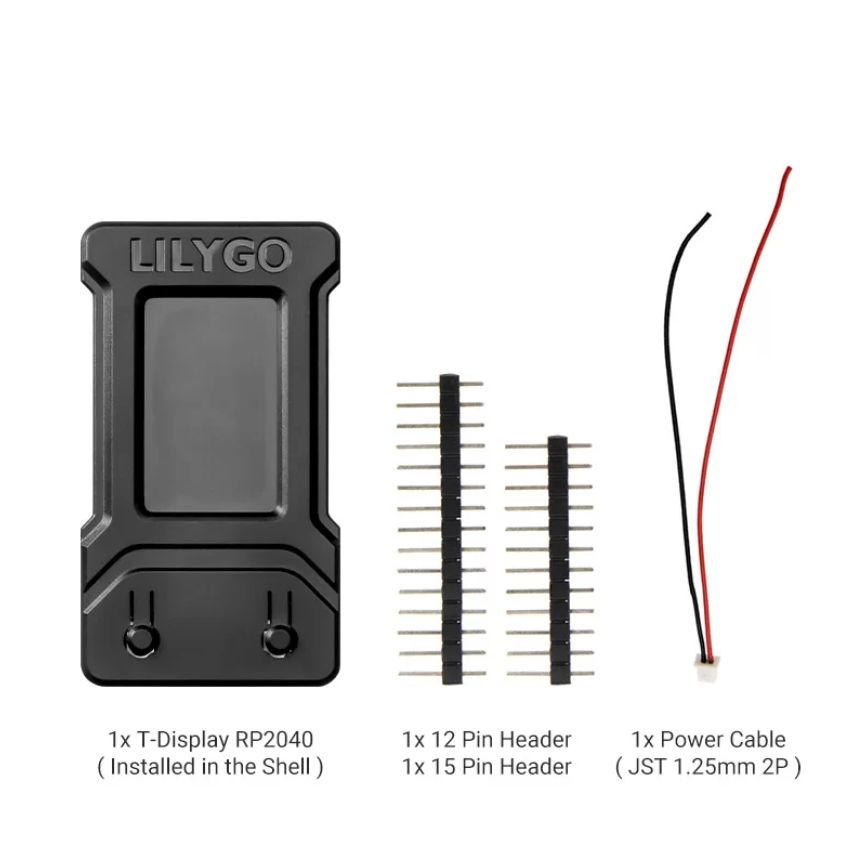

Package List

• 1x T-Display RP2040 ( Installed in the Shell )
• 1x Power Cable ( JST 1.25mm 2P )
• 1x12 Pin Header
• 1x 15 Pin Header
