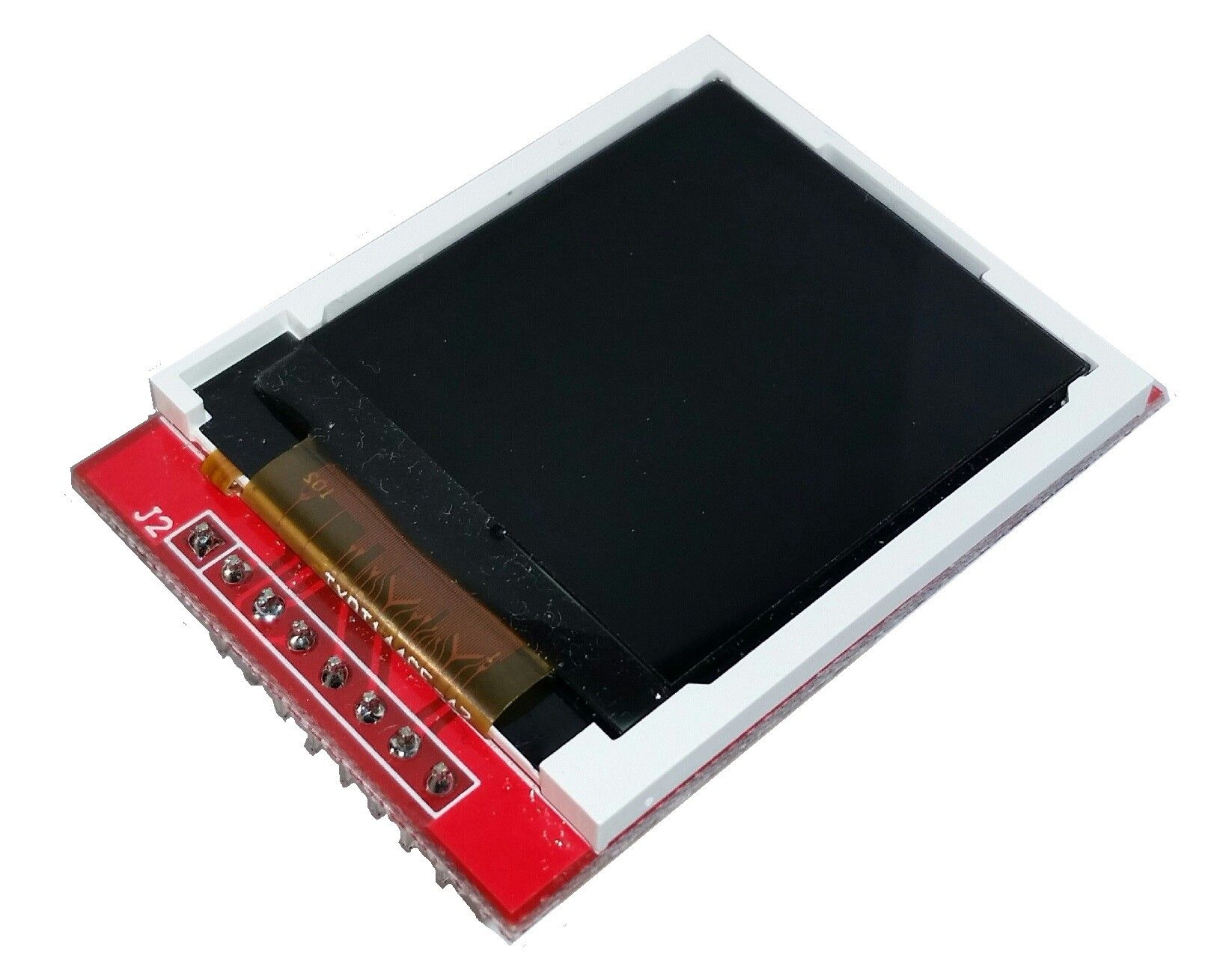

This Color TFT LCD display has 128 x 128 resolution and 262 color, it uses SPI interface to communicate with controller such Arduino, it is the best upgrading of the Nokia5110.

Features

• Size: 1.44 inch
• Interface:SPI
• Resolution: 128*128
• Visual area: 1:1 square
• TFT color screen, the effect is far better than other small CSTN screen
• Drive IC: ILI9163
• Fully compatible and alternative 5110 interface
• Onboard LDO, support 5V/3.3V input voltage, the LED backlight, 3.3V input

Download& External Link

• ILI9163 Datasheet
• Module Schematic
• Elecrow Wiki link

Viivakoodilla 6013801144020 varustettu malli (ennen 3.9.2020)

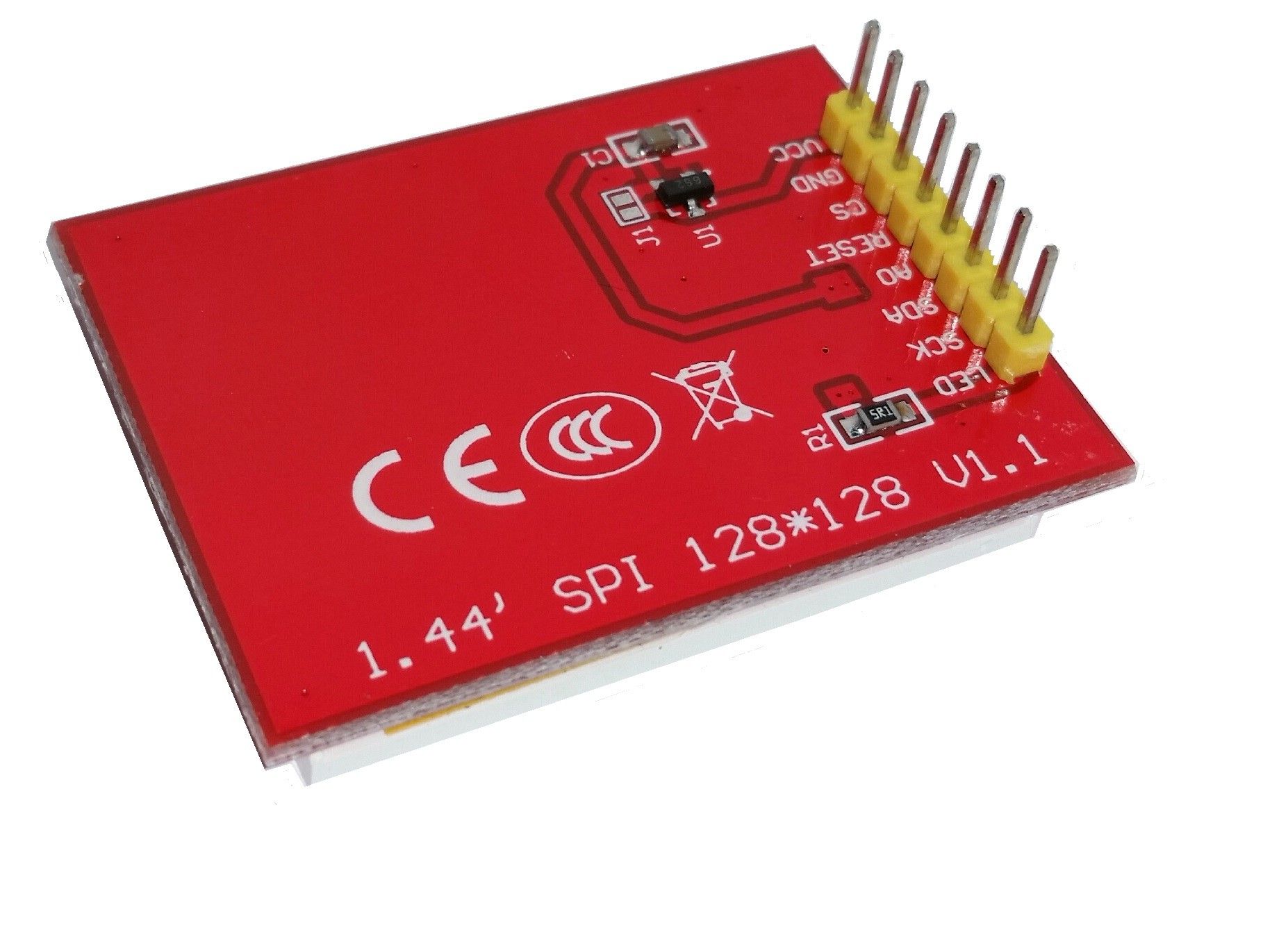

SPI pinnit: LED, SCK, SDA, A0, RESET, CS sekä GND ja VCC. Taustavaloa voi syöttää sarjavastuksella (220R) +5V linjasta. Arduinolla kts. kirjastolla Ugclib
