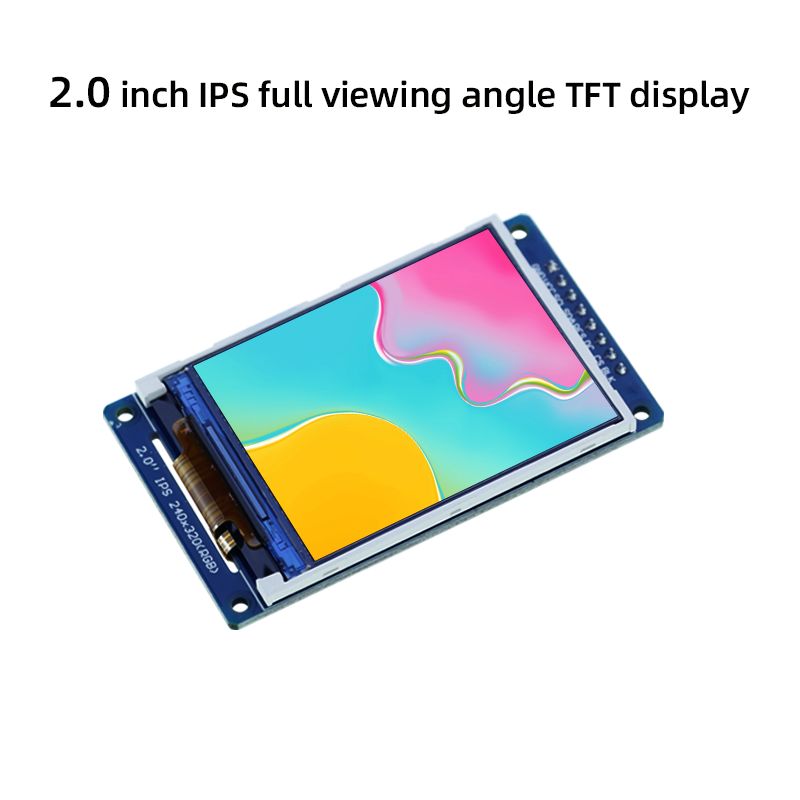

This product is a 2.0-inch IPS display module with a resolution of 320x240, an IPS full viewing angle panel, and a 360° viewing range. Using 4-wire SPl communication mode, the internal IC is ST7789. It combines Arduino and other microcontrollers to display the detected data such as temperature, humidity, weight, time, etc., and it can also display various graphics.

Features

• 2.0 inch IPS color screen, 240X320 HD resolution

• IPS full viewing angle panel, 360° viewing range

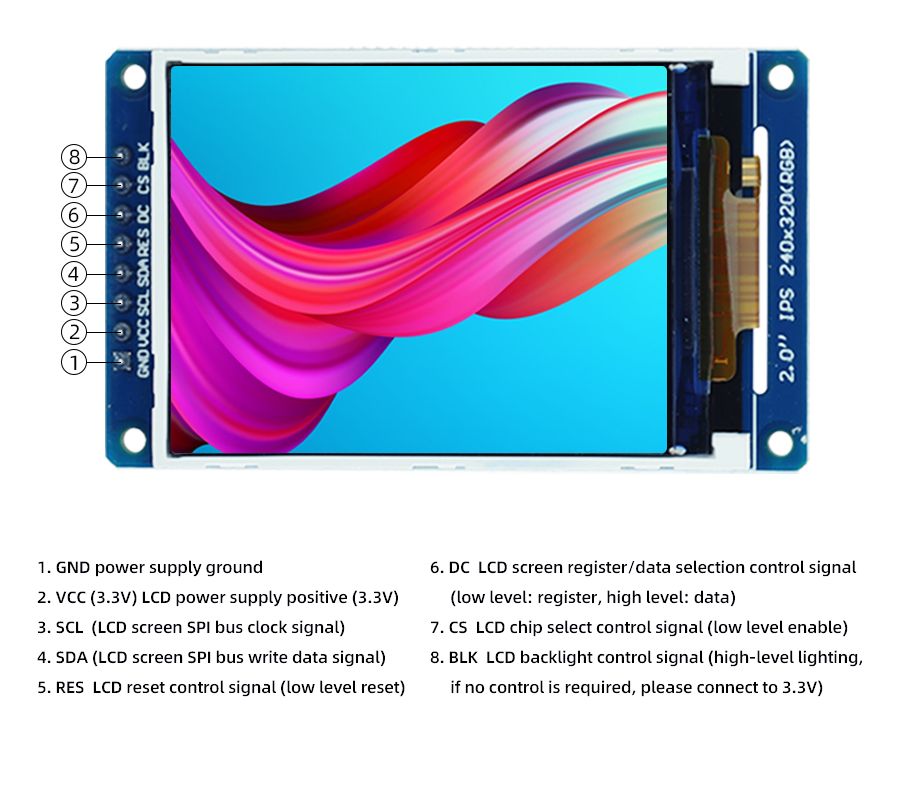

• Using 4-wire SPI serial bus, it only needs a few IOs to light up

• Provide a wealth of STM32 and C51 sample programs

[img-24896-left-desc_default]

Specification

• Size: 2.0(inch)

• Viewing angle: IPS full viewing angle

• Driver chip: ST7789V

• Resolution: 240*320

• Display interface: 4-wire SPI serial bus

• Touch type: no touch

• Effective display area (AA area): 30.60x40.80 (mm)

• Module PCB backplane size: 36.48x61.12 (mm)

• Working temperature: -10℃~60℃

• Product weight (including packaging): 15g

Package list

• 1* 2 inch display
