Description

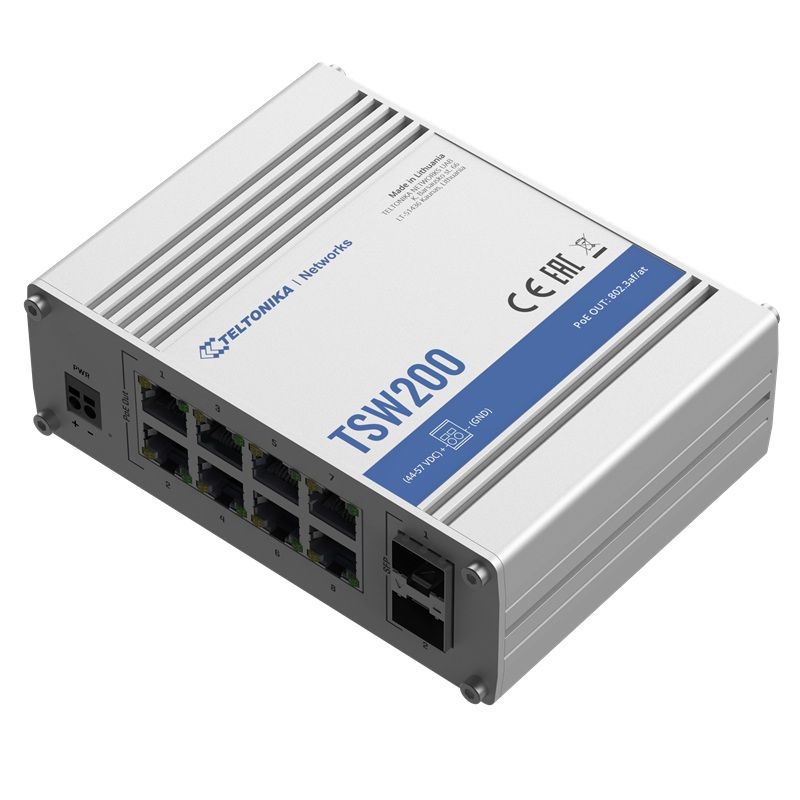

• TSW200 is industrial unmanaged switch from Teltonika Networks.

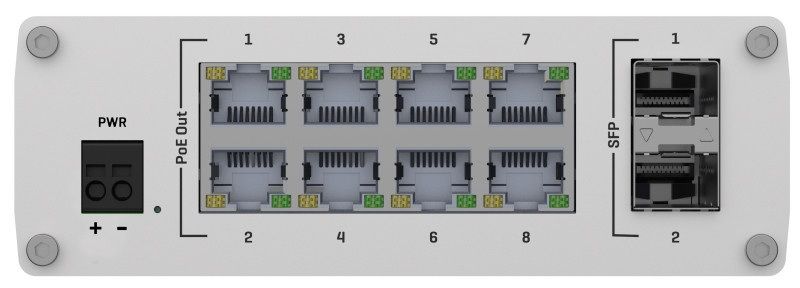

• TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.
• Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
• This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.

Key features

• POE+ - 8x PoE ports with 802.3af and 802.3at support
• SFP - 2 x SFP ports for long-range Fiber-optic communication
• ETHERNET - 8 x Gigabit Ethernet with speeds up to 1000 Mbps
• POWER BUDGET - Total power budget at PSE up to 240 W

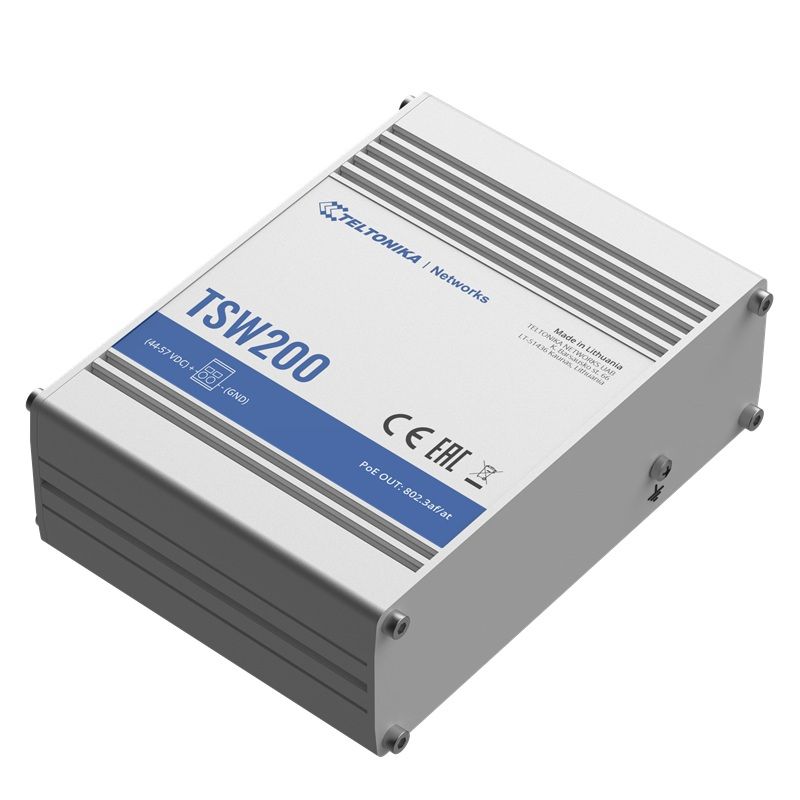

• DURABILITY - Rugged aluminium housing
• MOUNTING - DIN rail and surface mounting options

Specifications

HARDWARE

• Power connector: 2 pin industrial DC power socket
• Input voltage range: 7-57 VDC
• Input voltage range for PoE: 44-57 VDC
• Power consumption: Idle: 1.81W, Max: 5.5W (no PoE device connected)
• PoE standard: 802.3af/at (up to 30 W per port, total power budget - 240 W)
• Ethernet: 8 x 10/100/1000 Mbps Ethernet ports
• SFP: 2 x SFP ports for Optical interfaces
• Status LEDs: 16 x Ethernet, 1 x Power, 2 x SFP activity
• Ingress protection rating: IP30
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing with wall or DIN rail mounting option and grounding capability
• Dimensions: 132 x 44.2 x 95.1 mm

PERFORMANCE SPECIFICATIONS

• Bandwidth: Bandwidth 20 Gbps
• Packet buffer: 128 KB
• Jumbo frame support: 9216 bytes
• MAC address table size: 2K entries
• Auto MDI/MDI-X Cable Detection: Yes

Standard package contains

• TSW200
• QSG (Quick Start Guide)
• Packaging box

Note! Power supply is not included! Click here for purchase
