Description

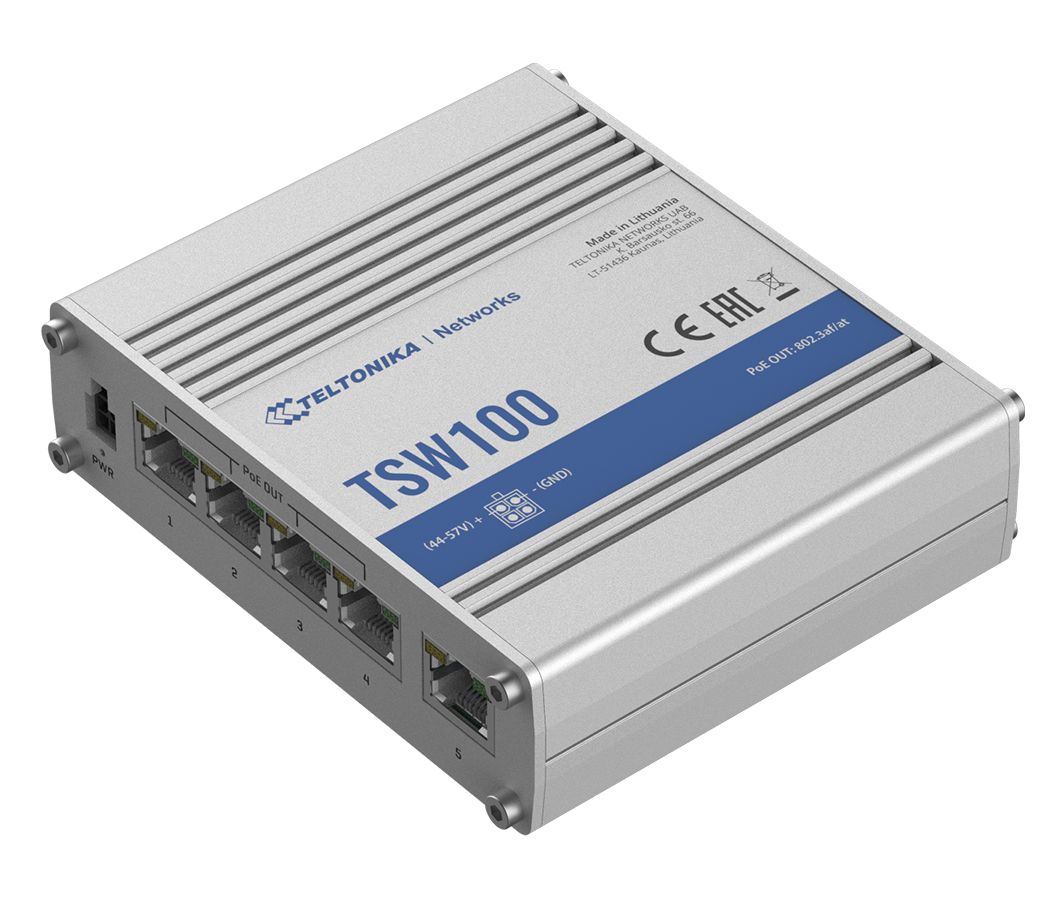

• TSW100 is the first industrial unmanaged switch from Teltonika Networks.
• Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).
• Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power.
• It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
• Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply.

Key features

• POE - 4 x PoE ports with 802.3af and 802.3at support
• DURABILITY - Rugged aluminium housing
• MOUNTING - DIN rail and surface mounting options
• POWER BUDGET - Total power budget at PSE up to 120 W
• ETHERNET - 5 x Gigabit Ethernet with speeds up to 1000 Mbps
• PLUG-N-PLAY - No additional configuration needed

Specifications

HARDWARE

• Power supply: 4 pin power socket, 7-57 VDC*
• Power consumption: Idle: < 2 W, Max: < 9 W (no PoE device connected)
• PoE standard: 802.3af/at (max 30 W per port, total power budget 120 W)

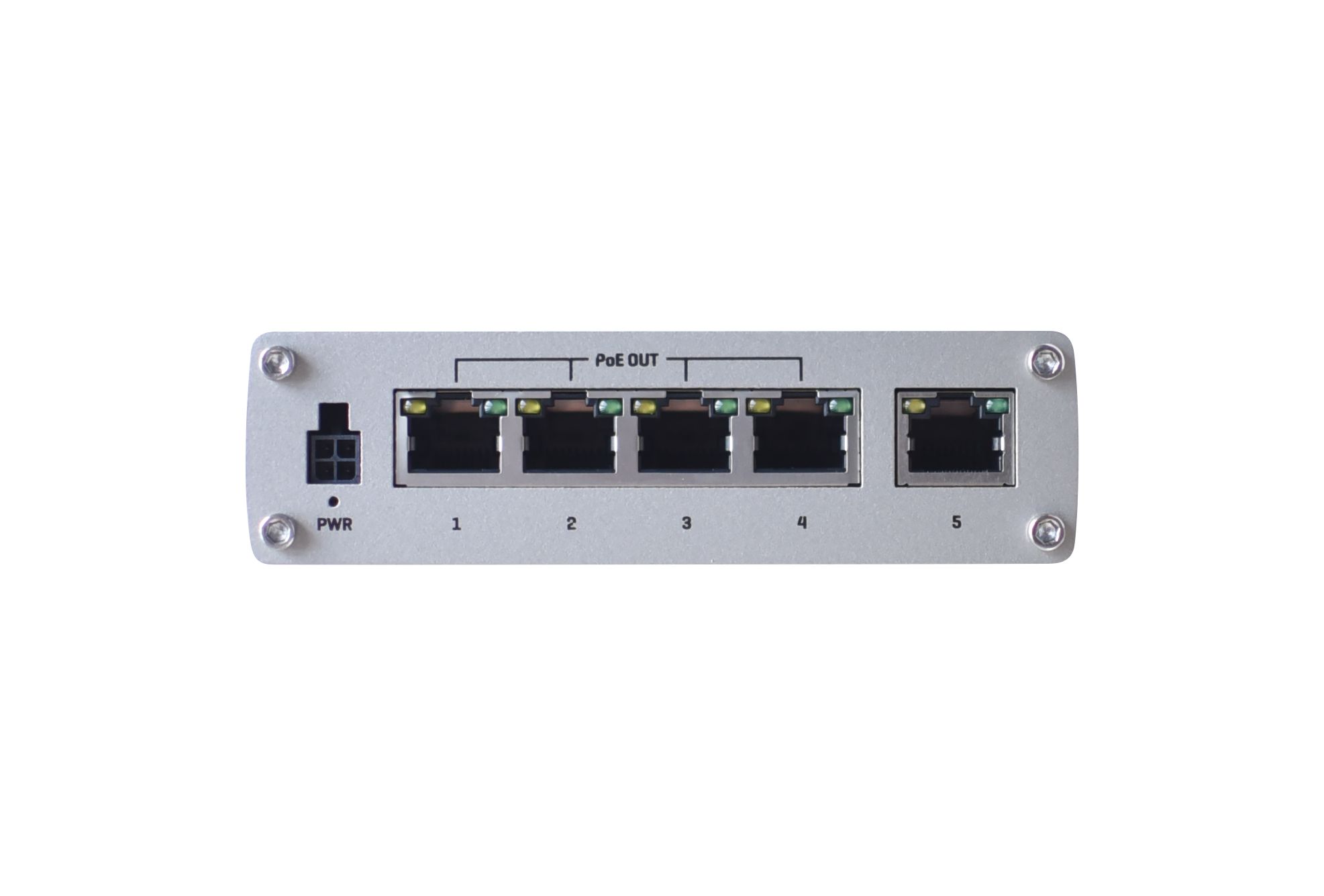

• Ethernet: 5 x 10/100/1000 Ethernet ports: 4 x PoE, 1 x Uplink
• Connectors: 1 x 4 pin DC, 5 x Ethernet
• Status LEDs: 10 x Ethernet, 1 x Power
• Ingress protection rating: IP30
• Operating temperature: -40 °C to 75 °C

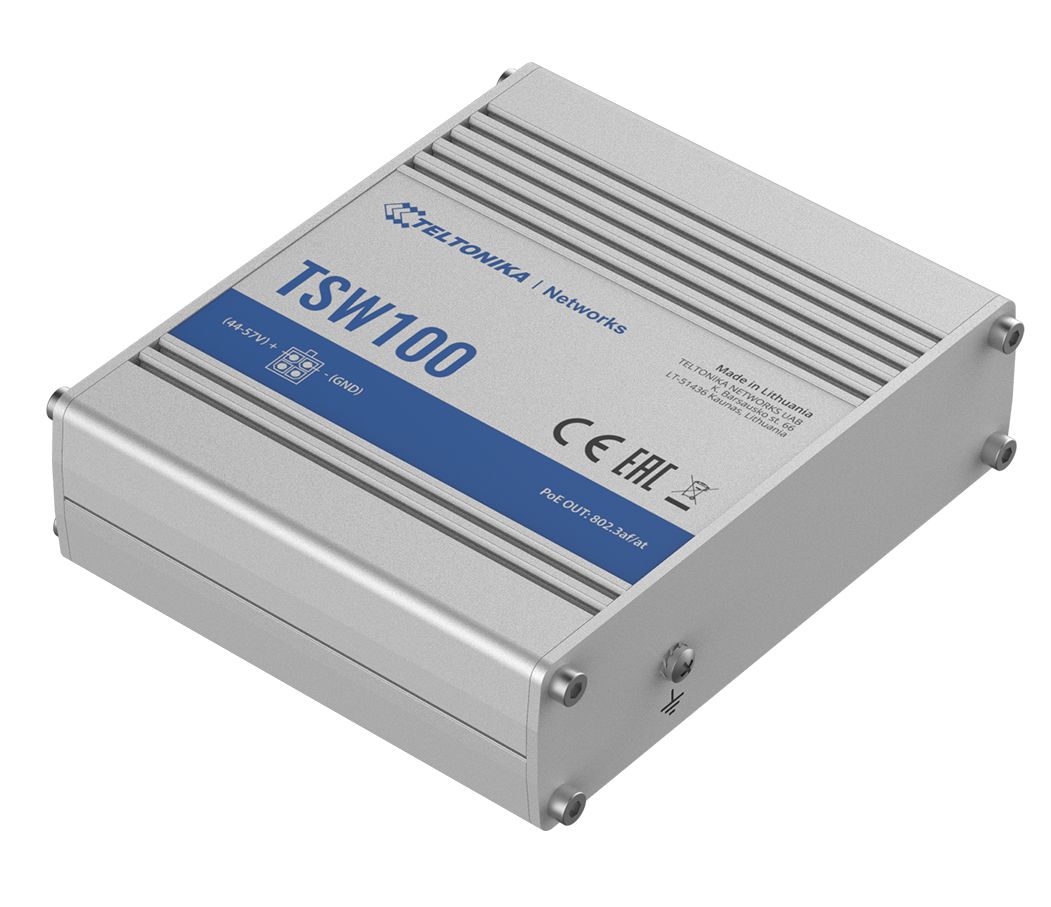

• Housing: Aluminium housing with wall or DIN rail mounting option and grounding capability
• Dimensions: 115 x 32 x 95 mm
• Weight: 340 g
• Installation: Desktop, wall or DIN Rail mountable (additional kit needed)

* PoE operates properly only when connected power supply outputs 44 V or higher voltage

 PERFORMANCE SPECIFICATIONS

• Bandwidth: Bandwidth 10 Gbps
• Packet buffer: 128 KB
• MAC address table size: 2K entries
• Auto MDI/MDI-X Cable Detection: Yes

Standard package contains

• TSW100
• 65 W PSU
• QSG (Quick Start Guide)
• Packaging box
