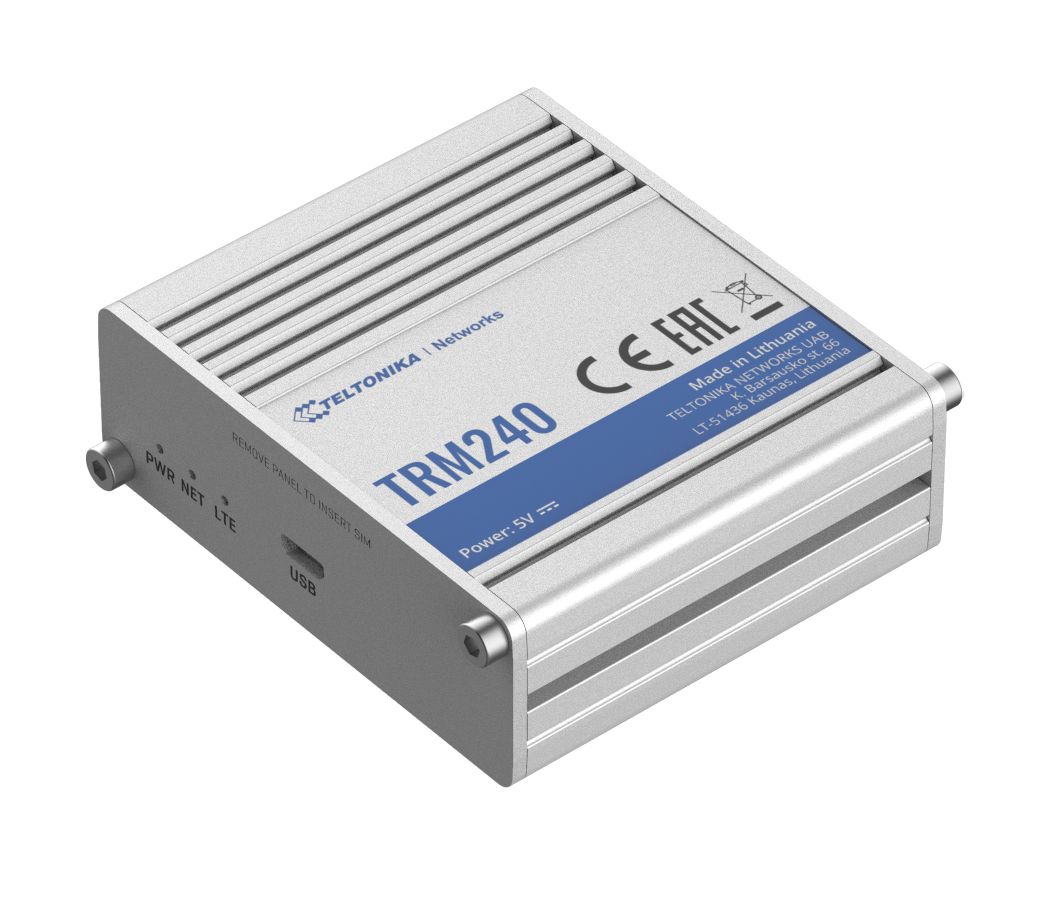

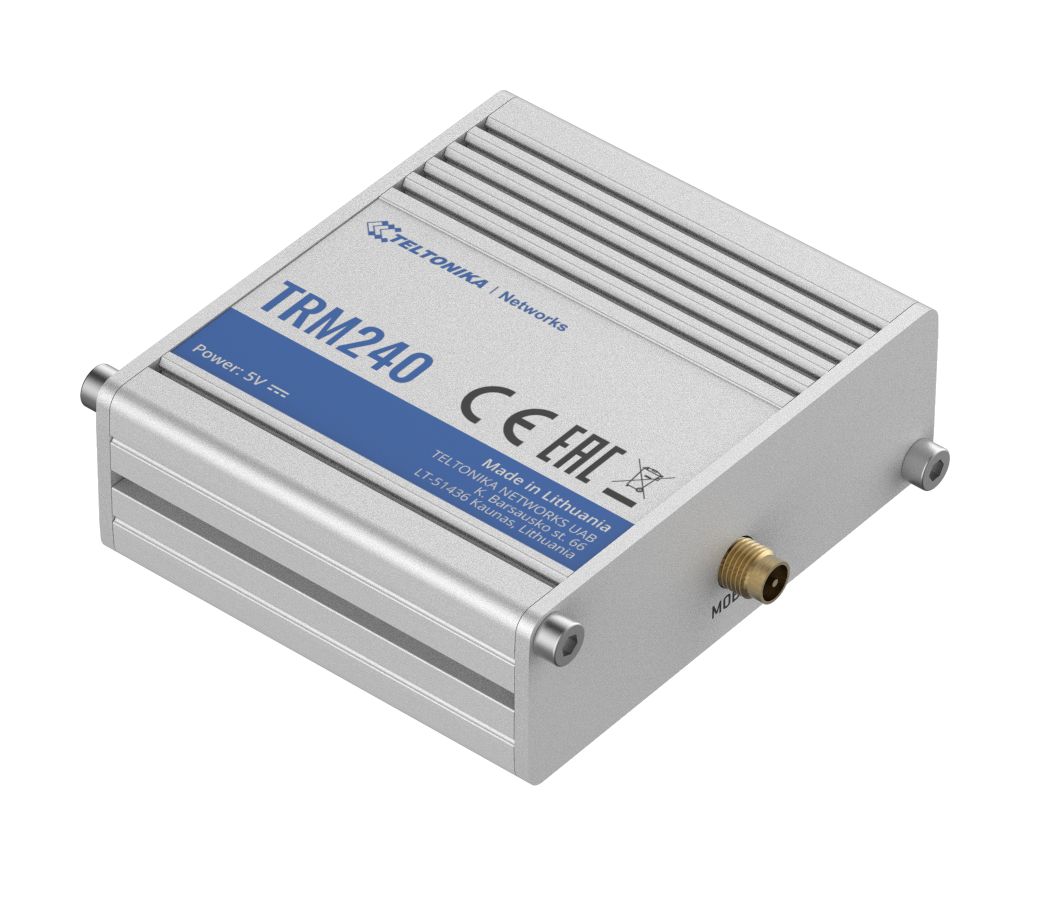

Teltonika TRM240 - teollisuuskäyttöön tarkoitettu USB LTE Cat 1 -modeemi, jossa on kestävä kotelo ja ulkoinen antenniliitin signaalin kattavuuden parantamiseksi.
Industrial grade cellular LTE Cat 1 modem with rugged aluminium housing is a compact and easy to use connectivity device that can provide cellular capabilities to equipment across all market segments.
It is backward compatible with 3G and 2G, therefore it is an optimal choice when it comes to large scale connectivity upgrades for Industrial or Public infrastructures. It offers a long and stable lifecycle and low power consumption important for IIoT projects.
TRM240 comes with a USB interface for power and communication.
Key features
CONNECTIVITY - 4G/LTE (Cat 1), 3G, 2G
DURABILITY - Rugged aluminium housing
USB - Interface for internet access
EFFICIENCY - Low power consumption
COMPACTNESS - Small size, easy installation
EASE OF USE - Controlled using Network manager
Hardware
Mobile: 4G/LTE (Cat 1), 3G, 2G
Powering option: microUSB, 5 VDC
SIM: 1 x Internal SIM holder (2FF)
Antenna connectors: 1 x SMA for mobile
USB: 1 x Micro USB slave
Status LEDs: 1 x LTE, 1 x Network, 1 x Power
Ingress protection rating: IP30
Operating humidity: 10 % to 90 % non-condensing
Operating temperature: -40 °C to 75 °C
Housing: Aluminium housing with DIN rail mounting option
Dimensions (W x H x D): 75 x 25 x 65 mm
Weight: 125 g
Software
Network manager:
Windows 7/8/8.1/10
Linux distributions
USB serial driver:
Windows 7/8/8.1/10
Windows CE 5.0/6.0
Linux 2.6~5.4
Android 4.x/5.x/6.x/7.x/8.x/9.x
RIL driver: Android 4.x/5.x/6.x/7.x/8.x/9.x
NDIS driver: Windows 7/8/8.1/10
Gobinet driver: Linux 2.6~5.4
QMI_WWAN driver: Linux 3.4~5.4
Control via AT commands: 3GPP TS27.007 and enhanced AT commands
