Description

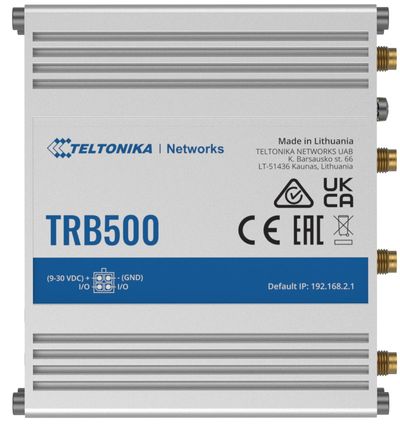

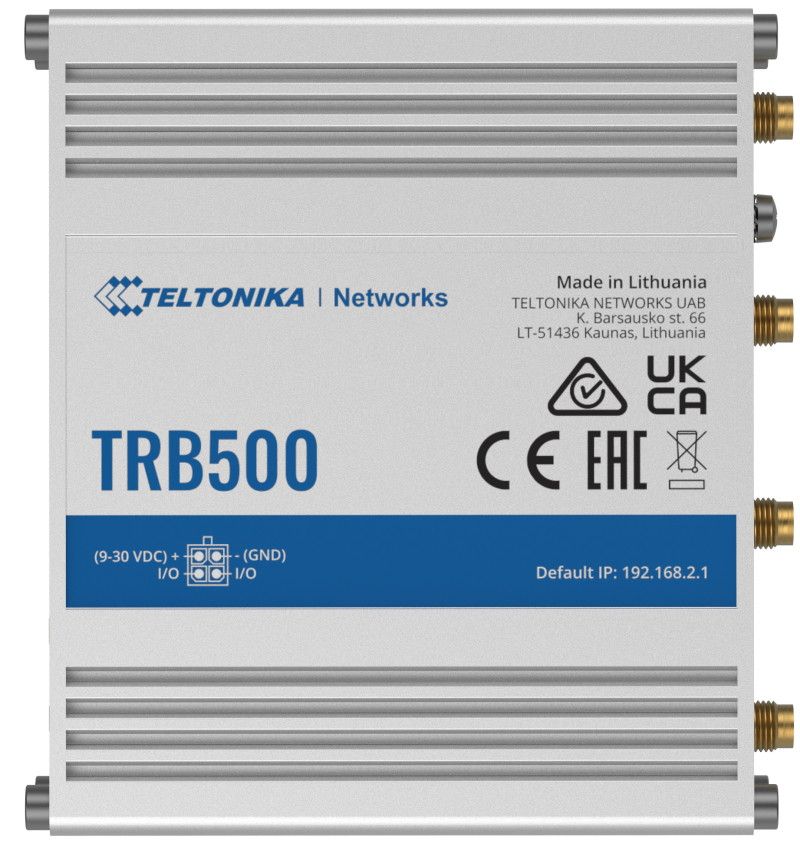

• The TRB500 gateway is a compact-sized and energy-efficient industrial gateway with a Gigabit Ethernet interface and two configurable I/Os, allowing high-level customization and implementation of a multitude of scenarios.
• This device enables 5G network speeds with ultra-low latency for mission-critical infrastructures and high data throughput, ensured by 4 external antennas that allow the use of 4x4 MIMO.
• TRB500 comes with the RutOS operating system, which provides advanced security features and compatibility with our Remote Management System (RMS) for optimized remote management and monitoring capabilities of large fleets of devices.

Key features

• 5G - Ultra-high cellular speeds of up to 1 Gbps
• GIGABIT ETHERNET - Reliable communication for high data throughput
• SA & NSA -Supports both architectures to leverage the 5G infrastructure
• COMPACTNESS - One of the smallest 5G gateways available in the market
• ULTRA-LOW LATENCY - Single-digit latency for mission-critical applications
• FUTURE-PROOFING - Backward compatible with 4G (LTE CAT 20) and 3G network technologies

Hardware

• Mobile 5G: Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2);
• Mobile 4G: LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
• CPU: Single core ARM Cortex A7, 1,5 GHz
• Flash Storage: 512 MB
• RAM: 256 MB

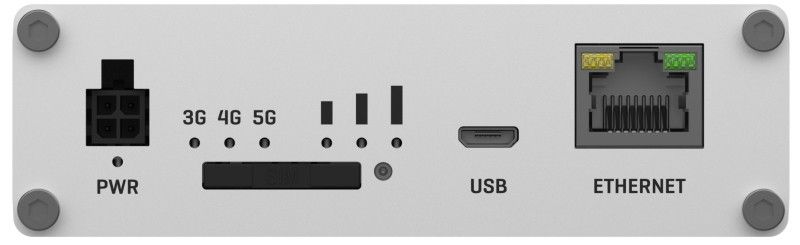

• Powering option: 4-pin power socket, 9-30 VDC
• SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

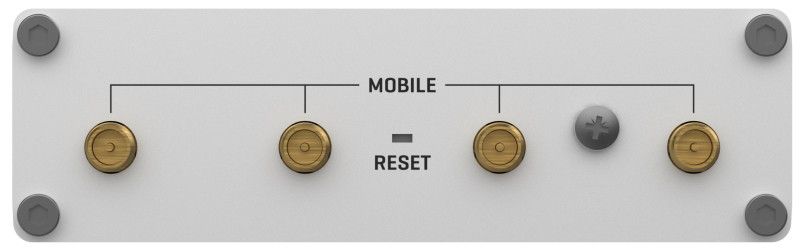

• Antenna connectors: 4 x SMA for Mobile
• Ethernet port: 1 x 10/100/1000 Mbps
• Inputs/Outputs: On 4-pin socket: 1 x Digital input, 1 x Digital open collector output
• Other: 1 x Micro USB slave, 1 x Grounding screw
• Status LEDs: 3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
• Operating temperature: -40° C to 75° C
• Housing: Aluminium housing, DIN rail (can be mounted on two sides), flat surface placement
• Dimensions (W x H x D): 100 x 30 x 93.4 mm
• Weight: 241g

Software

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
• Network features: Routing, Failover, Firewall, DHCP, DDNS, Load Balancing, VoIP passthrough, Connection monitoring
• Monitoring and Management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard, ZeroTier
• Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Security: Authentication, Pre-configured firewall rules, Attack prevention, Mobile quota control, WEB filter, Access control

Standard package contains

• TRB500 Gateway
• 9 W PSU
• 4 x Mobile antennas (swivel, SMA male)
• Micro-USB cable (0.8 m)
• Ethernet cable
• SIM Adapter kit
• QSG (Quick Start Guide)/RMS Flyer
• Packaging box
