Description

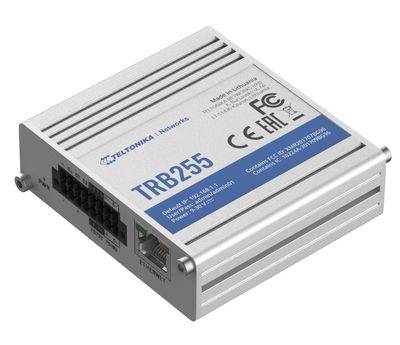

TRB255 can be used to integrate modern and legacy industrial equipment into one solution via RS232, RS485 & Ethernet interfaces.

This industrial LTE Cat M1 & NB-IoT gateway is backward compatible to EGPRS (2G) networks. It can still be used with 2G network, however in case it gets shut down, there is a possibility to switch to LPWAN connectivity options.

TRB255 has a wide range of industrial and networking features such as Modbus, SMS control, Firewall, OpenVPN and more.

This product is compatible with the Teltonika Networks Remote Management System (RMS).

Key features

• CONNECTIVITY - 4G/LTE (Cat M1), NB-IoT, 2G
• SERIAL PORTS - RS232/RS485 serial communication interfaces
• I/O - Multiple Inputs and Outputs for remote monitoring and control
• 9-30V - Wide range of supported power supply voltages
• DUAL SIM - With auto failover, backup WAN and other switching scenarios
• GNSS - Global Navigation Satellite System for location services with geofencing functionality

Hardware

• Mobile: 4G/LTE (Cat M1), NB-IoT, 2G
• CPU: Qualcomm, MIPS 24Kc, 650 MHz
• Memory: 16 MBytes Flash, 64 MBytes RAM
• Powering option: 16 pin terminal, 9-30 VDC
• SIM: 2 x Internal SIM holders (2FF)

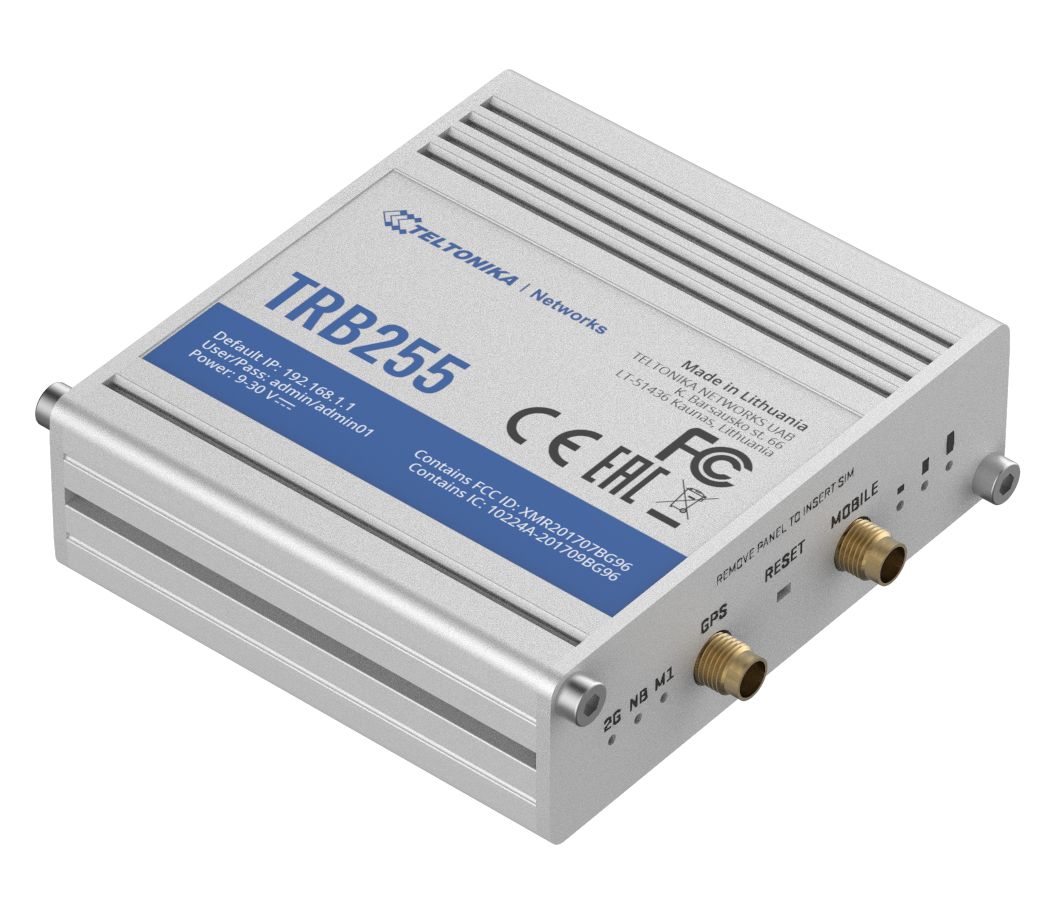

• Antenna connectors: 1 x SMA for mobile, 1 x SMA for GPS
• Ethernet: 1 x 10/100 Ethernet port
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• Inputs/Outputs: On 16 pin socket: 3 x Digital input/Digital open collector output (configurable), 1 x Analog input
• Serial: 1 x RS232, 1 x RS485
• Status LEDs: 3 x Connection type, 3 x Signal strength, 2 x Ethernet, 1 x Power
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing with DIN rail mounting option
• Dimensions (W x H x D): 83 x 25 x 74 mm
• Weight: 165 g

Software

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet
• Monitoring and Management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
• Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
• GNSS: NMEA forwarding, AVL, Geofencing
• Modbus: TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
• Serial: Console, Over IP, Modem, NTRIP, Modbus
• Administration: Multi user, Configuration profiles, Diagnostics, logs, Configuration backup

Standard package contains

• TRB255
• 9 W PSU
• 1 x Mobile antenna (swivel, SMA male)
• 1x GNSS antenna (adhesive, SMA male, 3 m cable)
• 16 pin terminal block
• 1 x hex key
• Ethernet cable (1.5 m)
• QSG (Quick Start Guide)
• RMS Flyer
• Packaging box
