Description

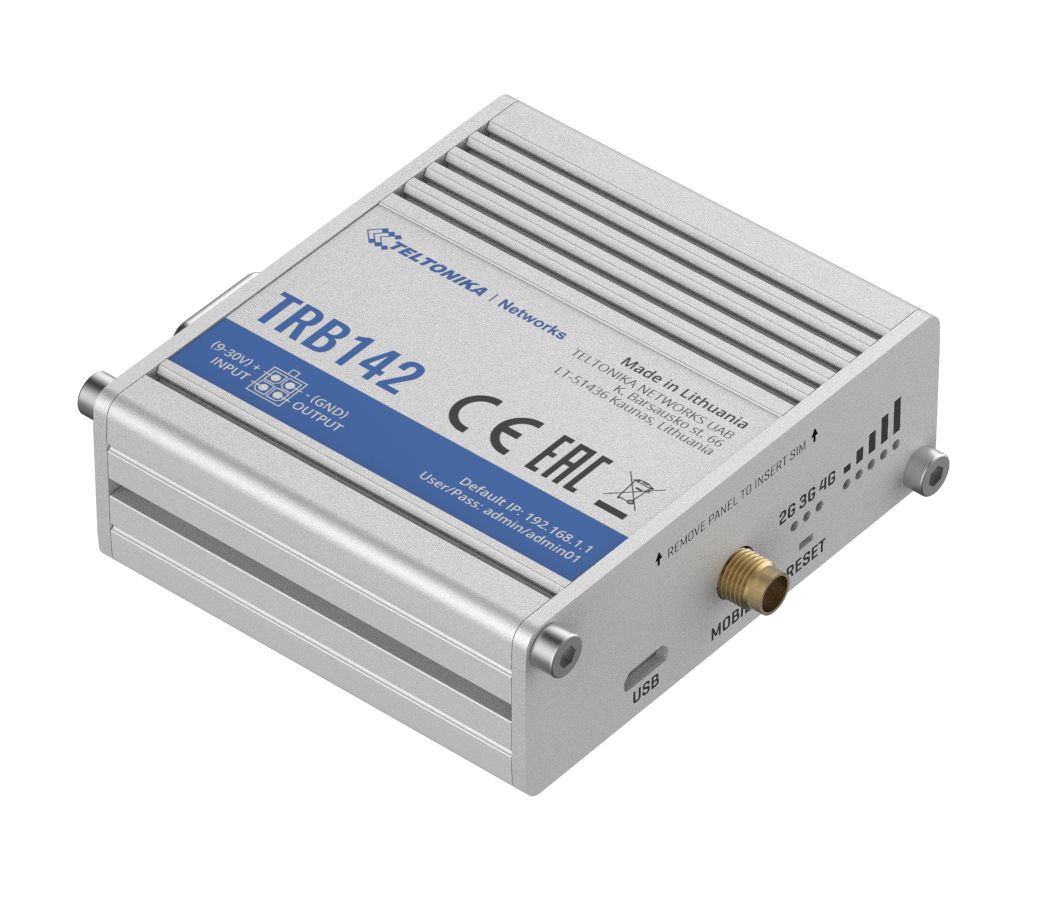

TRB142 comes with a widely used RS232 interface for remote device management.

It is equipped with mission-critical LTE Cat 1 capabilities and software based on OpenWRT, hence offering a high degree of customization.

Just like the other TRB series products, it provides a wide range of software features such as SMS control, VPN, IPsec, Firewall, and FOTA support.

This gateway is durable, offers a wide range of power supply voltages, and is compatible with Teltonika Networks Remote Management System (RMS).

Key features

• CONNECTIVITY - 4G/LTE (Cat 1), 3G, 2G
• SERIAL PORT - Equipped with RS232 for serial communication
• COMPACTNESS - Small size, easy installation
• DURABILITY - Rugged aluminum housing
• 9-30V - Wide range of supported power supply voltages
• RMS - Compatible with Teltonika Remote Management System

Hardware

• Mobile: 4G/LTE (Cat 1), 3G, 2G
• CPU: Qualcomm, ARM Cortex A7, 1.2 GHz
• Memory: 512 MBytes Flash (70 MBytes for userspace), 128 MBytes RAM (50 MBytes for userspace)
• Powering option: 4 pin power socket, 9-30 VDC
• SIM: 1 x Internal SIM holder (2FF)
• Antenna connectors: 1 x SMA for mobile
• Inputs/Outputs: On 4 pin socket: 2 x Digital input/Digital open collector output (configurable)
• Serial: 1 x RS232
• Other: 1 x Micro USB slave
• Status LEDs: 3 x Connection type, 5 x Signal strength, 1 x Power
• Operating temperature: -40° C to 75° C
• Housing: Aluminium housing with DIN rail mounting option
• Dimensions (W x H x D): 75 x 25 x 65 mm
• Weight: 135 g

Software

• Operating system: RutOS
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet
• Monitoring and Management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
• Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Modbus: TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
• Serial: Console, Over IP, Modem, NTRIP, Modbus

Standard package contains

• TRB142
• 5 W PSU
• 1 x LTE antenna (magnetic mount, SMA male, 3 m cable)
• Micro-USB cable (0.8 m)
• 1 x hex key
• QSG (Quick Start Guide)
• RMS flyer
• Packaging box
