Description

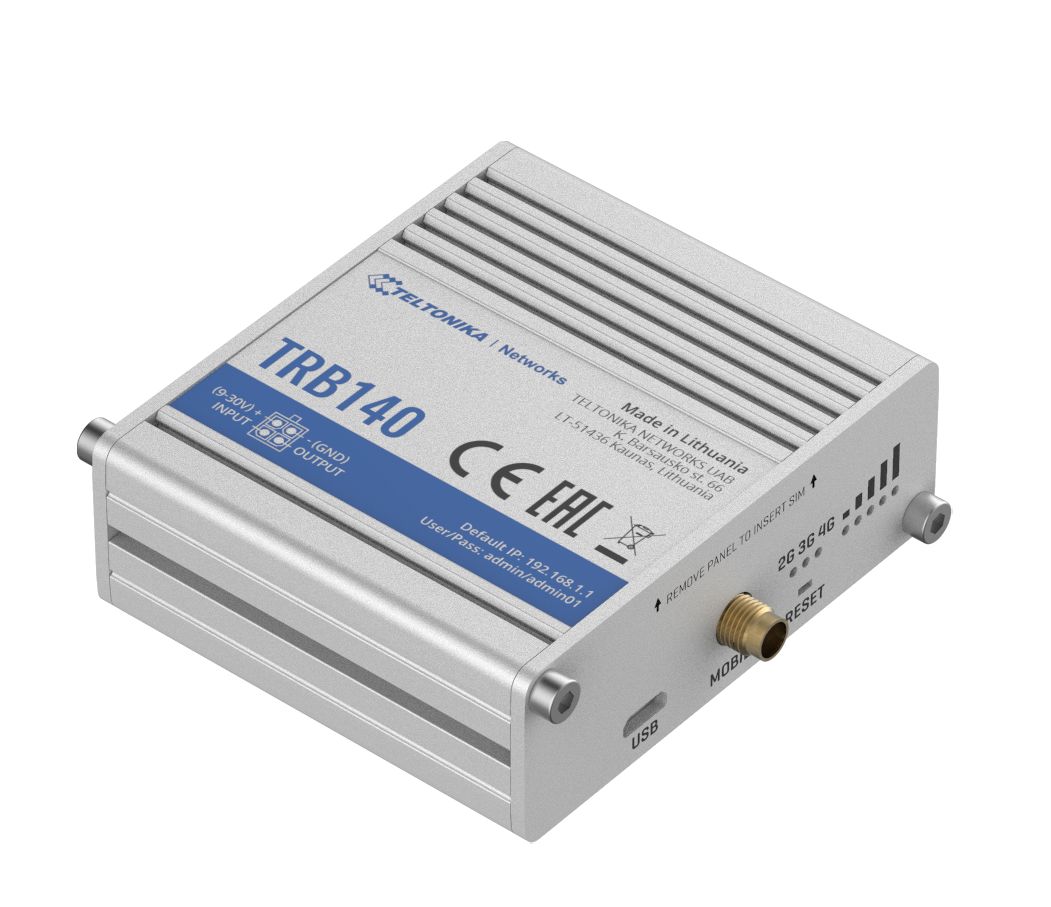

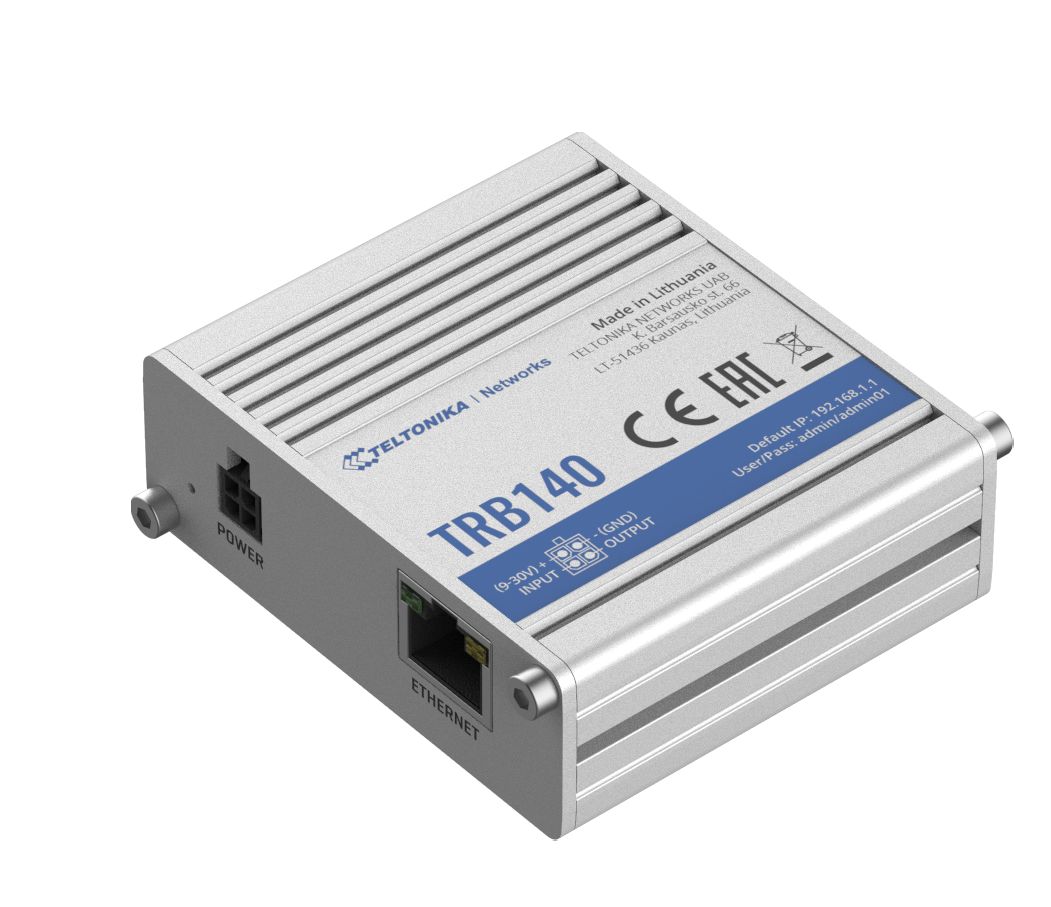

TRB140 is an ultra-small, lightweight, and energy-efficient industrial gateway equipped with mission-critical LTE Cat 4 capabilities, Gigabit Ethernet interface, digital Inputs/Outputs, and micro-USB port.

Because of its compact design, this product is perfect for projects and applications where a sole gadget requires reliable internet connectivity.

TRB140 is specially engineered to be used in the industrial sector and has a wide range of software security features, such as SMS control, Firewall, Open VPN, IPsec, Remote Management System (RMS), and FOTA support.

Key features

• CONNECTIVITY - 4G/LTE (Cat 4), 3G, 2G
• 9-30V - Wide range of supported power supply voltages
• DURABILITY - Rugged aluminium housing
• COMPACTNESS - Small size, easy installation
• RUTOS - Easy to use, secure and feature rich OpenWRT based operating system
• RMS - Compatible with Teltonika Remote Management System

Hardware

• Mobile: 4G/LTE (Cat 4), 3G, 2G
• CPU: Qualcomm, ARM Cortex A7, 1.2 GHz
• Memory: 512 MBytes Flash (70 MBytes for userspace), 128 MBytes RAM (50 MBytes for userspace)
• Powering option: 4pin power socket, 9-30 VDC
• SIM: 1 x Internal SIM holder (2FF)
• Antenna connectors: 1 x SMA for mobile
• Ethernet: 1 x 10/100/1000 Ethernet port
• Intputs/Outputs: On 4pin socket: 2 x Digital input/Digital open collector output (configurable)
• Other: 1 x Micro USB slave
• Status LEDs: 3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing with DIN rail mounting option
• Dimensions (W x H x D): 75 x 25 x 65 mm
• Weight: 134 g

Software

• Operating system: RutOS
• Mobile features: Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet
• Firewall: Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers, Unlimited firewall configuration via CLI
• Security: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP
• Monitoring and management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
• Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• SMS features: SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging

Standard package contains

• TRB140
• 5 W PSU
• 1 x LTE antenna (magnetic mount, SMA male, 3 m cable)
• Micro-USB cable (0.8 m)
• 1 x hex key
• LAN cable
• QSG (Quick Start Guide)
• RMS Flyer
• Packaging box
