Description

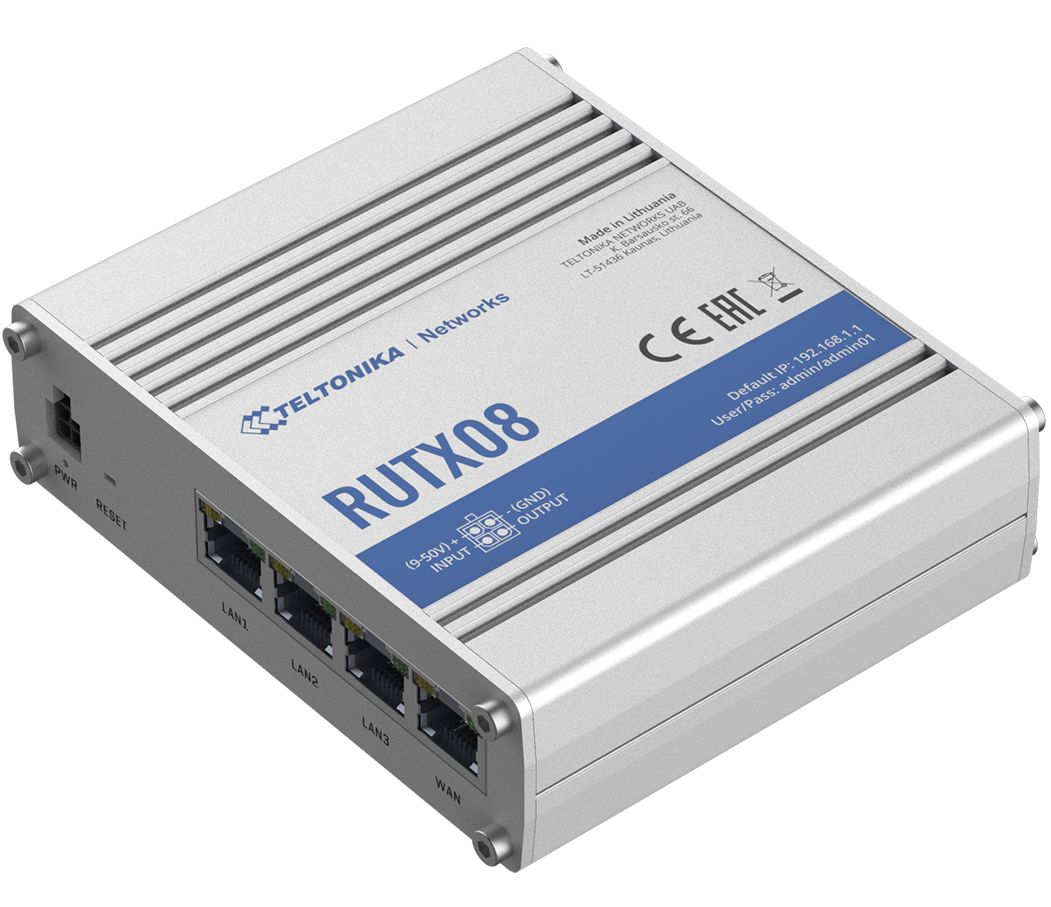

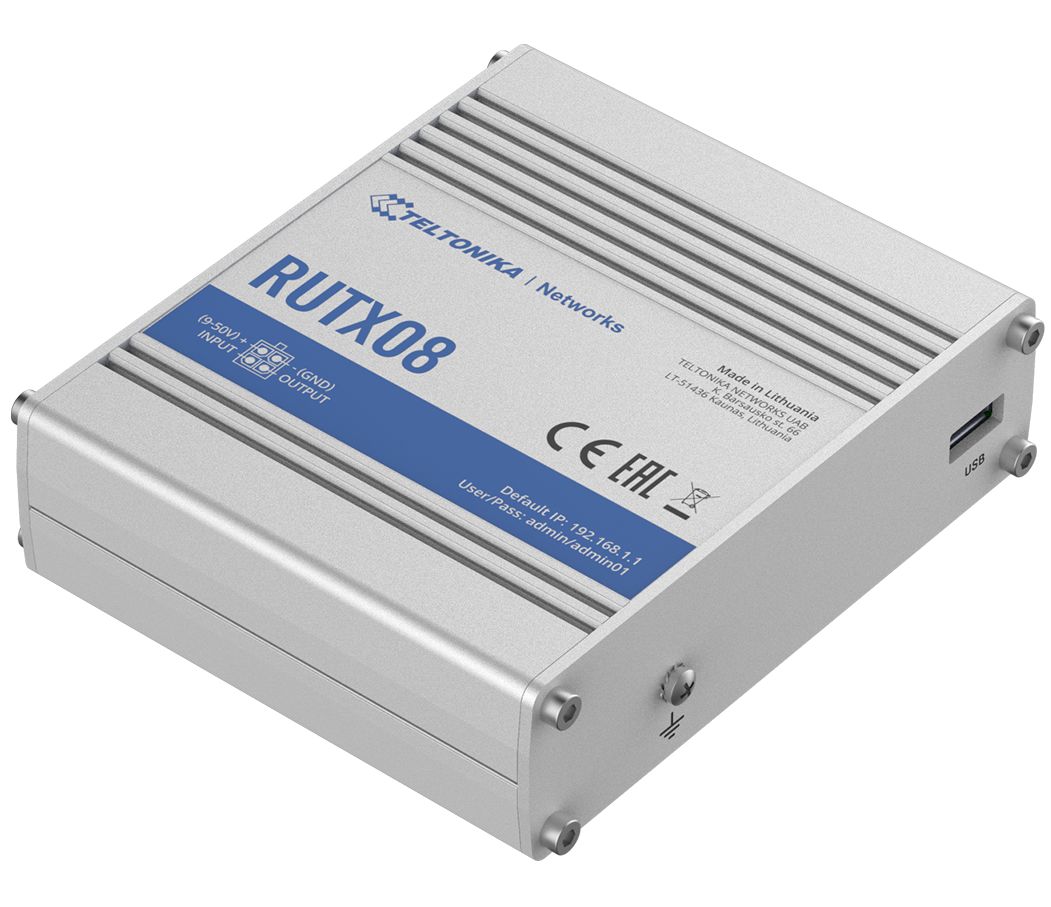

• RUTX08 is a durable and powerful Ethernet-to-Ethernet industrial VPN router that runs on RutOS - an advanced OpenWRT based operating system.
• It has four Gigabit Ethernet ports with speeds up to 1000 Mbps.
• A rugged aluminum housing and industrial networking protocol support make RUTX08 a perfect choice for professional applications.
• These powerful specifications combined with RutOS software features, such as multiple supported VPN services, advanced Firewall, and Remote Management System (RMS) make this device a superb performer, where no cellular or Wi-Fi connectivity is required.

Key features

• GIGABIT ETH - 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported
• I/O & USB - Digital Input / Output for remote monitoring and control and USB 2.0 interface
• 9-50 V - This router supports a wide range of power supply voltage for versatile integration
• PROTOCOLS - Multiple protocols supported including MQTT, Modbus TCP, BGP, GRE
• SECURITY - Firewall and numerous VPN services including OpenVPN, IPsec, PPTP, L2TP & DMVPN
• RMS - Compatible with Teltonika Remote Management System

Specifications

HARDWARE

• CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz
• Memory: 256 MBytes Flash, 256 MBytes RAM
• Powering option: 4pin power socket, 9-50 VDC

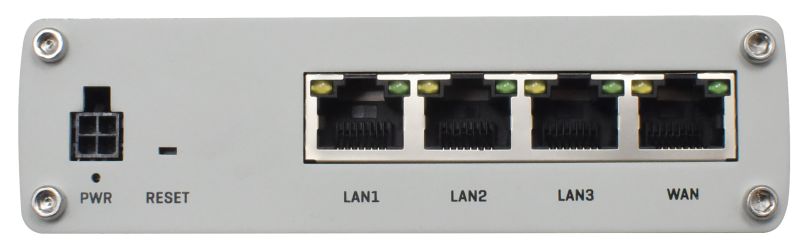

• Ethernet: 4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
• PoE (passive): passive PoE over spare pairs. Possibility to wake up via LAN port, not compatible with IEEE 802.3af and 802.3at standards.
• Inputs/Outputs: On 4pin socket: 1 x Digital input, 1 x Digital open collector output
• Other: 1 x USB Host
• Status LEDs: 8 x Ethernet, 1 x Power
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing with DIN rail mounting option and grounding capability
• Dimensions (W x H x D): 115 x 32 x 95 mm
• Weight: 345 g

SOFTWARE

• Operating system: RutOS (OpenWrt based Linux OS)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE,
• DHCP, Telnet
• Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
• Firewall: Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT
• helpers, Unlimited firewall configuration via CLI
• Security: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention),
• Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
• Monitoring and management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging
• Administration: Multi user, Configuration profiles, Diagnostics, logs, Configuration backup

Standard package contains

• Router RUTX08
• 18 W PSU
• Ethernet cable (1.5 m)
• QSG (Quick Start Guide)
• RMS Flyer
• Packaging box

Links

• RUTX08 product page
• RUTX08 Wiki page
