Huom!

Tämä tuote on EOL. Saatavuutta on vielä 31.7.2023 asti tilausten muodossa. Ohjelmistopäivityksiä tarjotaan 30.6.2024 ja kriittisiä tietoturvapäivityksiä aina 31.12.2025 asti. Korvaavat mallit ovat RUT951 ja RUT901.

Description

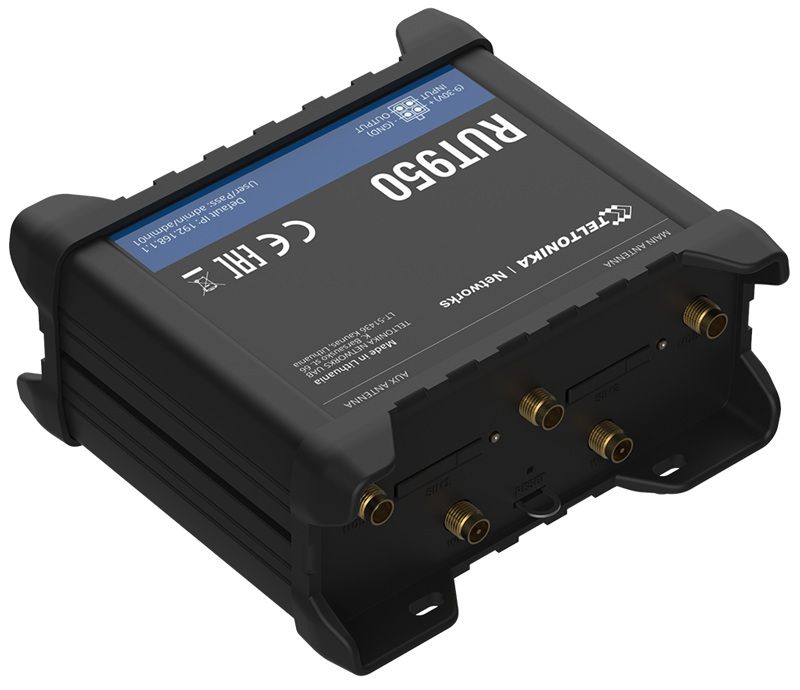

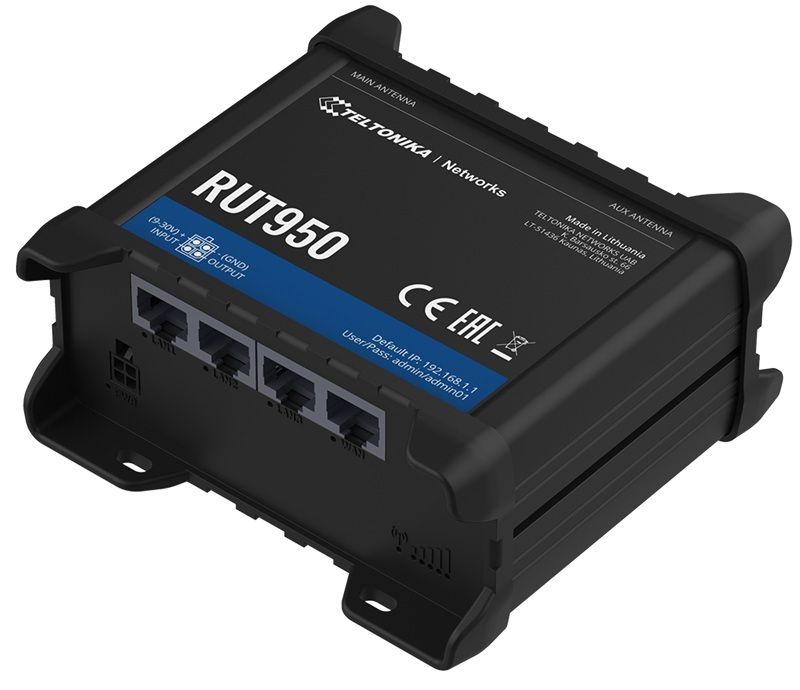

• RUT950 is a high-performance industrial 4G LTE Wi-Fi router designed as a Main/Backup internet source and guarantees a reliable internet connection with high data throughput and data redundancy.
• Compatible with the Teltonika Networks Remote Management System (RMS) for easy and secure monitoring.
• It has four Ethernet ports, two external SIM holders, digital I/O, and signal strength status LED indicators.
• Powered by RutOS - a unified operating system for all Teltonika Networks routers, this device is highly secure and customizable.

Key features

• Connectivity - 4G/LTE (Cat 4), 3G, 2G
• Dual SIM - With auto failover, backup WAN and other switching scenarios
• WAN failover - Automatic switching to available backup connection
• Ethernet - 4x Ethernet interfaces with VLAN functionality
• WiFi - Wireless Access Point with Hotspot functionality
• RMS - Compatible with Teltonika Remote Management System

Hardware

• Mobile: 4G/LTE (Cat 4), 3G, 2G
• CPU: Atheros, MIPS 74Kc, 550 MHz
• Memory: 16 MBytes Flash, 128 MBytes RAM
• Powering option: 4 pin power socket, 9-30 VDC
• SIM: 2 x External SIM holders (2FF)
• Antenna connectors: 2 x SMA for mobile, 2 x RP-SMA for WiFi
• Ethernet: 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
• WiFi: IEEE 802.11b/g/n, Access point (AP), Station (STA)
• Inputs/Outputs: On 4 pin socket: 1 x Digital input, 1 x Digital open collector output
• Status LEDs: 1 x Bi-Color connection type, 5 x Signal strength, 4 x Ethernet, 1 x Power
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing with DIN rail mounting option, plastic panels with flat mounting option
• Dimensions (W x H x D): 109 x 50 x 103 mm
• Weight: 263 g

Note! This model is equipped with Quectel cellular module.

Software

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
• Network: Failover (Network backup), VLAN, QoS, Load Balancing
• Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, NHRP), Routing rules
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP
• Monitoring and management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
• Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
• Supported Hotspot platforms: IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
• SMS features: SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email,
  SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging

Standard package contains

• Router RUT950
• 9 W PSU
• 2 x LTE antennas (swivel, SMA male)
• 2 x WiFi antennas (swivel, RP-SMA male)
• SIM Adapter kit
• Ethernet cable (1.5 m)
• RMS Flyer
• QSG (Quick Start Guide)
• Packaging box

Links

• RUT950 product page
• RUT950 Wiki page

Video
