Description

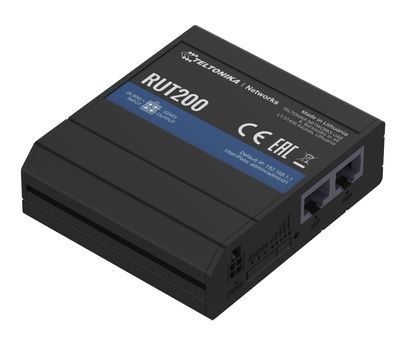

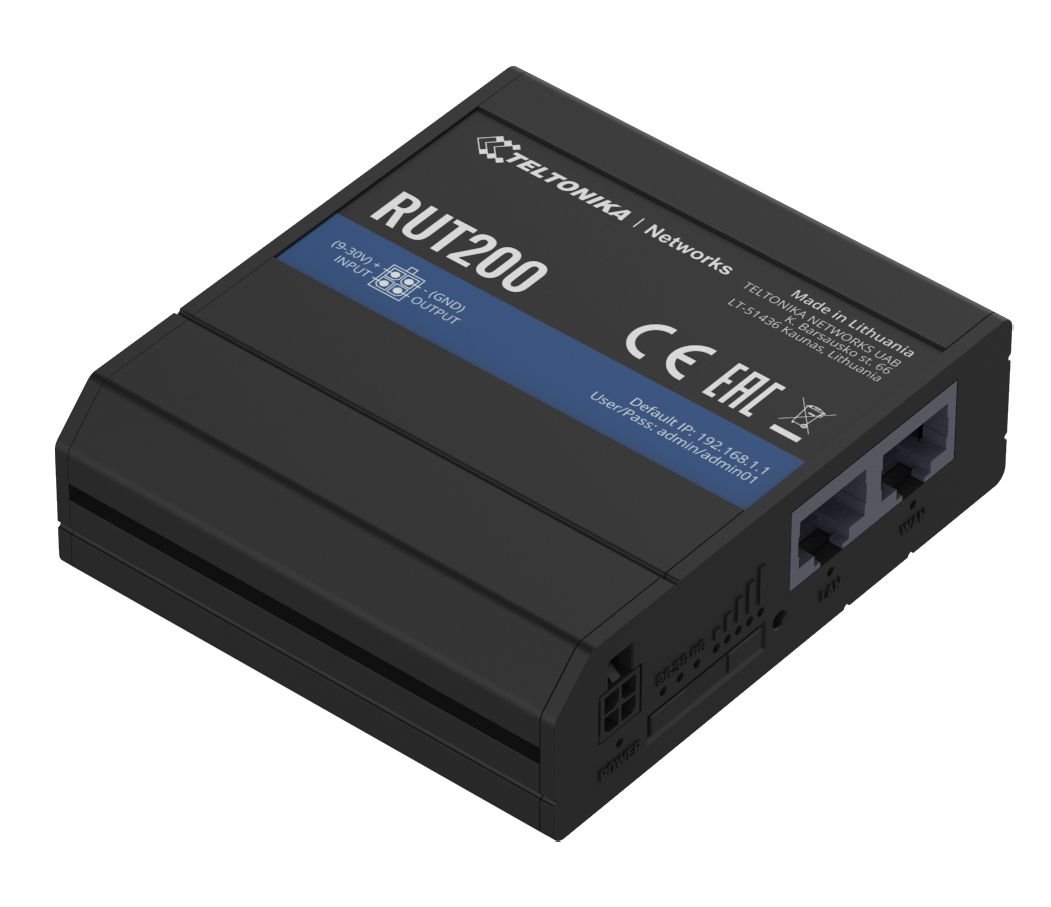

• RUT200 brings the top-rated features of our all-time bestseller RUT240 and is compatible with networks in Asia, CIS, the Middle East, Africa, and South America.
• Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, this model is perfect to quickly set up primary and backup connectivity with remote management capabilities.
• Due to its compact size, industrial design, and I/Os, this model is very suitable in manufacturing, automation, transportation, and other industrial application scenarios that require mission-critical connectivity in rigorous conditions.

Key features

• CONNECTIVITY - 4G/LTE (Cat 4), 3G, 2G
• WI-FI - Wireless Access Point with Hotspot functionality
• WAN FAILOVER - Automatic switching to available Backup connection
• RMS - For remote management, access & VPN services

Specifications

HARDWARE

• Mobile: 4G/LTE (Cat 4), 3G, 2G
• CPU: Mediatek MIPS 24Kc 580 MHz
• Storage: 16 MB Flash
• Memory: 128 MB RAM
• Powering option: 4pin power socket, 9-30 VDC
• SIM: 1 x External SIM holder (2FF)

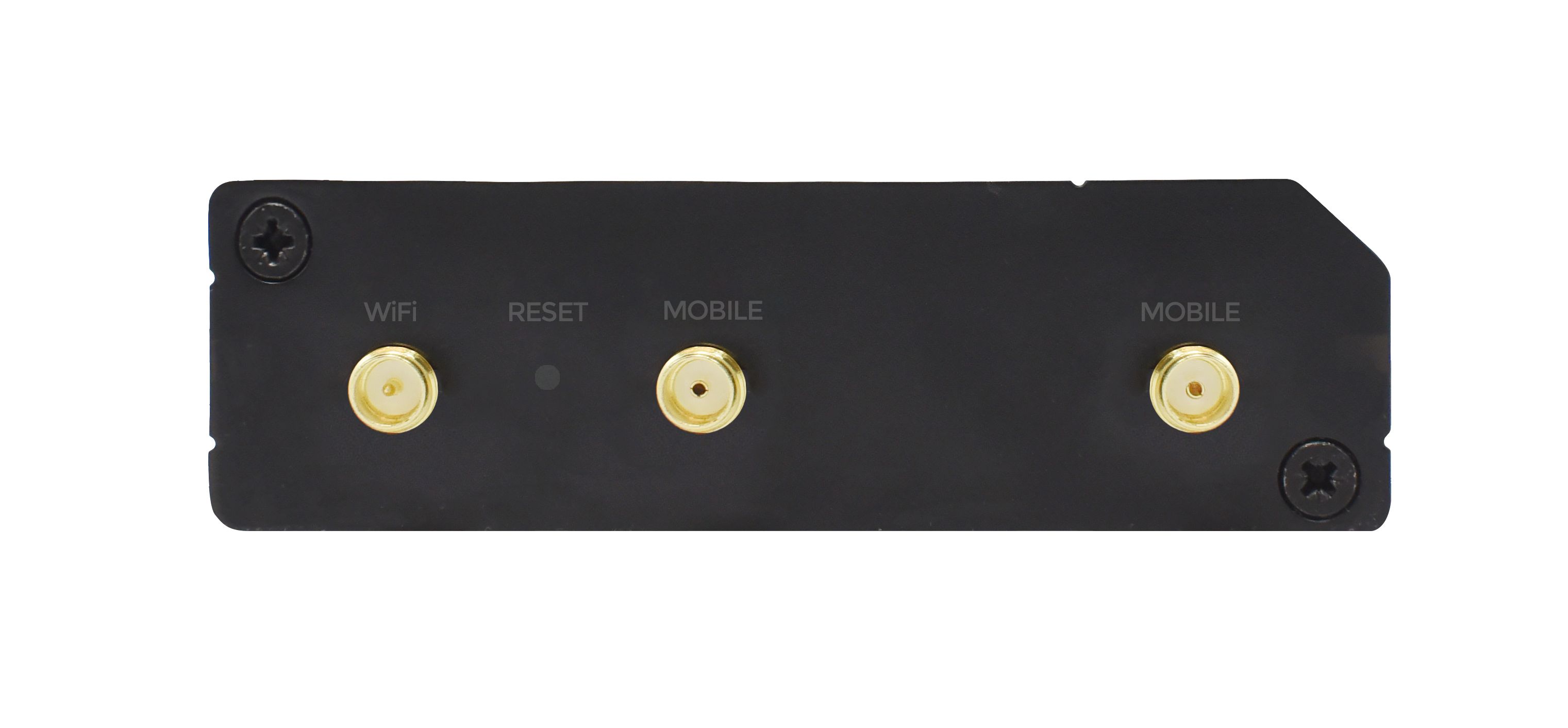

• Antenna connectors: 2 x SMA for mobile, 1 x RP-SMA for WiFi

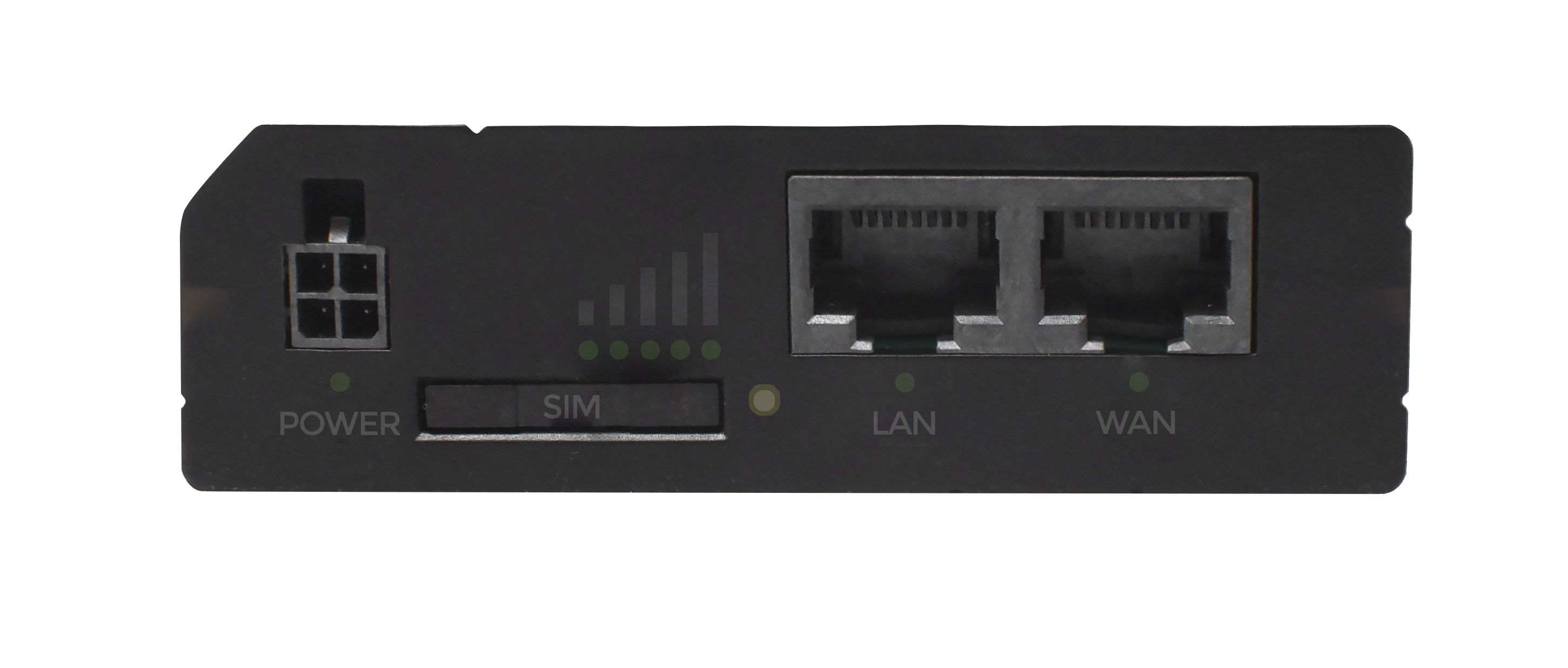

• Ethernet: 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
• WiFi: IEEE 802.11b/g/n, Access point (AP), Station (STA)
• Inputs/Outputs: On 4pin socket: 1 x Digital input, 1 x Digital open collector output
• Status LEDs: 3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing with DIN rail mounting option, plastic panels
• Dimensions (W x H x D): 83 x 25 x 74 mm
• Weight: 125 g

Note! This model is equipped with Meig cellular module - 6.6.2023

SOFTWARE

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Auto APN, Band lock
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
• Network: Failover (Network backup), VLAN, QoS, Load Balancing
• Security: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard
• Monitoring and Management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• SMS features: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging

POWER

• Connector: 4-pin industrial DC power socket
• Input voltage range: 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
• PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
• Power consumption: < 6.5 W Max

Standard package contains

• Router RUT200
• 9 W PSU
• 2 x LTE antennas (swivel, SMA male)
• 1 x WiFi antenna (swivel, RP-SMA male)
• QSG (Quick Start Guide)
• Packaging box
