PRODUCT DETAILS

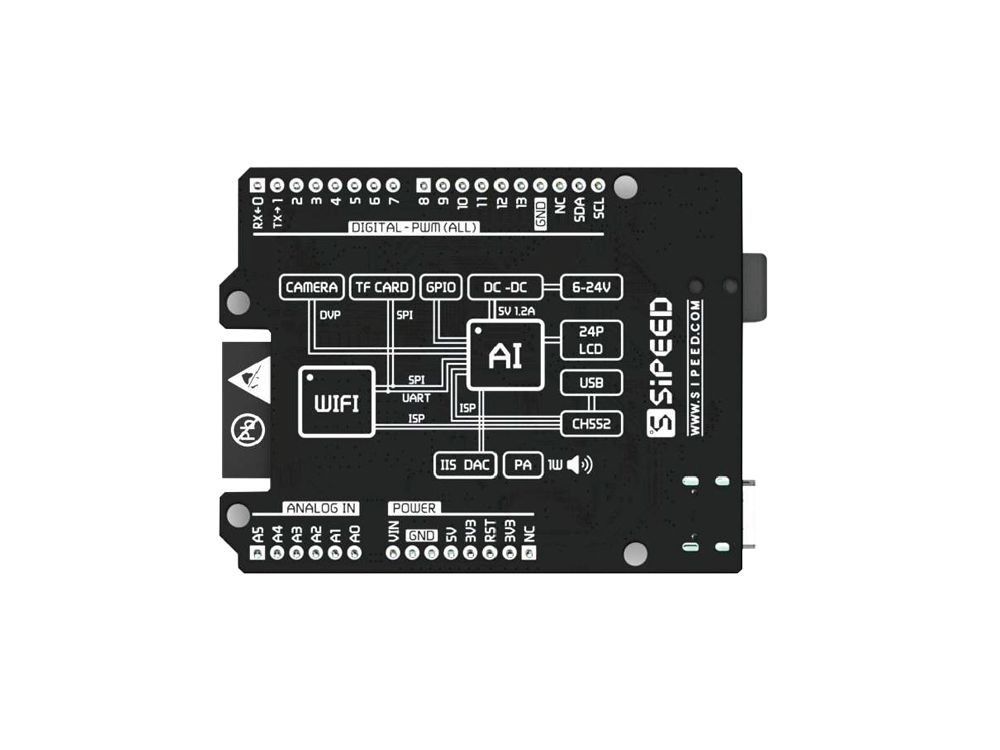

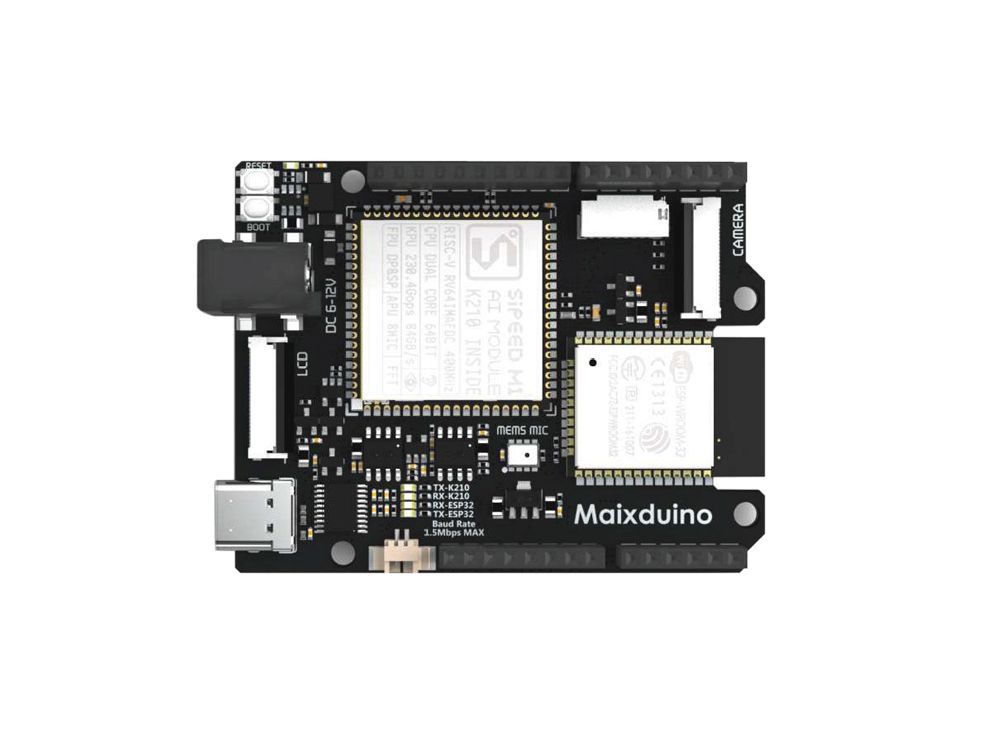

Based on MAIX Module, the Maixduino is a RISC-V 64 development board for AI + IoT applications. Different with other Sipeed MAIX dev. boards, Maixduino was designed in an Arduino Uno form factor, with ESP32 module on board together with MAIX AI module.

Features

• CPU: RISC-V Dual Core 64bit, with FPU; 400MHz neural network processor
• QVGA@60FPS/VGA@30FPS image identification
• Onboard ESP32 module support 2.4G 802.11. b/g/n and Bluetooth 4.2
• Arduino Uno form factor, Arduino compatible interface
• Onboard omnidirectional I2S digital output MEMS Microphone
• 24P 0.5mm FPC connector for DVP Camera
• 8bit MCU LCD 24P 0.5mm FPC connector
• Support self-elastic micro SD card holder
• Reset and boot button; 3W DAC+PA Audio output
• Just connect the USB Type-C cable to complete the download
• Machine vision based on convolutional neural network
• High performance microphone array processor for machine hearing
• Support MaixPy IDE, Arduino IDE, OpenMV IDE, and PlatformIO IDE
• Support Tiny-Yolo, Mobilenet and TensorFlow Lite for deep learning

MAIX is Sipeed' s purpose-built product series designed to run AI at the edge. Move AI models from cloud down to devices on the edge of the network where they can run faster, at lower cost, and with greater privacy.

MAIX isn't just a hardware solution, it combines custom hardware, open software, and state-of-the-art AI algorithms. Different kinds of dev. boards, kits, peripherals as well as wide compatibility enable rapid and agile prototype development, make AIoT projects much easier. And thanks to MAIX' s performance, small footprint, low power, and low cost, it enables the broad deployment of high-quality Edge AI.

Applications

•  Smart Home applications like robot cleaners, smart speakers, electronic door locks, household monitoring etc.
•  Medical Industry applications like Auxiliary diagnosis and treatment, medical image recognition, emergency alarm etc.
•  Smart Industry applications like industrial machinery, intelligent sorting, monitoring of electrical equipment, etc.
•  Education applications like educational robots, intelligent interactive platforms, educational efficiency inspection, etc.
•  Agriculture applications like agricultural monitoring, pest and disease monitoring, automated control, etc.

Specification

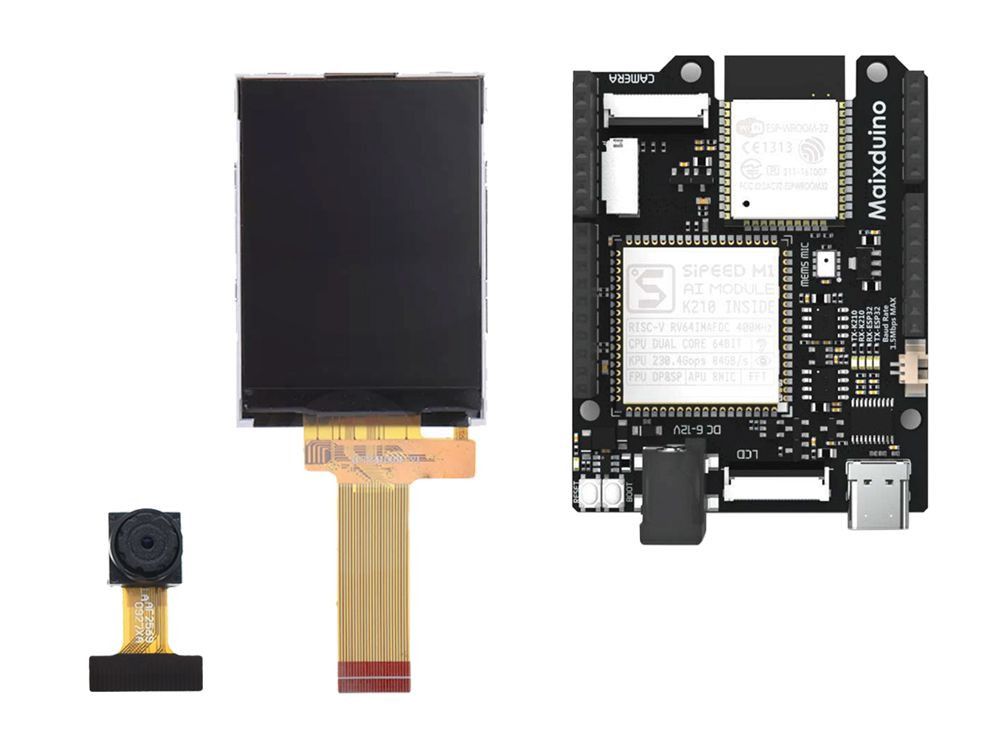

Part List

• 1 x Maixduino dev. board
• 1 x GC0328 camera module
• 1 x 2.4 inch TFT Display

Links

• https://maixduino.sipeed.com/en/
• https://github.com/sipeed/Maixduino
• micropython on it: https://maixpy.sipeed.com/en/
