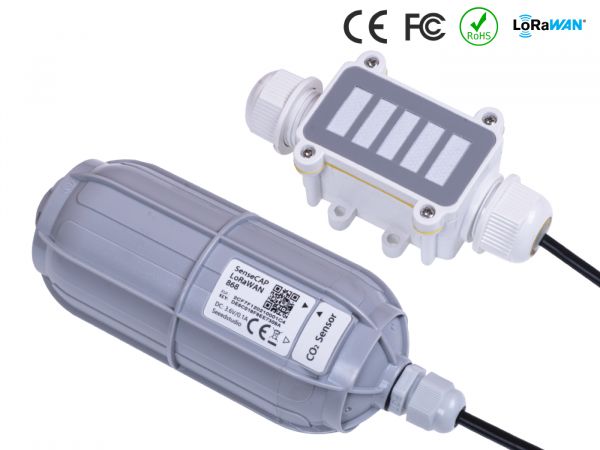

SenseCAP Wireless CO2 Sensor measures the level of carbon dioxide (CO2) gas at the range of 0 ~ 40000 ppm in the atmosphere, applicable for indoor environments. It is perfect for monitoring CO2 ppm in greenhouses, industrial campuses, factories, schools, office buildings, hotels, hospitals, transportation stations, and anywhere that data of CO2 emission is needed.
Features
Support LoRaWAN protocol Class A
NDIR CO2 sensor technology
Dual-channel detection for superior stability
Ultra-wide-distance transmission: 10km in line of sight scene, 2 km in urban scenes
Battery life ≥ 1.5 years
Rapid installation and deployment (see the video below)
Applications
Smart Agriculture/ Precision Agriculture
Smart Building and Industrial Control
Environmental Monitoring
Other Wireless Sensing Applications
Specifications
CO2
Parameters
Condition
Value
Range
-
0 to 40000 ppm
Accuracy
400 to 10000ppm
±(30 ppm + 3 %MV)
Resolution
-
1 ppm
Temperature Stability
T = 0 to 50 ℃
±2.5 ppm/℃
Parameters
Product Model
Long Range -S-868-CO2-01
Microcontroller
Ultra-low-power MCU
Support Protocol
Based on LoRaWAN v1.0.2 protocol
Long Range Channel Plan
EU868
Long Range Power Output
16 dBm (EIRP)
Sensitivity
-137.5dBm(SF12, BW125KHz)
Current Consumption
5 μA (sleep mode) 120 mA max(active mode)
Communication Distance
2 to 10 km (depending on different antennas and environments)
IP Rating
IP66 (Sensor Node); Indoor (Sensor Probe)
UV Resistance
anti-aging (from rain/sun exposure): UL746C F1
Enclosure Material
PC
Operating Temperature
0 ℃ to +50 ℃
Operating Humidity
0 to 95 %RH
Device Weight
319g
Certification
CE, FCC, RoHS
Battery (Contained in equipment)
Battery Life
≥ 3 years (upload data once per hour)
Battery Voltage
3.6V
Battery Capacity
19Ah (non-rechargeable)
Long Range Frequency
The device is designed with a fixed Long Range channel, which can not be modified by users. The supported channels are as follows. Please refer to the user manual for how to connect this device with a LoRaWAN gateway.
Long Range Channel Plan
Uplink (MHz)
868.1 - SF7BW125 to SF12BW125 868.3 - SF7BW125 to SF12BW125 and SF7BW250 868.5 - SF7BW125 to SF12BW125 867.1 - SF7BW125 to SF12BW125 867.3 - SF7BW125 to SF12BW125 867.5 - SF7BW125 to SF12BW125 867.7 - SF7BW125 to SF12BW125 867.9 - SF7BW125 to SF12BW125
