Seeed Studio XIAO ESP32S3 Sense is built around a highly-integrated, Xtensa processor ESP32-S3R8 SoC, which supports 2.4GHz WiFi and low-power Bluetooth® BLE 5.0 dual-mode for multiple wireless applications. It has lithium battery charge management capability.

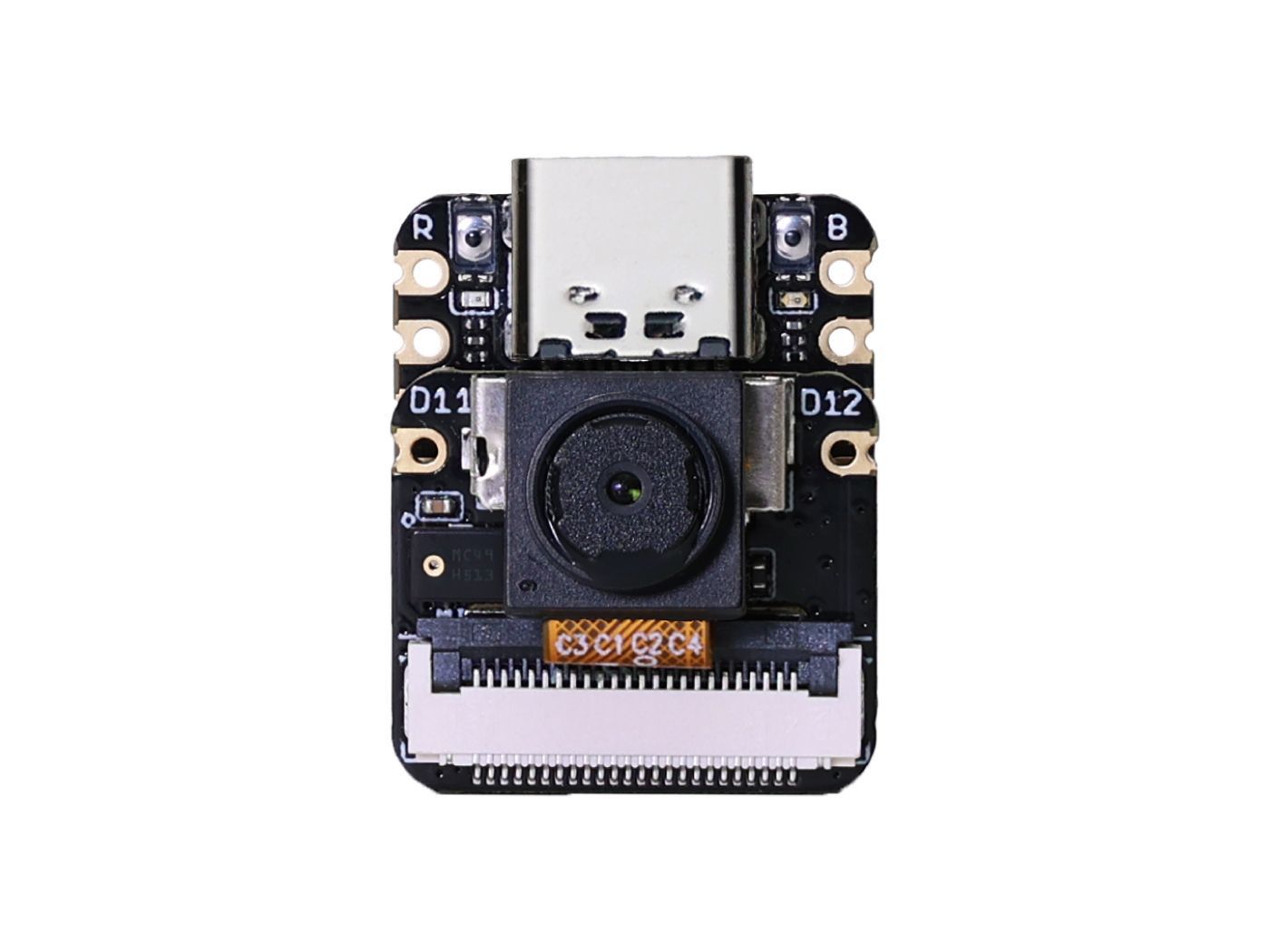

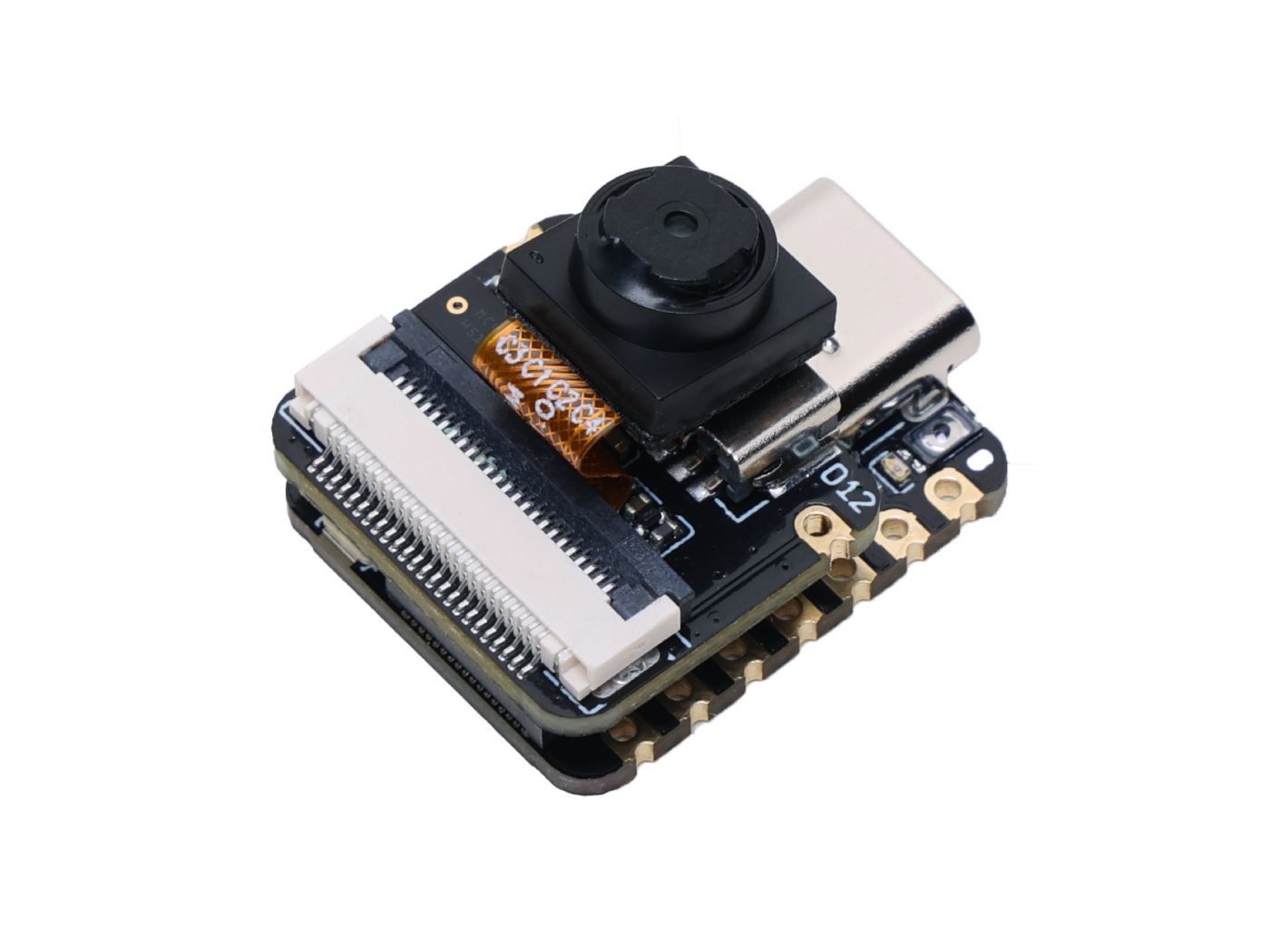

As the advanced version of Seeed Studio XIAO ESP32S3, this board comes with a plug-in OV2640 camera sensor for displaying full 1600*1200 resolution. The base of it is even compatible with OV5640 for supporting up to 2592*1944 resolution. The digital microphone is also carried with the board for voice sensing and audio recognition.
With powerful SoC and built-in sensors, this development board has 8MB PSRAM and 8MB FLASH on the chip, an additional SD card slot for supporting up to 32GB FAT memory. These allow the board for more programming space and bring even more possibilities into embedded ML scenarios.
Being a number to the Seeed Studio XIAO family, the board deservedly maintains the classic thumb-sized form-factor design and elegant productization of single-sided components mounting.
Seeed Studio XIAO Series are diminutive development boards, sharing a similar hardware structure, where the size is literally thumb-sized. The code name "XIAO" here represents its half feature "Tiny", and the other half will be "Puissant".
Seeed Studio XIAO ESP32S3 Sense integrates a camera sensor, digital microphone, and SD card support. Combining embedded ML computing power and photography capability, this development board can be your great tool to get started with intelligent voice and vision AI.
Features
- Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor chip operating up to 240 MHz, mounted multiple development ports, Arduino / MicroPython supported
- Advanced Functionality: Detachable OV2640 camera sensor for 1600*1200 resolution, compatible with OV5640 camera sensor, integrating additional digital microphone
- Great Memory for more Possibilities: Offer 8MB PSRAM and 8MB FLASH, supporting SD card slot for external 32GB FAT memory
- Outstanding RF performance: Support 2.4GHz Wi-Fi and BLE dual wireless communication, support 100m+ remote communication when connected with U.FL antenna
- Thumb-sized Compact Design: 21 x 17.5mm, adopting the classic form factor of XIAO, suitable for space-limited projects like wearable devices
Specification
|
Item
|
Seeed Studio XIAO ESP32S3
|
Seeed Studio XIAO ESP32S3 Sense
|
|
Processor
|
ESP32-S3R8
Xtensa LX7 dual-core,32-bit processor that operates at up to 240 MHZ
|
|
Wireless
|
Complete 2.4GHz Wi-Fi subsystem
BLE: Bluetooth 5.0, Bluetooth mesh
|
|
Built-in Sensors
|
/
|
oV2640 camera sensor for 1600*1200
Digital Microphone
|
|
Memory
|
On-chip 8M PSRAM & 8MB Flash
|
On-chip 8M PSRAM & 8MB Flash
Onboard SD Card Slot, supporting 32GB FAT
|
|

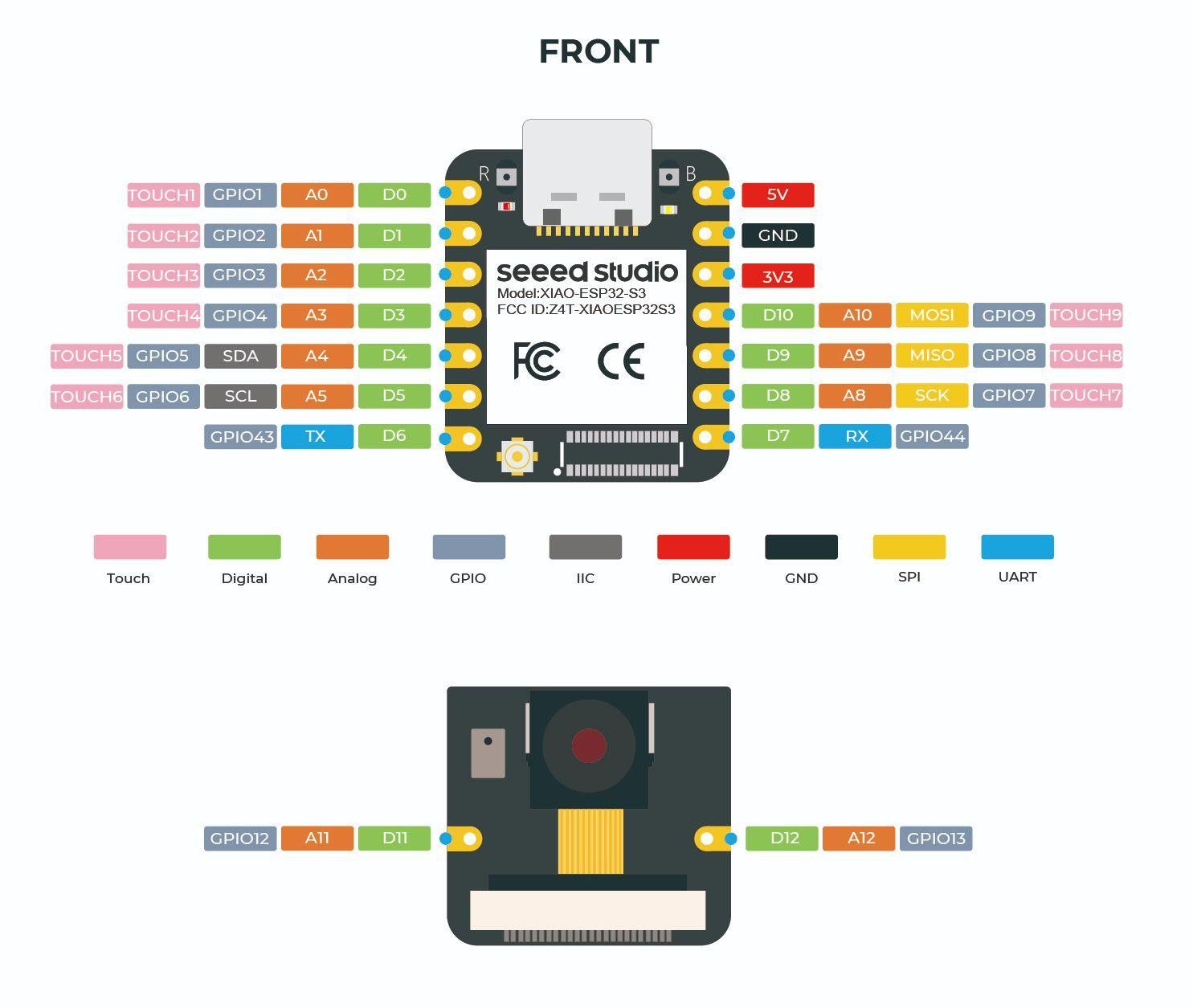

lnterface
|
1x UART,1x IIC,1x llS,1x SPl,11xGPIOs (PWM)，9x ADC,1x User LED,1x Charge LED
1x Reset button,1x Boot button
|
1x UART,1x lIC,1x lIS,1x SPI,11x GPIOs (PWM),9xADC，1x User LED, 1x Charge LED,1x B2B Connector(with 2 additional GPIOs)
1x Reset button, 1x Boot button
|
|
Dimensions
|
21 x 17.5mm
|
21 x 17.5 x 15mm (with expansion board)
|
|
Power
|
Input voltage (Type-C): 5V
lnput voltage (BAT): 4.2V
|
|
Circuit operating Voltage (ready to operate):
- Type-C:5V@19mA
- BAT: 3.8V@22mA
|
Circuit operating Voltage (ready to operate):
-Type-C: 5V@38.3mA
- BAT: 3.8V@43.2mA (with expansion board)
|
|
/
|
Webcam Web application:
- Type-C:
- - Average power consumption: 5V/138mA
- - Photo moment: 5V/341mA
- Battery:
- - Average power consumption: 3.8V/154mA
- - Photo moment: 3.8V/304mA
|
|
/
|
Microphone recording & SD card writing:- Type-C:
- - Average power consumption: 5V/46.5mA
- - Peak power consumption: 5V/89.6mA
- Battery:
- - Average power consumption: 3.8V/54.4mA
- - Peak power consumption: 3.8V/108mA
|
|
Charging battery current：50mA
|
Charging battery current：100mA
|
|
Low Power Consumption Model
(Supply Power: 3.8V)
|
Modem-sleep Model:~ 25mA
Light-sleep Model: ~ 2 mA
Deep Sleep Model:~14 μA
|
Modem-sleep Model: ~44mA
Light-sleep Model: ~5mA
Deep Sleep Model: ~3mA
|
|
Wi-Fi Enabled Power Consumption
|
Active Model: ~ 100 mA
|
Active Model: ~ 110 mA (with expansion board)
|
|
BLE Enabled Power Consumption
|
Active Model: ~85 mA
|
Active Model: ~ 102 mA (with expansion board)
|
|
Working Temperature
|
-40°C ~65°C
|
Notes:
- Pins are not included in this product.
- There are two additional GPIO on the plug-in camera sensor board linking to the microphone. If you want to apply these two external IO, the microphone should not be used at the same time.
Part List
|
XIAO ESP32S3
|
x1
|
|
Plug-in camera sensor board
|
x1
|
|
Antenna
|
x1
|
