Description

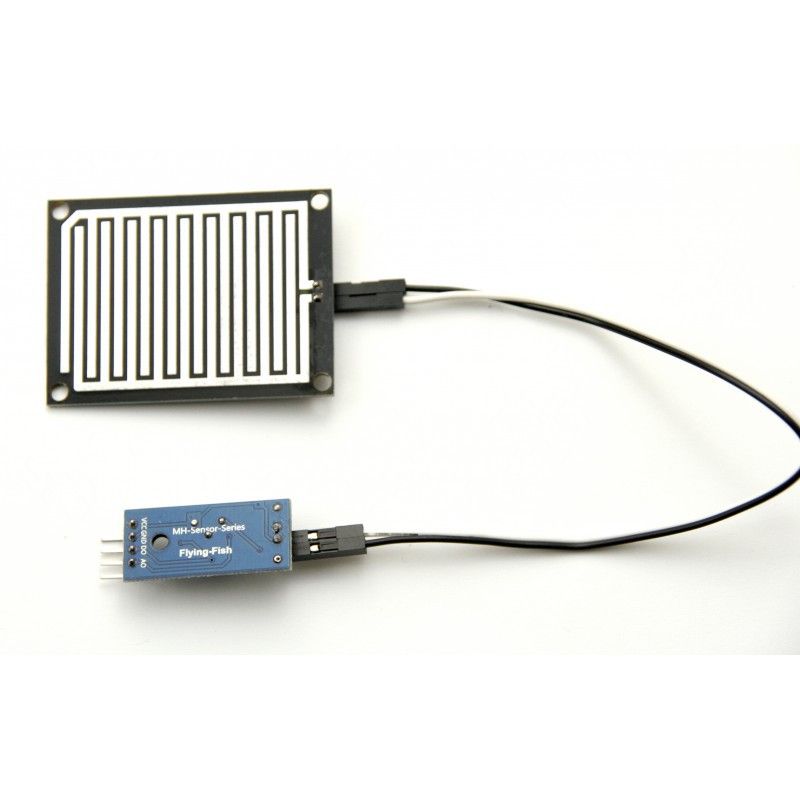

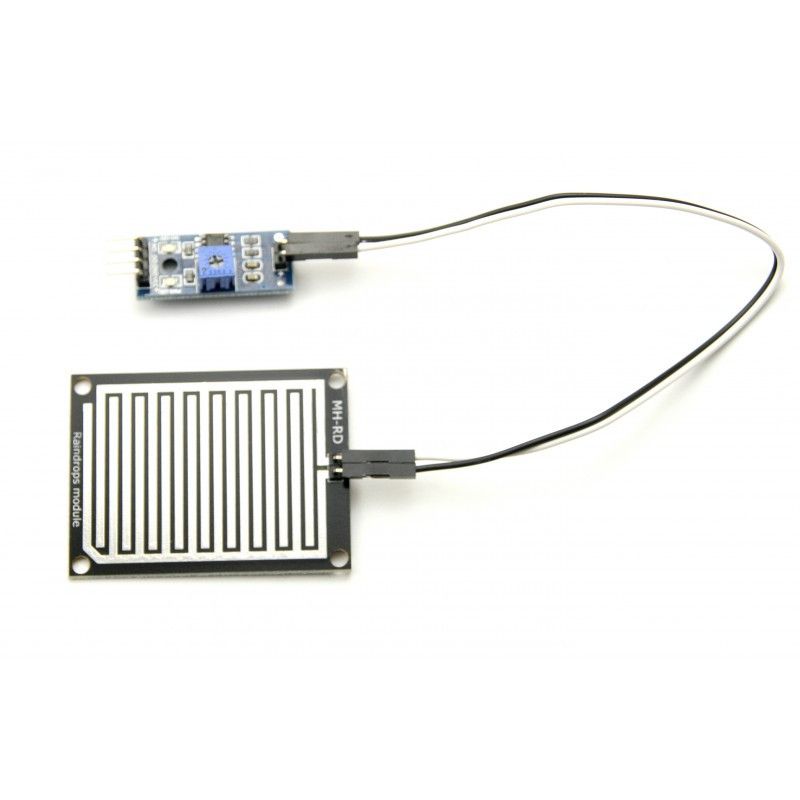

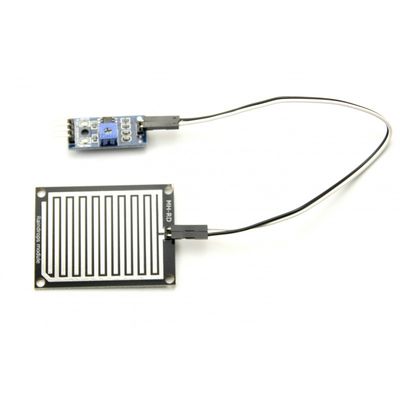

Rainfall / rainfall sensor - has an analog (proportional) and digital output with an adjustable switching threshold (comparator output).

The module allows to measure the occurrence and strength of precipitation (rain), has an LM393 system and an adjustable threshold for the digital output.

Features

• Rain sensor
• Power supply: 5V
• The probe may be away from the module
• The module operates based on the LM393 chip
• It has an analogue output
• It has a digital output (sensitivity threshold adjustable by potentiometer)
• Dimensions of the probe (without connector): 54 x 40 [mm]
• Module dimensions (without connectors): 30 x 15 [mm]

Package includes

• PCB probe
• male - male cable with a length of 20 cm
• module with LM333 system

Links

• KAMAMI PROJECT / Rain sensor - KAmduino UNO and Raindrops Module
