PRODUCT DETAILS

The new SLIM model offers outstanding robust design, a more convenient USB connector on the side and larger internal battery capacity.

Features

• Internal LNA amplifier and selectable attenuator
• Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up to 960Mhz
• New HELP and SET buttons to improve user interface and configuration selection with 2-clicks
• Wide band coverage to all popular sub-1Ghz bands, including FM, TV and DTV, ISM, RFID, GSM, etc.
• Ideal choice for HAM bands from 160meters to 33cm
• Pocket size and light weight
• Solid metal case
• Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
• High capacity internal Lithium battery for 20hs+ of continuous run, rechargeable by USB
• Multi-platform Windows/Linux/MacOS Open Source software and API libraries
• Can be extended with internal Expansion Modules for additional band and functionality

Specification

• Frequency band: 0.05 – 960MHz
• Frequency span: 0.1 – 960MHz
• Internal selectable LNA 25dB gain
• Internal selectable Attenuator 30dB
• Graphics LCD 128x64 pixels, great visibility outdoors
• Support included for Windows, Linux and MacOS X
• Backlight for great visibility indoor
• Internal Lithium Ion 1800mA/h rechargeable battery
• Standard SMA 50 ohms connector
• Wideband 144/433MHz dual band telescopic antenna included
• UHF 400-900MHz rubber duck articulated antenna included
• Amplitude resolution: 0.5dBm
• Dynamic range: -125dBm to 10dBm
• Absolute Max input power: +30dBm
• Average noise level (typical LNA): -125dBm
• Frequency stability and accuracy (typical): +-10ppm
• Amplitude stability and accuracy (typical): +-2dBm
• Frequency resolution: 1Khz
• Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz

NOTE:  RF Explorer is a very sensitive spectrum analyzer, specially designed to detect signals with aerial antenna. For extra protection when connecting the analyzer to a signal source with a coaxial cable, we suggest using a RF Explorer Power Limiter.

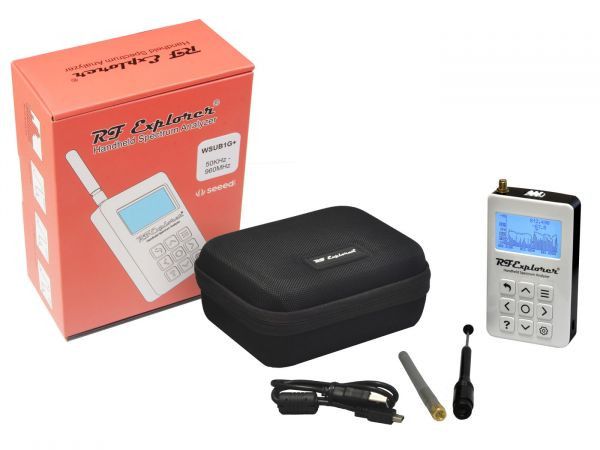

Part List

• 1 x Spectrum Analyzer
• 1 x Mini USB cable
• 1 x Dual band 144/430MHz Telescopic antenna
• 1 x UHF 400-900Mhz antenna
• 1 x EVA case
