PRODUCT DETAILS
RF Explorer 6G COMBO+ is the most powerful Spectrum Analyzer model, covering the full 6GHz range starting at 50KHz up to 6.1GHz with no gaps or limitations.
When compared to the standard 6G Combo model, the new SLIM design offers an outstanding robust enclosure with a strong metallic body and shiny varnished paint, a more convenient USB connector on the side, and a larger internal battery capacity.
Specifications
|
Frequency Band
|
|
|
Frequency Span
|
2 – 960MHz in a single sweep
|
|
Internal Selectable LNA Gain
|
25dB
|
|
Internal selectable Attenuators
|
30dB and 60dB
|
|
Supporting OS
|
Windows, Linux and MacOS X
|
|
Resolution Bandwidth (RBW)
|
automatic 2.6Khz to 600Khz
|
|
Frequency Resolution
|
1Khz
|
|
Amplitude Stability and Accuracy (typical)
|
+-3dBm
|
|
Amplitude Resolution
|
0.5dBm
|
|
Dynamic Range
|
-125dBm to 10dBm
|
|
Absolute Max Input Power
|
+30dBm
|
|
Average Noise Level (typical LNA)
|
-125dBm
|
|
Wifi Analyzing Range
|
2.4GHz and 5GHz bands
|
Antenna Included
|
-
2.4/5GHz dual-band antenna
-
UHF 400-900MHz rubber duck articulated antenna
-
Wideband 144/433MHz dual band telescopic antenna
|
|
SMA
|
Standard 50 ohms connectors
|
|
Battery
|
Internal Lithium-Ion 1800mA/h rechargeable battery
|
Applications
- RF Spectrum Analysis for FM, TV and DTV, ISM, RFID, GSM, 4G/5G, IoT, GPS, Bluetooth
- WiFi analysis and fine-tuning
- Interference hunting
- EMC pre-testing
- RF device tuning (with Signal Generator working as Tracking SNA)

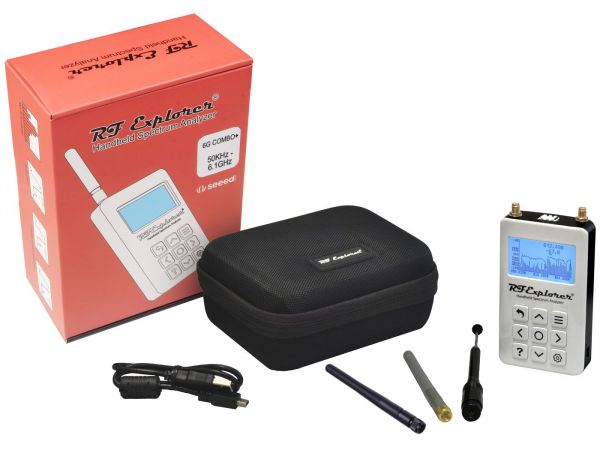

Part List
- 1 x Spectrum Analyzer
- 1 x Mini USB cable
- 1 x Dual band 144/430MHz Telescopic antenna
- 1 x UHF 400-900Mhz antenna
- 1 x Dual band 5/2.4GHz antenna
- 1 x EVA case
