PRODUCT DETAILS

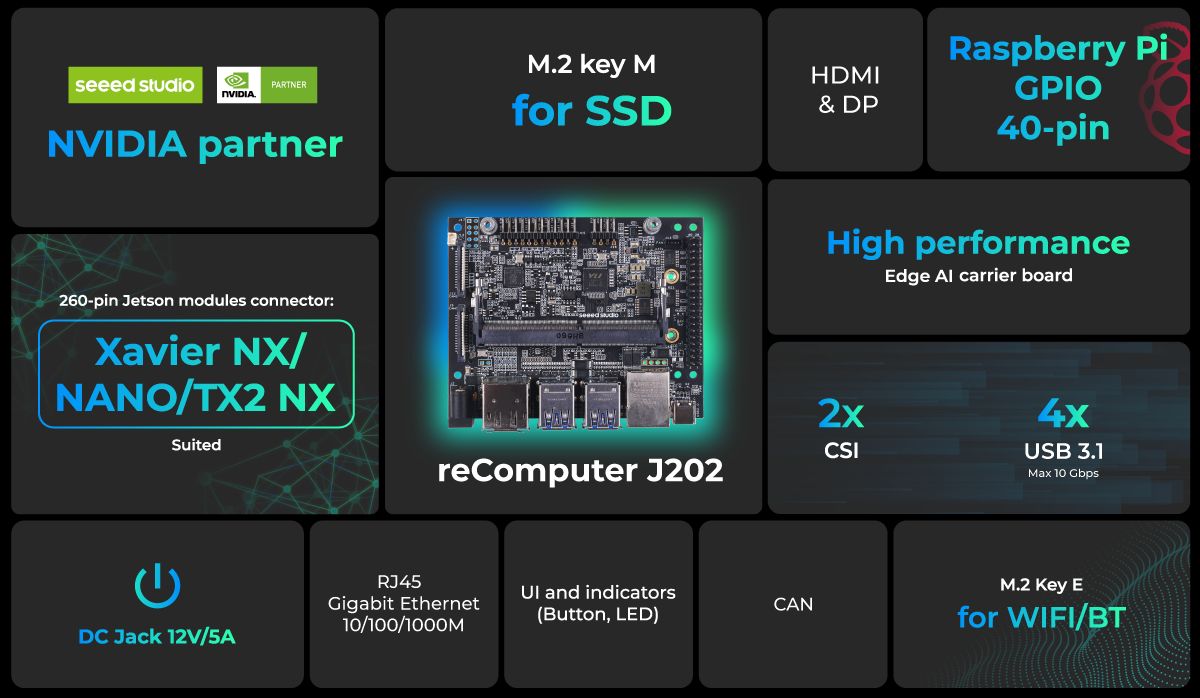

reComputer J202 is a high-performance, interface-rich NVIDIA Jetson Nano / Xavier NX / TX2 NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.1, M.2 key E wifi / BT, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, Fan, and other rich peripheral interfaces. It has the same functional design and size as the carrier board of NVIDIA® Jetson Xavier™ NX DEVELOPER KIT. There is additional power adapter included.
Please check out Seeed Studio reComputer J2011 edge AI device built with Jetson Xavier NX module, carrier board, and pre-installed Jetpack.
Features
- Perfectly suited: Design for Jetson Nano/Xavier NX/TX2 NX (260-pin SODIMM).
- Developer Kit carrier board alternative: 1:1 matches the size and nearly the same functional design as the carrier board of Nvidia’s official Jetson Xavier NX Developer Kit.

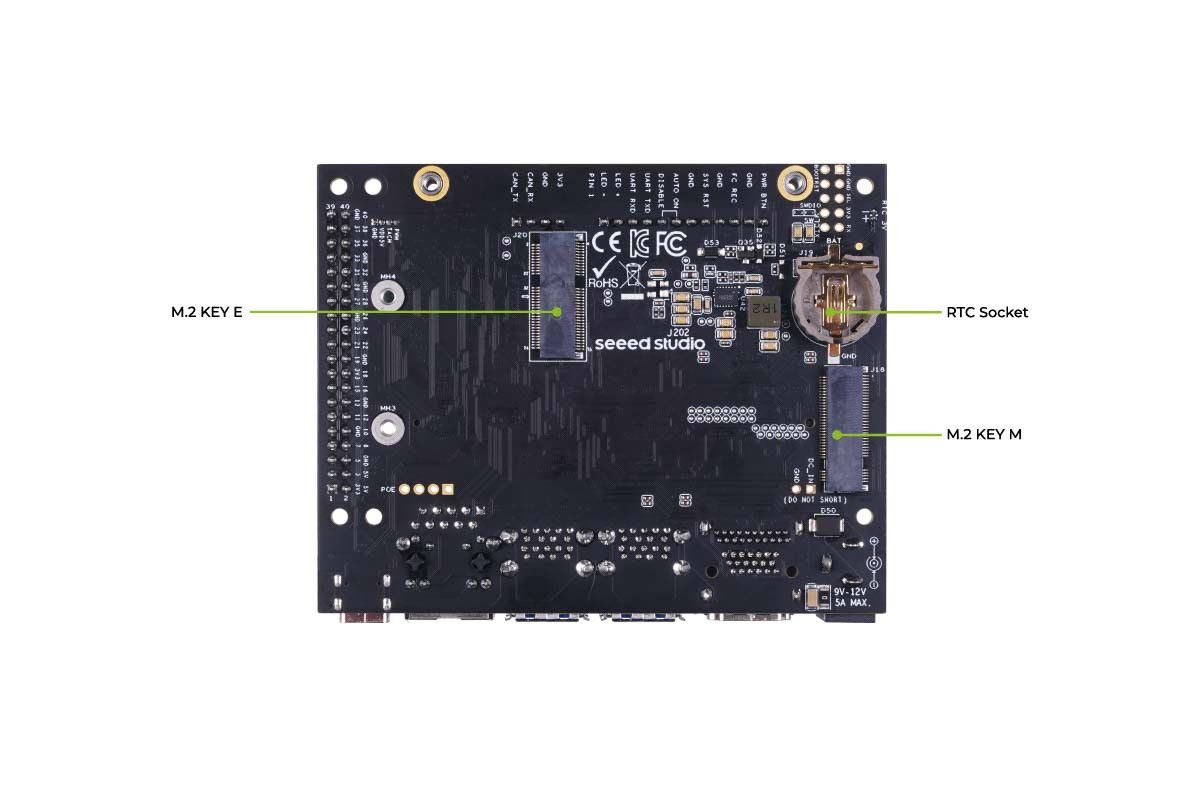

- Rich peripherals: Higher performance stability consists of USB 3.1 ports(4x), M.2 key E for WIFI, M.2 Key M for SSD, RTC, CAN, Raspberry Pi GPIO 40-pin, and so on.
- High versatility: Suitable for complicated AI graphical applications.
- Comprehensive certificates: FCC, CE, RoHS(Certification received in early Sept)
Note:
- When using with Jetson Nano module, the M.2 E KEY and CAN cannot work.
- We recommend using 9-12V power adapter, however J202 could support 15V MAX.
- If you want to get started with a Jetson module (flash to eMMC or SSD) under Recovery mode, please check Seeed Studio wiki.
Functionality
With the NVIDIA Jetson module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more.
With its multiple camera connectors, it is suitable for running multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing.
Edge AI Applications
Work with up to 21 TOPS AI performances provided by the Jetson Xavier NX, it delivers the capability to develop and test power-efficient, small form factor intelligent solutions with accurate, multi-modal AI inference across industries.

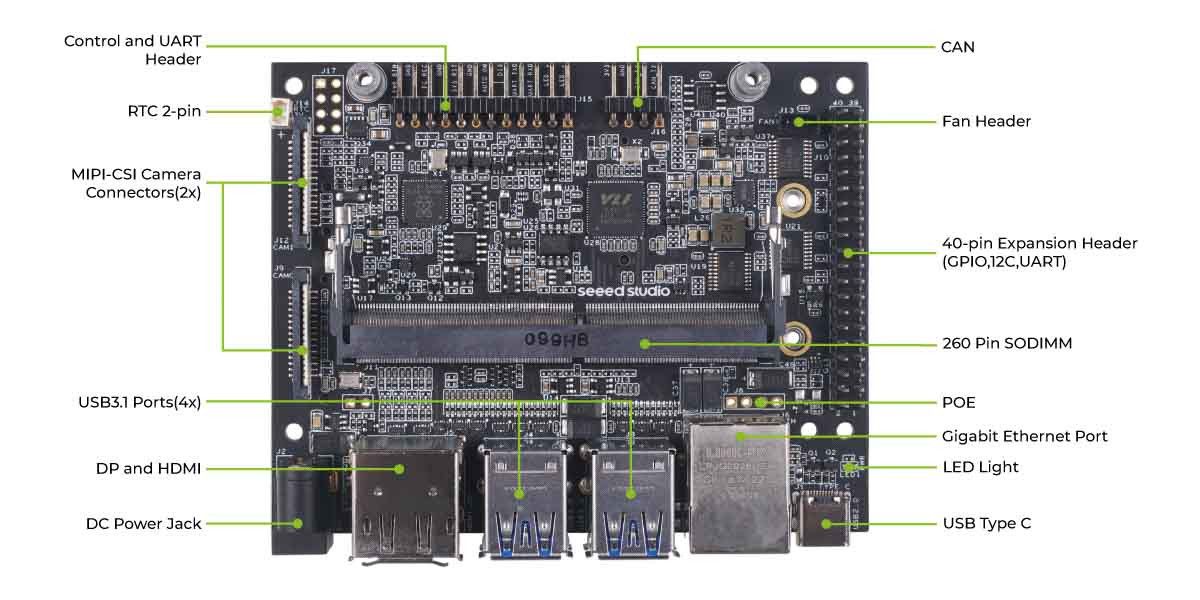

Specifications
| Feature |
reComputer J202 (with power adaptor) |
|---|
| Module Compatibility |
Jetson™ Nano/Xavier NX/TX2 NX |
|---|
| PCB Size / Overall Size |
100mm*80mm |
|---|
| Display |
1* HDMI+1* DP |
|---|
| CSI Camera |
2* CSI |
|---|
| Ethernet |
1* Gigabit Ethernet (10/100/1000M) |
|---|
| USB |
4* USB 3.1 Type-A (10Gbps for NX, 5Gbps for Nano); |
|---|
| USB |
4* USB 3.1 Type-A (10Gbps for NX, 5Gbps for Nano); |
|---|
| USB |
4* USB 3.1 Type-A (10Gbps for NX, 5Gbps for Nano); |
|---|
| USB |
1* USB Type-C (Device mode) |
|---|
| M.2 Key M |
1* M.2 Key M |
|---|
| Micro SD card |
- |
|---|
| M.2 Key E |
1* M.2 Key E |
|---|
| FAN |
1* Fan Connector |
|---|
| CAN |
1* CAN |
|---|
| Multifunctional port |
1* 40-Pin |
|---|
| Multifunctional port |
1* 12-Pin |
|---|
| RTC |
RTC 2-pin |
|---|
| RTC |
RTC socket |
|---|
| Power supply |
12V/5A (Barrel Jack 5.5/2.1mm) |
|---|
| Power supply |
Power adapter provided |
|---|
Note:
If you want to use SSDs with reComputer Jetson, Seeed only recommend you choose 128GB, 256GB, and 512GB versions from Seeed, because some of the SSDs in the market will not work with this product.
Part List

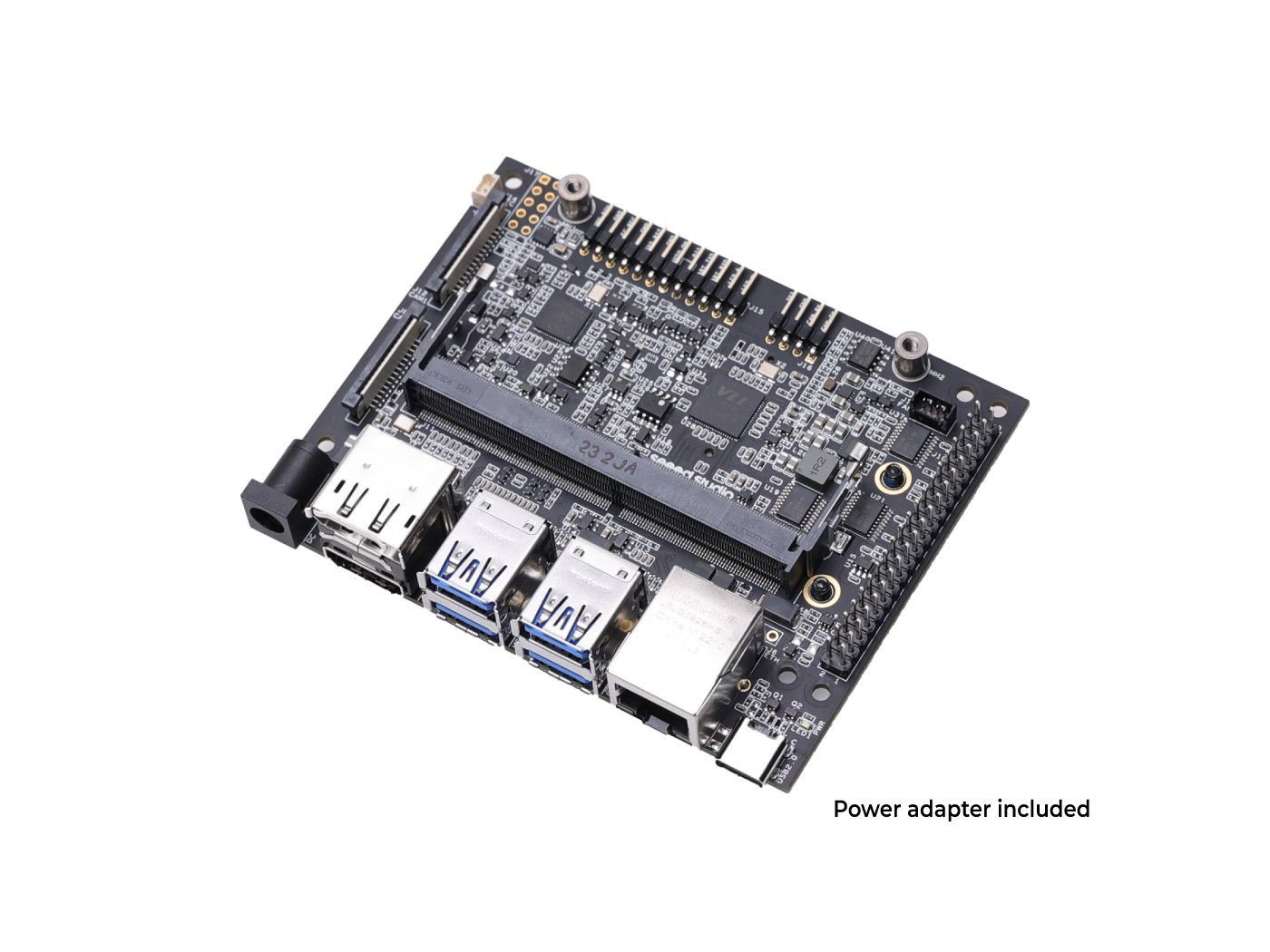

- 1 x reComputer J202 Carrier Board
- 1 x 12V/5A Power adapter 5.5mm/2.1mm（power cord not provided）
Note:
- Seeed provide 12V/5A Power adapter, but the power cord is not included
- Seeed will not include a 3V RTC battery.
