Model

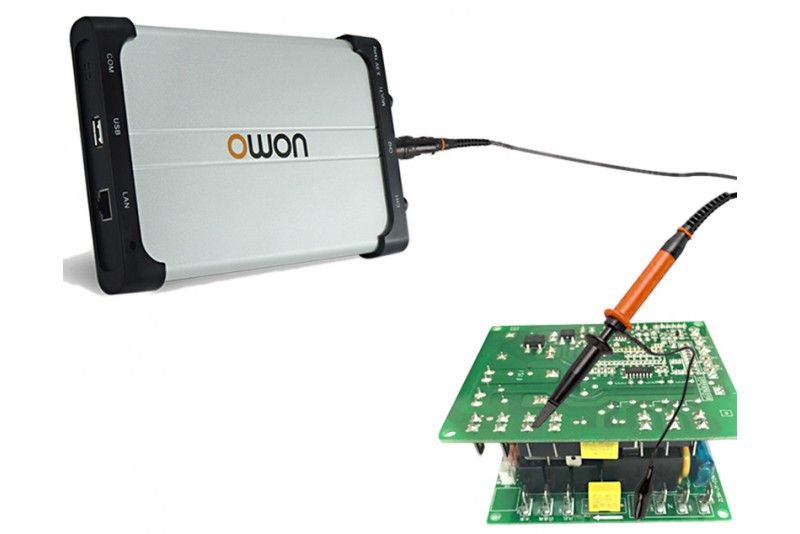

VDS3102

Bandwidth

100MHZ

Channel

2+1 (multi)

Sample Rate

1GSa/s

Horizontal Scale (s/div)

2ns/div～100s/div, step by 1～2～5

Record Length

10M

Max Input Voltage

40V (PK - PK) (DC+AC, PK - PK)

Vertical Resolution (A/D)

8 bits (2 channels simultaneously)

Vertical Sensitivity

2mV/div～5V/div

Trigger Type

Edge, Pulse, Video, Slope, and Alternate

Trigger Mode

Auto, Normal, and Single

Acquisition Mode

Sample, Peak Detect, and Average

Waveform Math

 ＋, －, ×, ÷, invert, FFT

Communication Interface

USB 2.0, LAN (optional)

Multi-function
Interface

Signal Type

synchronized input / output, Pass / Fail , external trigger input

Level Standard

TTL

Power Supply

5.0V/1A

Power Consumption

≤6.5W

Dimensions (W × H × D)

190 × 120 × 18 (mm)

Device Weight

0.3 kg
