This kit is the perfect solution for you to communicate with your vehicle's OBD-II interface without visiting a mechanic. It includes a Serial CAN Bus module, an OBD-II Connector, and other accessories to help you do all the diagnostics and data logging with ease. We also provide a tutorial which is based on Arduino and you can easily obtain data from your vehicle by following this tutorial.

Note! This kit doesn't include a controller board.

How This Kit Can be Used for OBD-II?

This kit is the perfect solution for you to communicate with your vehicle's OBD-II interface without visiting a mechanic. It includes a Serial CAN Bus module, an OBD-II Connector, and other accessories to help you do all the diagnostics and data logging with ease. Seeed Studio also provide a tutorial which is based on Arduino and you can easily obtain data from your vehicle by following this tutorial.

Features

• Fast serial communication with CAN Bus rate up to 1Mb/s
• Easy Setup with all components included
• Easily get started with the provided Arduino-based tutorials
• Multi-platform support (Arduino, Raspberry, Beaglebone Board, etc.)

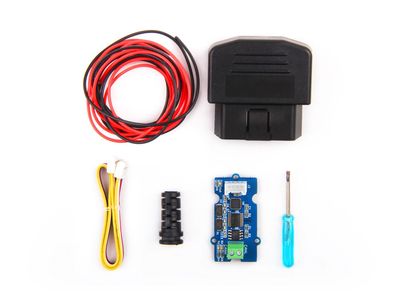

Parts List

• 1 x Serial CAN Bus Module
• 1 x OBD-II Connector
• 1 x Screwdriver
• 1 x Cable for CAN Bus
• 1 x Grove Cable

Links

• OBD-II CAN Bus GPS Development Kit
• CAN-BUS Shield V2
• Serial CAN-BUS Module
• USB-CAN Analyzer

• Wiki for Serial CAN Bus Module
• Arduino Library
• Schematics of Serial CAN Bus Module in Eagle File
