You can use it in you project without any wireless design, just need to leave a 8 pins interface to this module. Use the SPI interface to control the module on transferring data.

Ominaisuudet

• Worldwide license-free 2.4GHz ISM band operation
• 250kbps, 1Mbps and 2Mbps on-air data-rate options
• Enhanced ShockBurst?hardware protocol accelerator
• Ultra low power consumption?months to years of battery lifetime

Speksit

• Power supply: 1.9-3.6V
• IO port working voltage: 0-3.3V / 5V
• Transmitting rate: +7dB
• Receiving sensitivity: -90dB
• Transmission range: 250m in open area

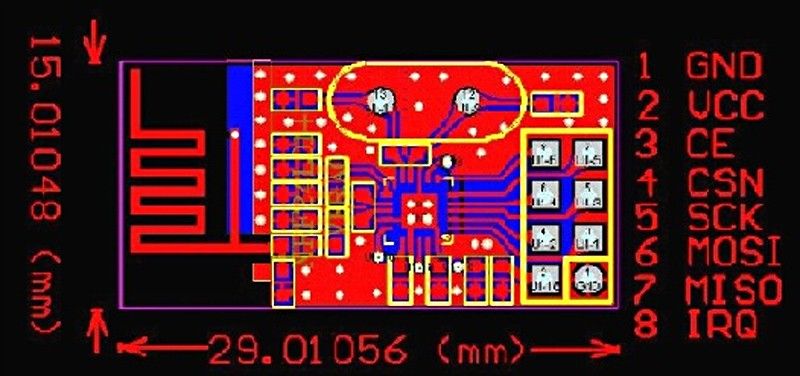

• Dimension: 15 x 29 mm
