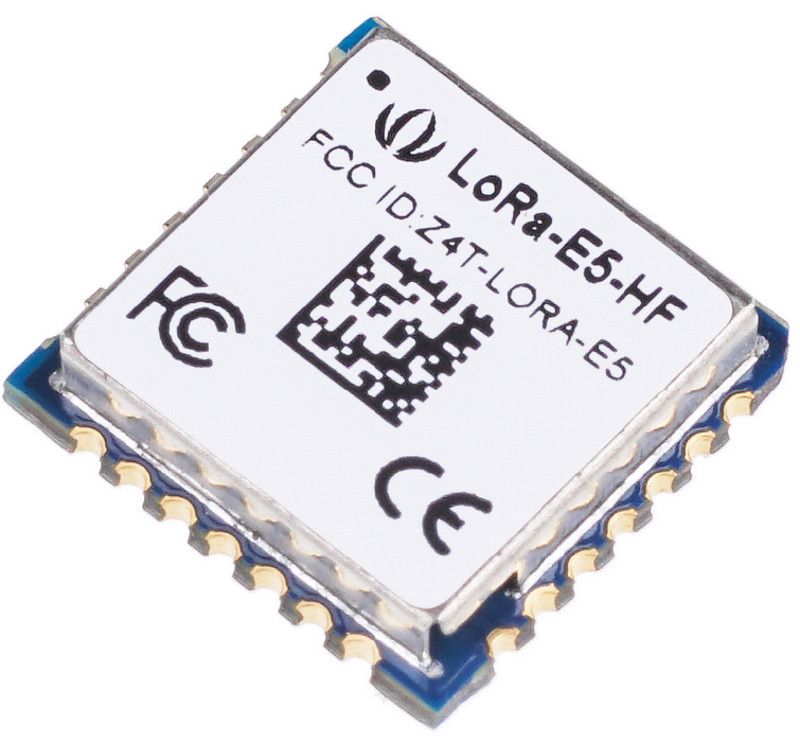

LoRa-E5 LoRaWAN module is designed with ST system-level package chip STM32WLE5JC, ARM Cortex M4 ultra-low-power MCU and LoRa SX126X. It supports (G)FSK mode and LoRa. 62.5kHz, 125kHz, 250kHz, and 500kHz bandwidth can be used in LoRa® mode, making it suitable for the design of various IoT nodes, supporting EU868 and US915.
This LoRa E5 module is designed with industrial standards, hence it's highly suitable to be used in designing industrial IoT products, with a wide working temperature at -40℃ ~ 85℃.
Features
- Ultra-low Power Consumption: as low as 2.1uA sleep current (WOR mode)

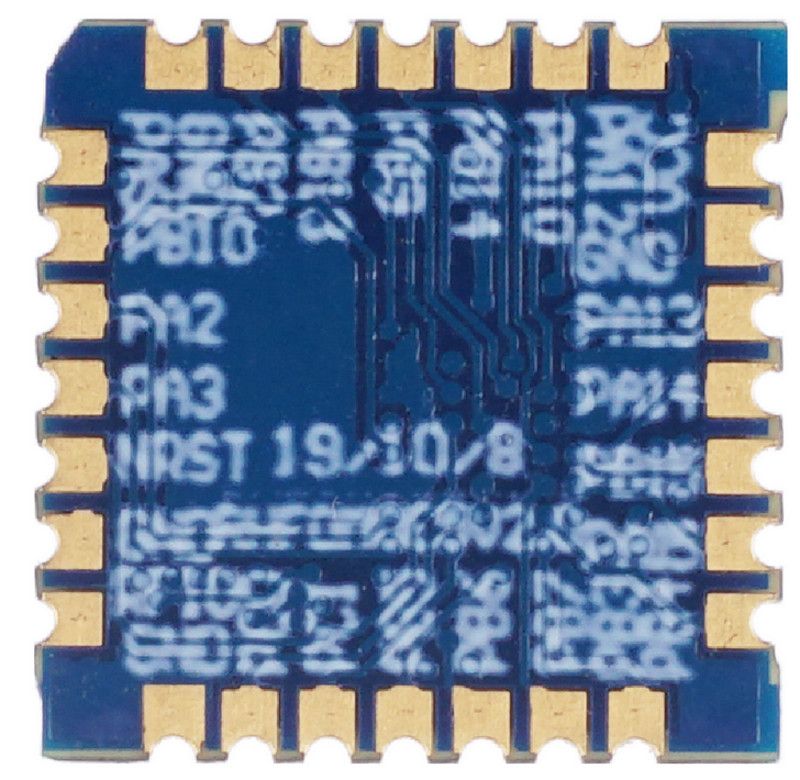

- Extremely Compacted Size: 12mm * 12mm * 2.5mm 28 pins SMT
- High Performance: TXOP=22dBm@868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW
- Long Distance Use: 158dB link budget
- Wireless Connectivity: Embedded LoRaWAN® protocol, AT command, support global LoRaWAN® frequency plan
- Worldwide Compatibility: wide frequency range; EU868/US915/AU915/AS923/KR920/IN865
- Great Flexibility: For users who want to develop software on the MCU of the module, other GPIOs of the MCU can be easily manipulated, including UART, I2C, ADC, etc. These rich GPIO interfaces are useful for users who need to expand peripherals.
- FCC and CE Certified
Specifications
| ITEMs | Parameter | Specifications | Unit |
|---|
| Core |
MCU |
ARM Cortex M4 |
| Storage |
256KB Flash, 64KB SRAM |
KB |
| Structure |
Size |
12(W)*12(L)*2.5(H) |
mm |
| Package |
28 pins, SMT |
| Electrical Characteristics |
power supply |
3.3V type |
V |
| sleep current |
2.1uA(WDT on) |
uA |
| Operation current (Transmitter+MCU) |
50mA @10dBm in 434MHz type |
mA |
| 111mA @22dBm in 470MHz type |
| 111mA @22dBm in 868MHz type |
| Operation current (Receiver+MCU) |
6.7mA @BW125kHz, 868MHz type |
mA |
| 6.7mA @BW125kHz, 434MHz type |
| 6.7mA @BW125kHz, 470MHz type |
| Output power |
10dBm max @434MHz |
dBm |
| 22dBm max @470MHz |
| 22dBm max @868MHz |
| Sensitivity |
@SF12, BW125kHz |
dBm |
| Fr(MHz) |
min |
type |
max |
| 434 |
- |
-134.5 |
-136 |
| 470 |
- |
-136.5 |
-137.5 |
| 868 |
- |
-135 |
-137 |
| Harmonics |
< -36dBm below 1GHz |
dBm |
| < -40dBm above 1GHz |
dBm |
| Interface |
RFIO |
RF port |
| UART |
3 group of UART, include 2 pins |
| I2C |
1 group of I2C, include 2 pins |
| ADC |
1 ADC Input, include 1 pins, 12-bit 1Msps |
| NRST |
Manual reset pin input |
| SPI |
1 group of SPI, include 4 pins |
