Specifications

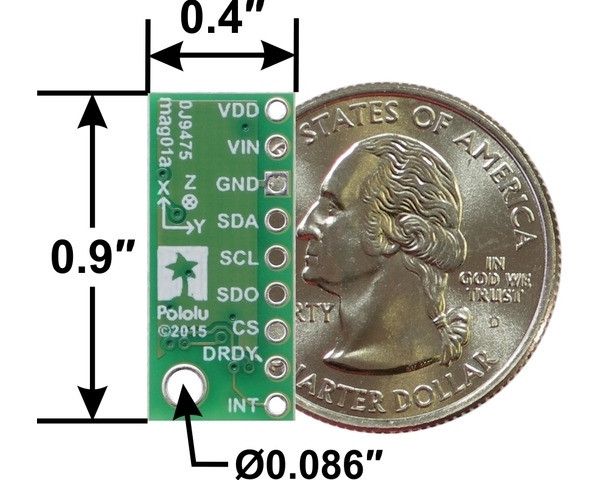

• Dimensions: 0.4″ × 0.9″ × 0.1″ (10 × 23 × 3 mm)
• Weight without header pins: 0.6 g (0.02 oz)
• Operating voltage: 2.5 V to 5.5 V
• Supply current: 3 mA
• Output format (I²C/SPI): one 16-bit reading per axis
• Sensitivity range (configurable): ±4, ±8, ±12, or ±16 gauss
