PRODUCT DETAILS
Description
ATTENTION! Make sure you use a built-in battery protector for your lithium battery or that you can connect a separate battery protector, otherwise it may overcharge or over-discharge the battery.
Welcome to the era of fast charging! 5V/2A Lipo Rider Plus will greatly increase the charging speed, just like flashing lightning.
The Lipo Rider Plus from Seeed is not only a Fast Charger but also a Strong PowerBoost, supports up to 5V/2A charging current, boost output integration, output up to 5V/2.4A, can also output 3.3V /250mA. The 3.3V output is normally on, and the 5V output supports IO control or manual switch, which means you can use 3.3V to supply power for a microcontroller and use the I/O of this microcontroller to control the 5V output, totally programmable.

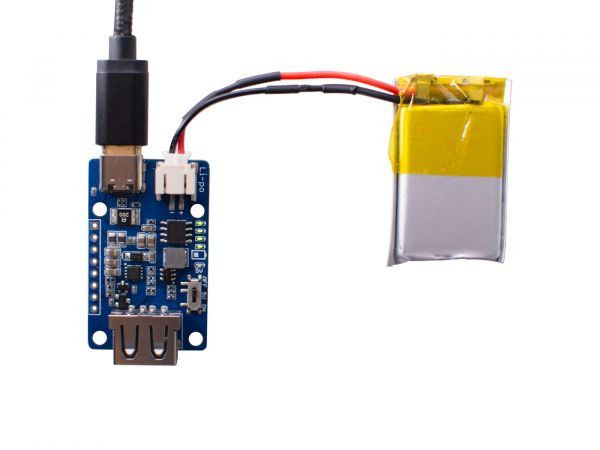

Of course, Lipo Rider Plus can charge the Lipo battery, and it is very fast, 5V/2A, 10W charging power, what a flying experience.
Not only a charger but also a power supply and a booster. With the help of Lipo Rider Plus, you can input a 3.7V lipo battery, and output up to 5V/2.4A via the USB Type-A port. With the on-board switch, you can control the ON/OFF of USB port easily. Meanwhile, we provide the full function pin header, which can output 3.3V/250mA as well.
Features
- Up to 5V / 2A charging current - USB Type C
- Up to 5V / 2.4A output current - USB Type A
- Provides 3.3V / 250mA output - Pin Header
- Support for shutdown output (IO control/manual switch)
- Onboard charge status indicator LED + Onboard 4-segment power indicator LED
- Ultra-small 2.5cm*4.1cm
- Single-layer layout easy mount.

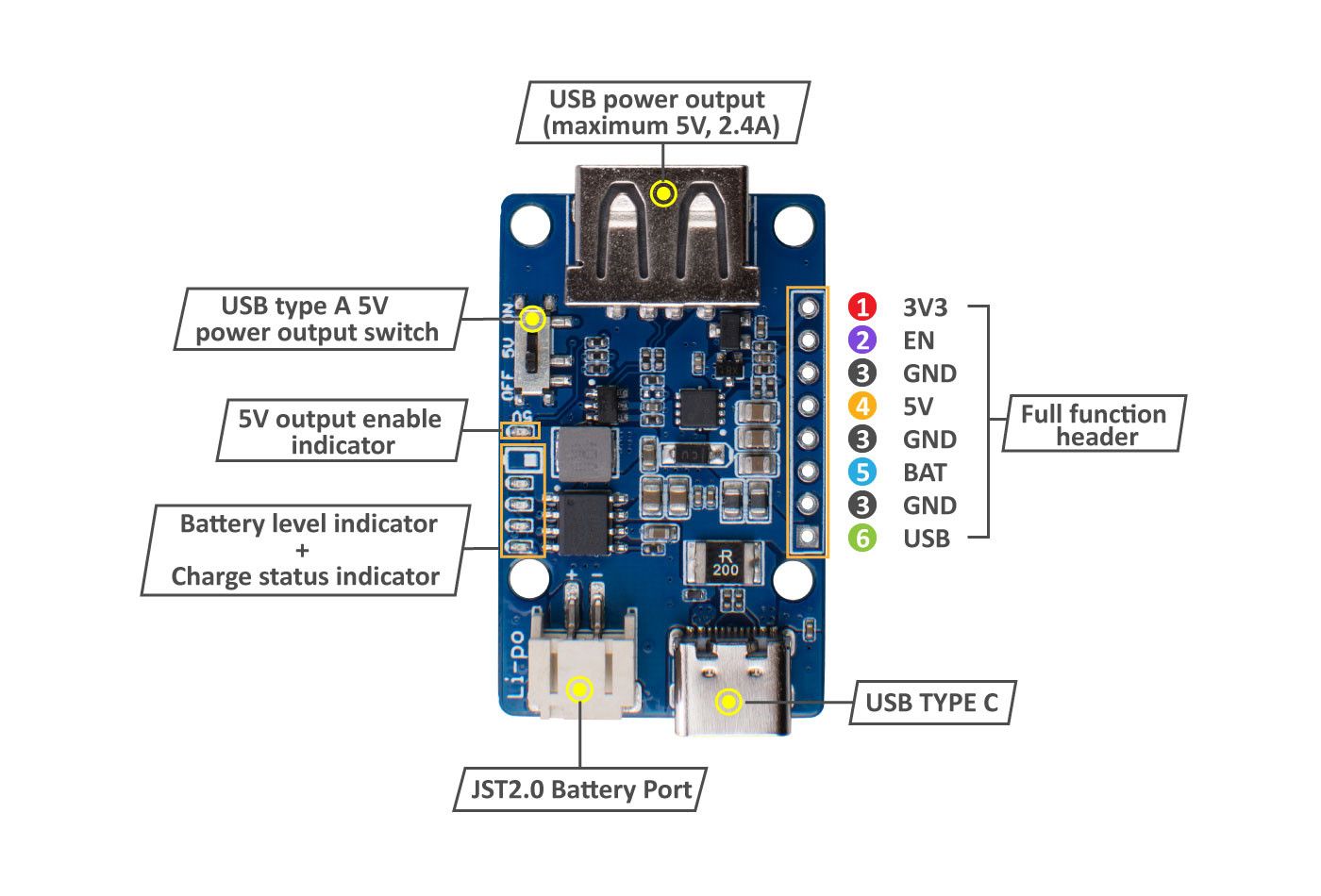

Hardware Overview
[img-25643-left-desc_default]
