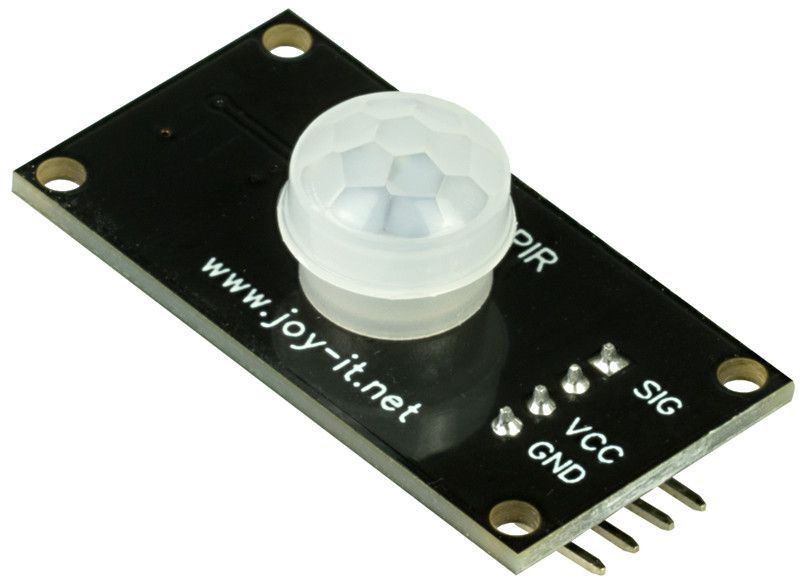

The sensor on this module is a pyroelectric infrared sensor which detects movement in the detection area of the Fresnel lens and then outputs a "HIGH" signal at the sensor output pin "SIG" for 3 seconds. Afterwards the signal changes back to the "LOW" state. The soldered potentiometer is used for variable range adjustment. With the help of this module and a microcontroller such as Raspberry Pi or Arduino, it can be used for safety systems or automation, among others.

Speksit

• Sensor: PIR Motion Detector
• Operating principle: Pyroelectric infrared rays
• Special feature: Reach infinitely variable
• Supply voltage: between 3-5 Volts
• Module interface: 4 Pins
• Detector chip: BIS0001
• Detection angle: 120°
• Detection range: max. 6 meters (3 meters standard)
• Variable detection range via potentiometer: Adjusting the sensitivity controller on the module board using a cross screwdriver
• Dimensions: 21 x 40 x 19 mm
• Items Shipped: SBC-PIR Motion Detector
• EAN: 4250236820859
