PRODUCT DETAILS

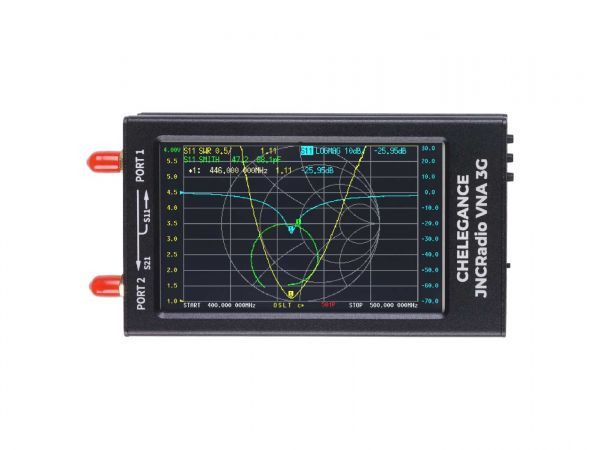

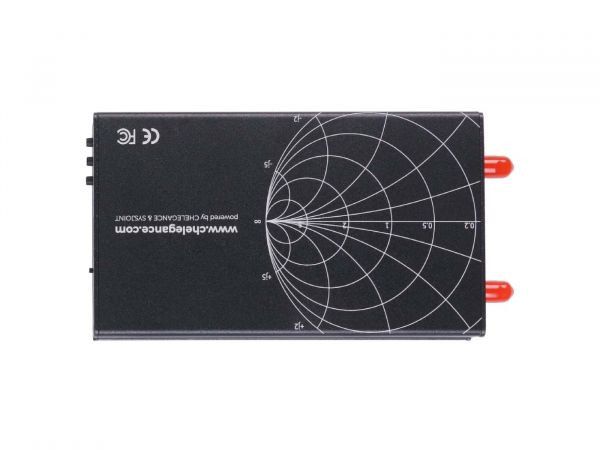

JNCRadio VNA 3G is a portable Vector Network Analyzer with a frequency range of 50KHz - 3GHz. It is designed with a 4.3-inch IPS LCD in the all aluminium alloy case. The sweep speed of JNCRadio VNA 3G reaches 400 pts/s, and the number of sweep points is up to 501. With the performance of 70dB dynamic range for S21 and 50dB dynamic range for S11, JNCRadio VNA 3G is very suitable for field measurement, such as measuring HF/VHF/UHF antennas, filters, attenuators, duplexers, etc.

The SMA RF connectors have been applied in the VNA to make connecting DUTs(Device Under Test) easier. The built-in RF signal generator output is up to 4.4 GHz and the output power is adjustable. For convenience and efficiency, the operating screen has been designed as full touching where the UI design has also been optimized.

The built-in lithium battery ensures the device stand-by up to 5 hours. It is compatible with Nanovna-Save PC software and its firmware upgraded is through virtual U-disk with Type-C cable.

Features

• Wide frequency coverage: 50KHz - 3GHz
• Fast operating speed: 400 points/s
• Portable device for field operation
• Large screen: 4.3-inch IPS LCD
• Pocket size: 130mmx75mmx22mm
• light weight: 610g
• Built-in 5000mAh battery: up to 5 hours operation
• Guaranteed quality: CE(EMC,LVD), FCC and RoHS compliance

Application

S11, S21 Characters:

• VSWR, SMITH CHART
• LOGMAG
• PHASE, DELAY
• Q FACTOR, POLAR, LINEAR

Measurement:

• HF/VHF/UHF antennas
• Amplifier
• Attenuators
• Cable
• Duplexers
• Filters

SPECIFICATION

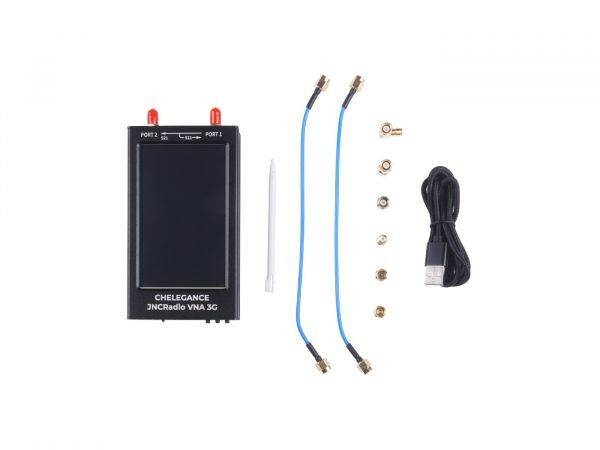

PART LIST

Links

• Datasheet
• Usermanual
• Firmware
• Desktop Software

You can get the tutorial of upgrading the firmware here.

Video
