Description

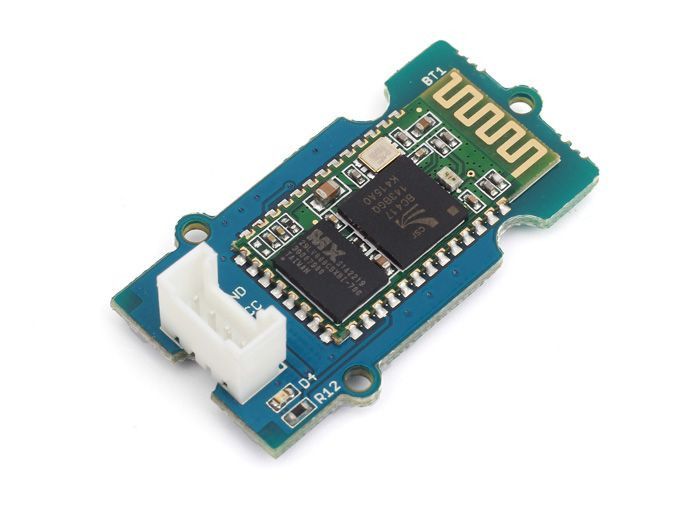

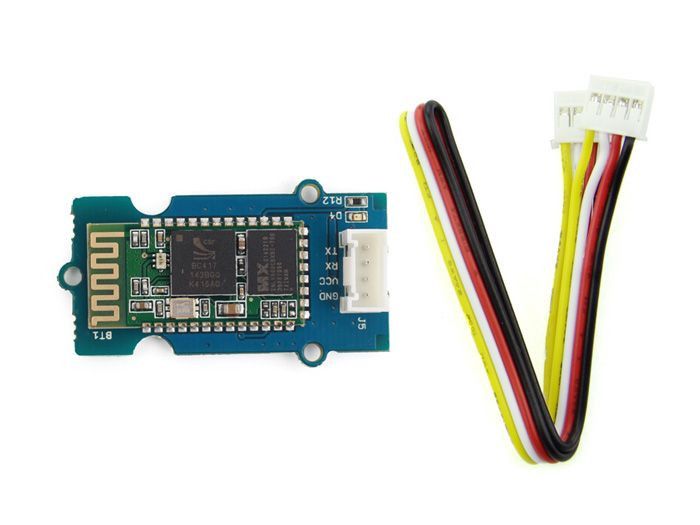

Grove - Serial Blueseeed TH (CSR BC417) is an easy to use module compatible with the existing Grove Base Shield and designed for transparent wireless serial connection setup.

The Grove - CSR BC417 module is fully qualified BluetoothV2.0+EDR(Enhanced Data Rate) 2Mbps Modulation with a complete 2.4GHz radio transceiver and baseband. It uses CSR Bluecore 04-External single chip Bluetooth system with CMOS technology and with AFH(Adaptive Frequency Hopping Feature).

Features

• Fully Qualified Bluetooth V2.0+EDR 3Mbps Modulation

• Selectable baud rate

• Auto-reconnect in 30 min when disconnected as a result of beyond the range of connection

Technical details

Part List

Links

• Wiki Grove - Serial Bluetooth v3.0

• Serial Bluetooth Eagle File
• Bluetooth Software Instruction
• Bluetooth - Module Datasheet

Video
