PRODUCT DETAILS

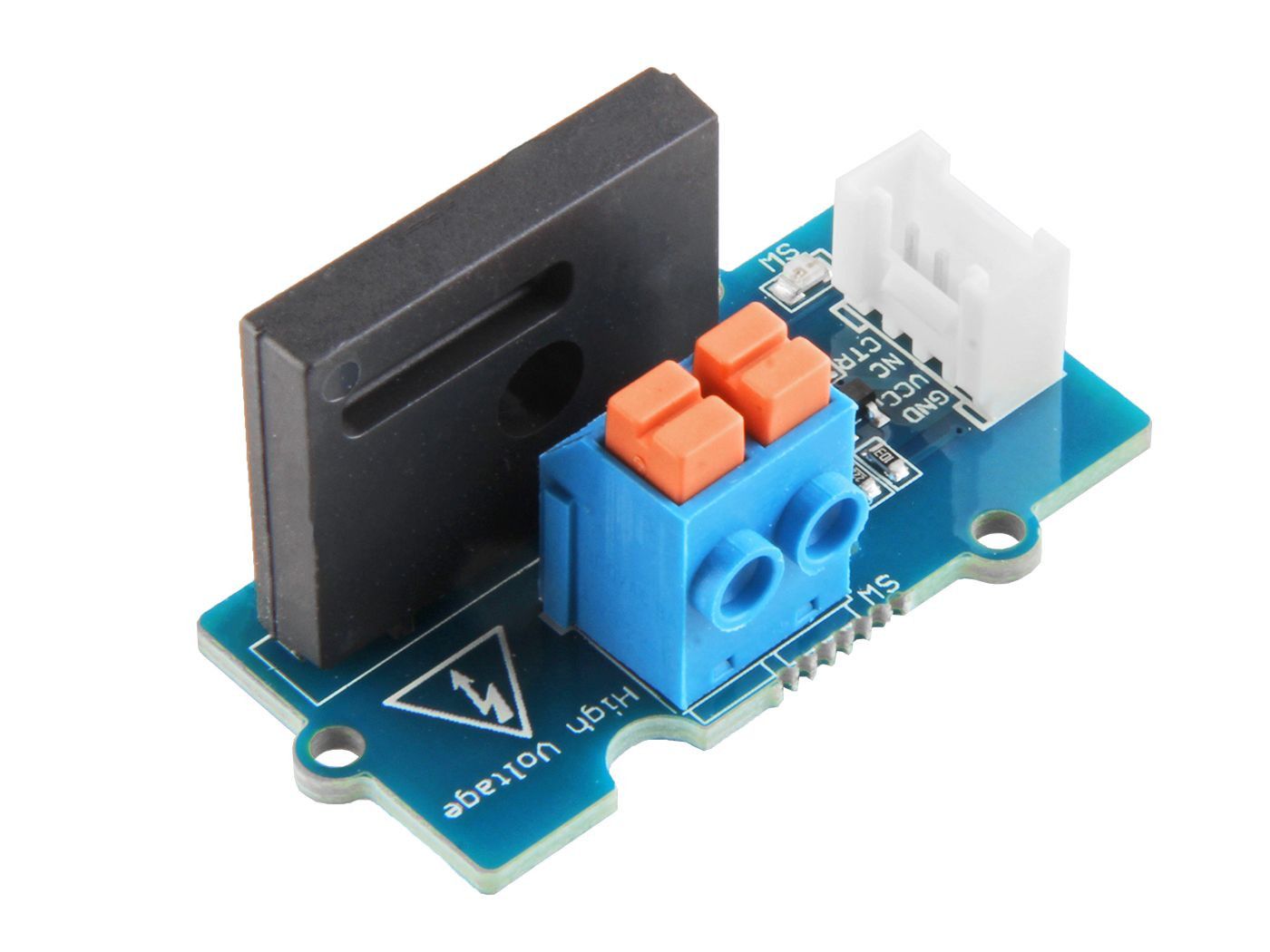

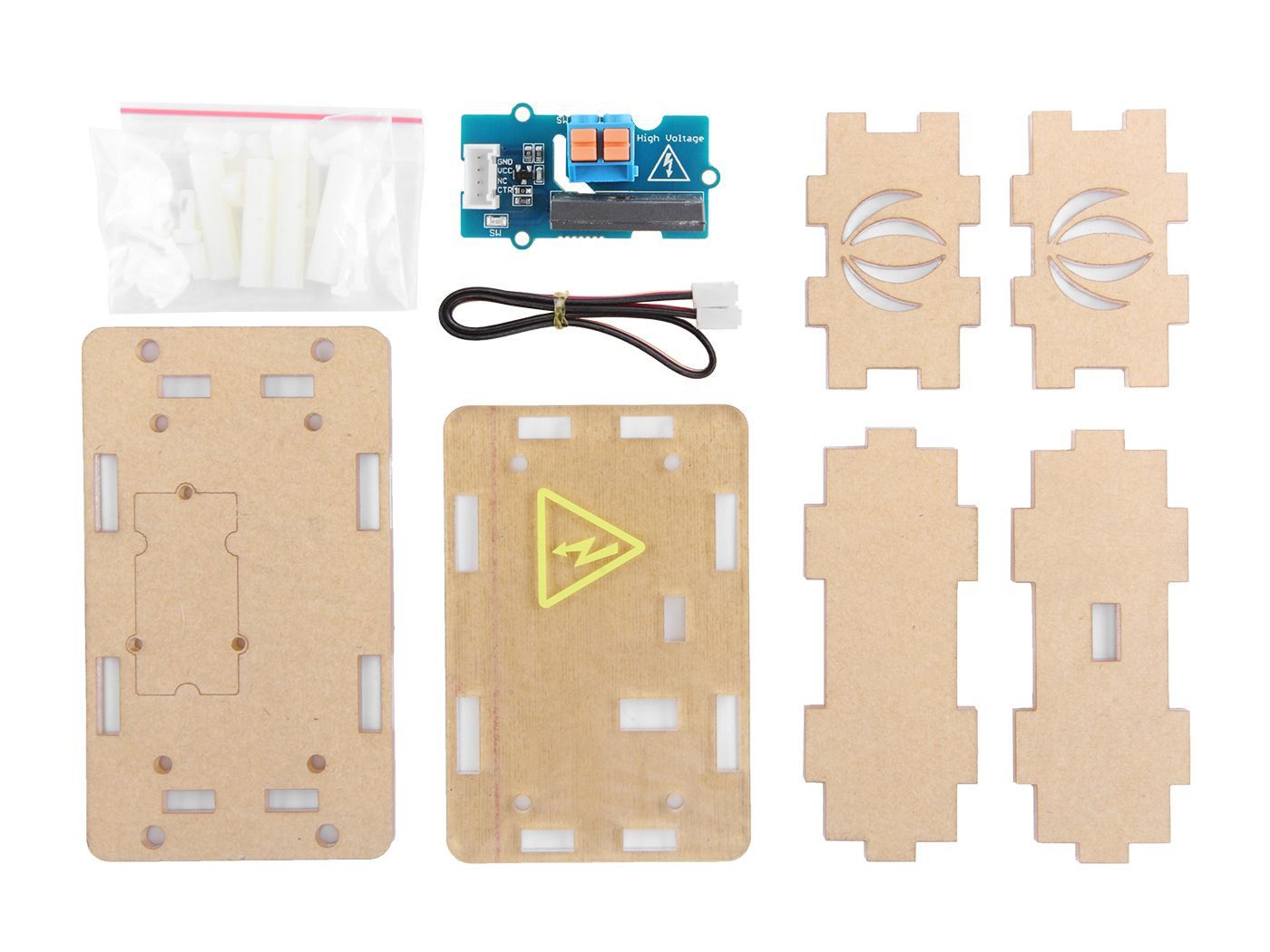

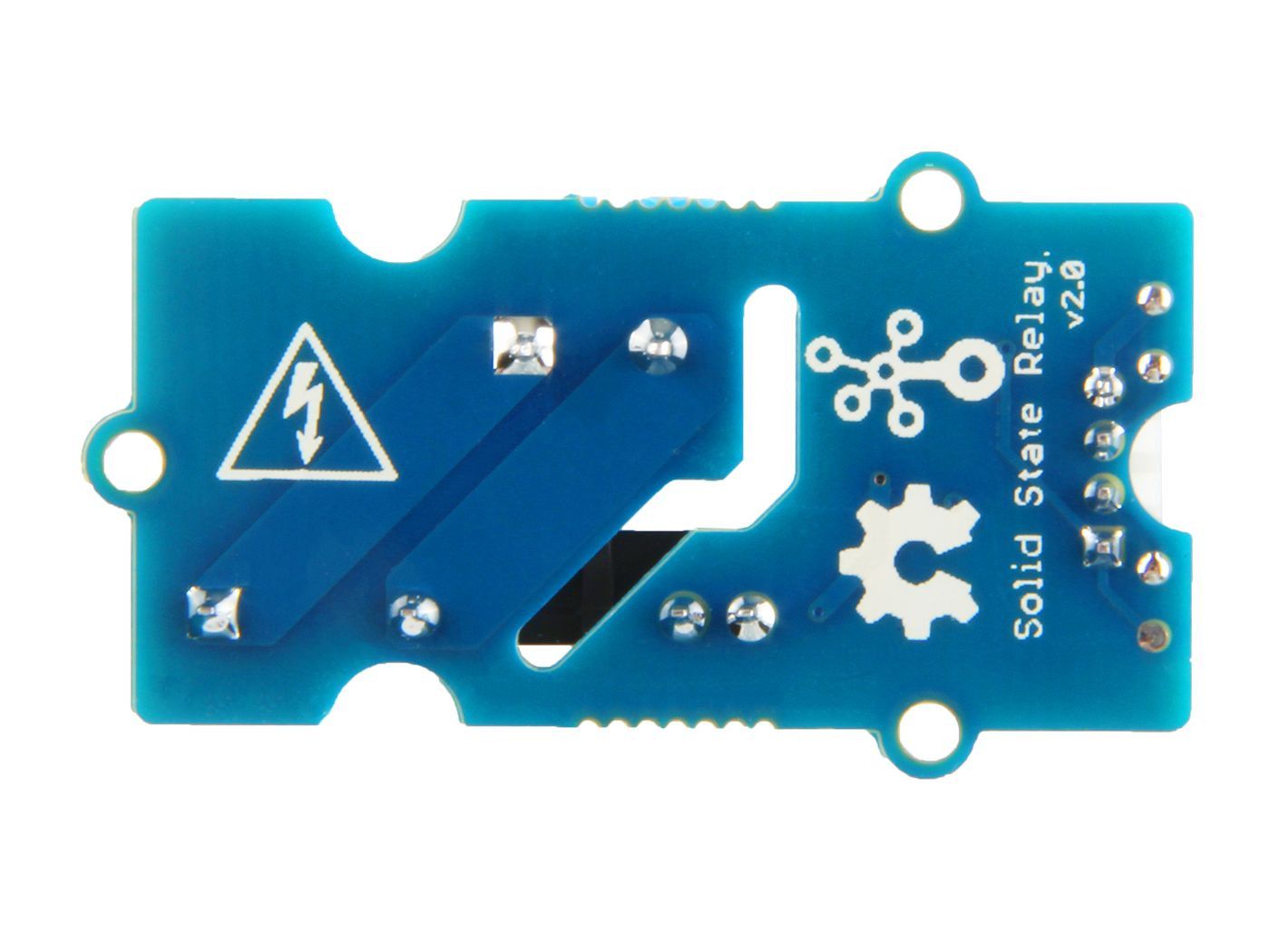

Instead of using coil, packaged solid-state relays(SSR) use power semiconductor devices such as thyristors and transistors, which provide a much faster switching speed than the mechanical relays. The Grove - Solid State Relay V2 is based on the high-quality G3MC202P module, which allows you to use a 5VDC to control MAX. 240VAC. With the help of Grove interface, it becomes very convenient to use the SSR with your arduino.

Note:

1. Please be careful when working with high voltage AC load, please do not operate with power on.
2. This relay only works with AC load, if you use DC load, once the relay is turned on, it will always stay on.
3. Due to the leakage current, we do not recommend you to use this relay with low power appliance.

Features

Advantages over mechanical relays:

1. Solid-state relays have much faster switching speeds compared with electromechanical relays, and have no physical contacts to wear out.
2. Totally silent operation.
3. No physical contacts means no sparking, allows it to be used in explosive environments, where it is critical that no spark is generated during switching.
4. Increased lifetime, even if it is activated many times, as there are no moving parts to wear and no contacts to pit or build up carbon.
5. Compact, thin-profile SSR of monoblock construction with an all-in-one lead frame incorporates a PCB, terminals and heat sink, which is much smaller than mechanical relays, and can integrate more channels.

Disadvantages:

1. When closed, higher resistance (generating heat), and increased electrical noise.
2. When open, lower resistance, and reverse leakage current.
3. Only works for AC load.

Typical Applications

• Operations that require low-latency switching, e.g. stage light control.

• Devices that require high stability, e.g. medical devices, traffic signals.

• Situations that require explosion-proof, anticorrosion, moisture-proof, e.g. coal, chemical industries.

Pin Map

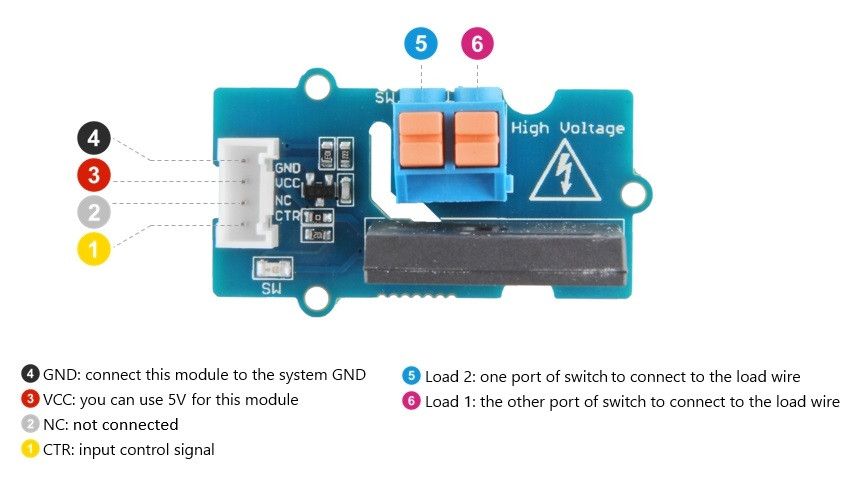

See additional pictures.
