PRODUCT DETAILS

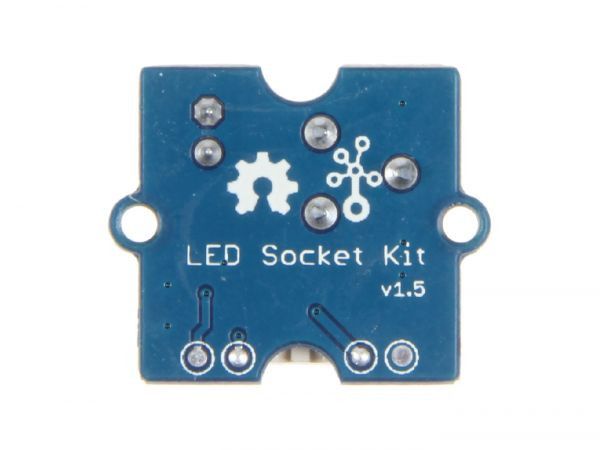

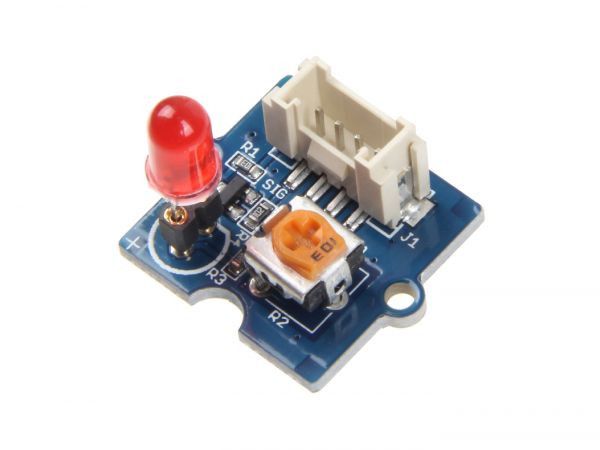

Grove - Red LED is similar to the Grove - LED module which houses an LED light source. In addition, it also has a potentiometer on board to manage the power requirements of the LED. The PCB of this module has mounting holes which can be mounted on the required surface of your prototype. For example, it can be used as a pilot lamp for indicating power or signal presence.

Features

• Support different color LEDs: The LED is plugged into the LED holder rather than soldered on the board
• On-board potentiometer adjustment: Support brightness control and a higher range of input voltages
• Easy to use: compatible with Grove port, just plug-and-play
• High Flexibility: The ingenious PCB design enables you to bend the LED to any position you want, which makes it easy to use it standalone, horizontal, or on Panel Mount(from left to right)

Technical details

Part List

Links

• Wiki  Grove-Green Led is simliar to Grove - Red LED
• Grove-Red LED Schematic
• Grove - LED Schematic file (PDF)

Video
