Description

What is a Proto Shield?

Proto shield provides a way for you to connect with Arduino and Breadboard to fast build and verify your prototypes.

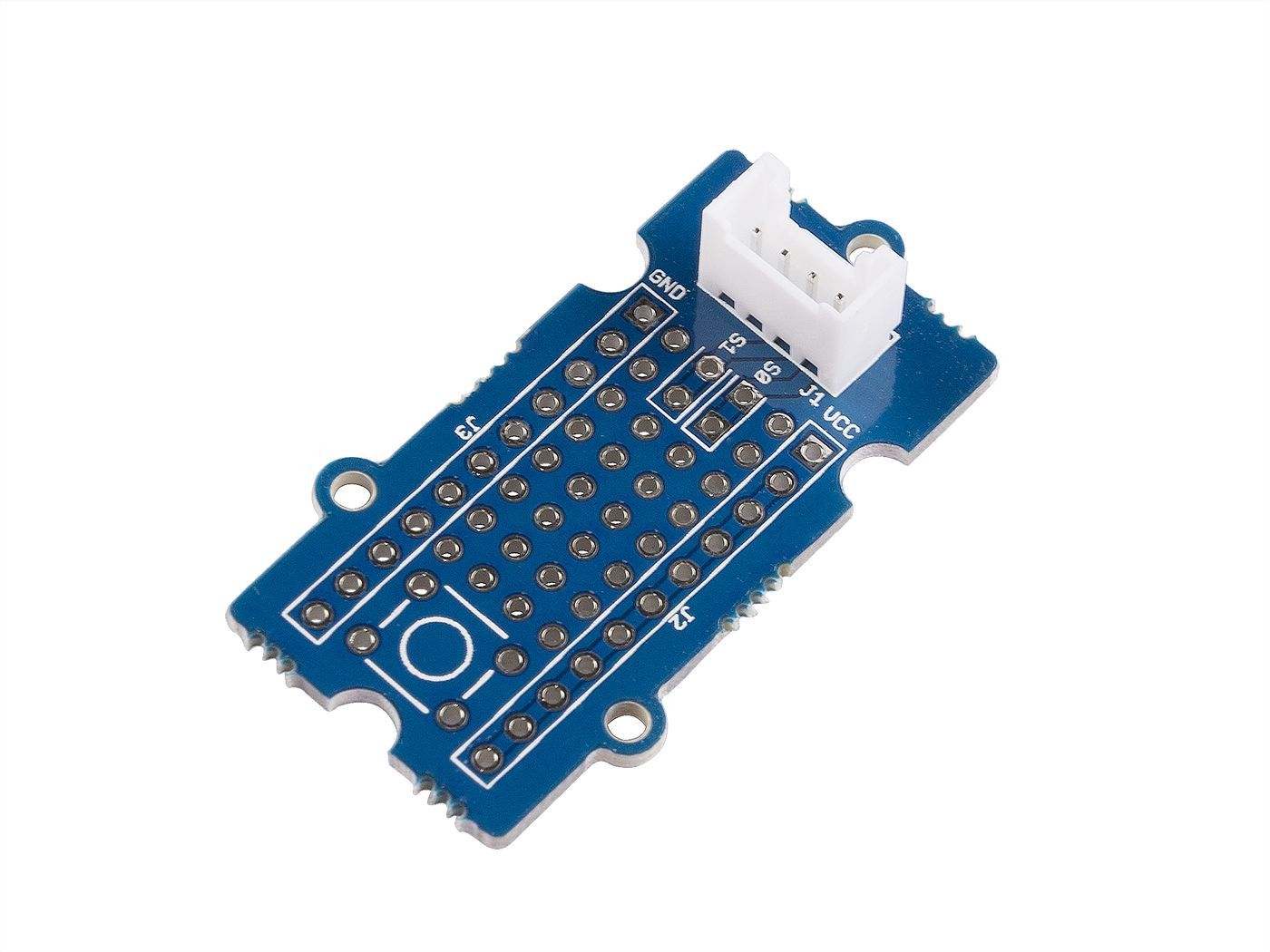

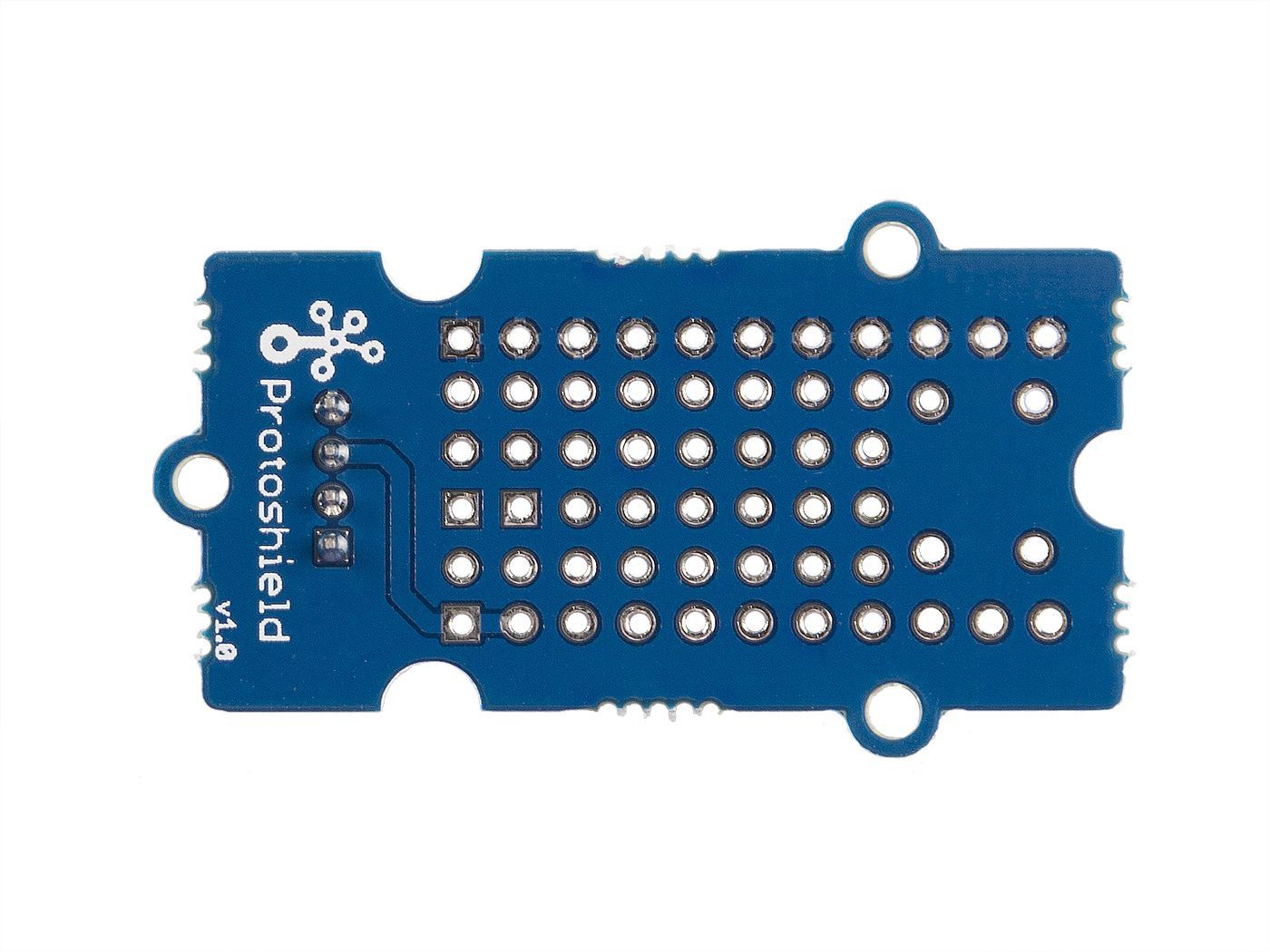

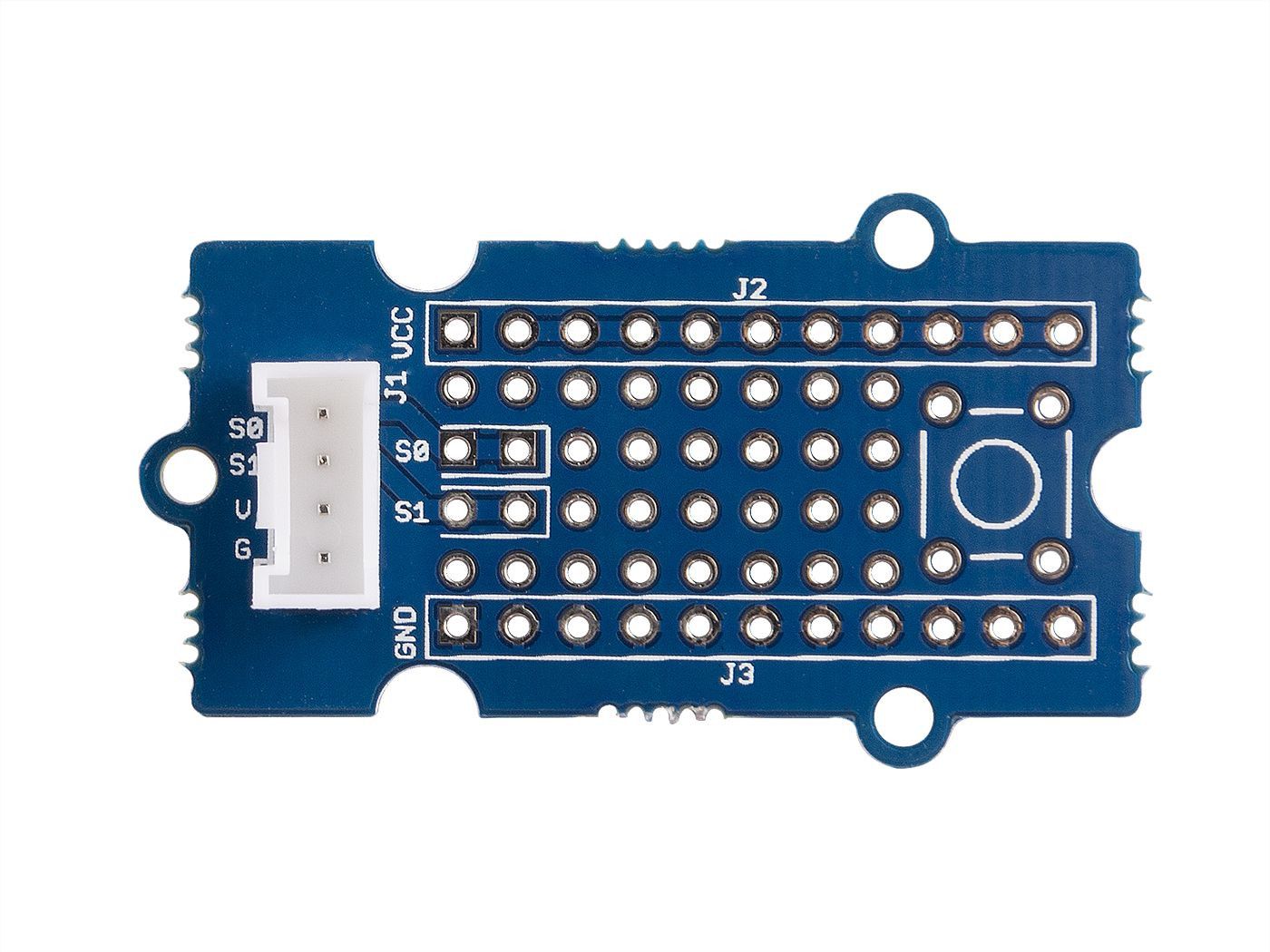

Grove - Proto Shield for Arduino allows you to add your own circuitry or components to your Grove system prototypes. You can access all four lines from the connector cable: S0, S1, VCC, and GND. There is also an extra normally-open button to take advantage of. The hole spacing makes using normal DIP-format ICs and other components very simple. You may wish to purchase more for future use in advance.

Features

• Facilitate prototyping prototyping
• Standardized Grove Interface
• Breadboard style
• Standard spacings
• Silkscreen labels
• Reserved space for the normally-open button

Links

• Grove - Protoshield
• Grove - Protoshield Eagle File
