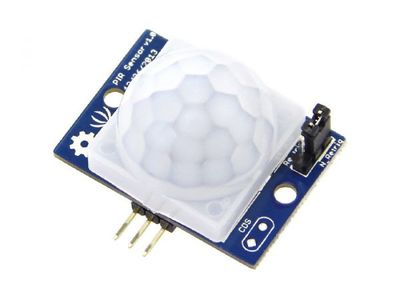

Grove PIR Motion Sensor - Large Lens version

Name: Grove PIR Motion Sensor - Large Lens version
Brand: Seeed Studio
SKU: SEEED-101020060
Price: 16.11 EUR
Availability: InStock

Varastossa alle 5 kpl

SKU#: SEEED-101020060

Grove PIR Motion Sensor - Large Lens version

Grove PIR Motion Sensor - Large Lens version

Varastossa alle 5 kpl

SKU#: SEEED-101020060

Seeed Studio 101020060 - PIR Motion Sensor - Large Lens version

16,11 €

Varastossa

Lisää kommentti tuotteesta

Nopea toimitus Suomesta

Luotettavat ja monipuoliset toimitusvaihtoehdot

Maksuvaihtoehdot

Lasku, verkkomaksut, kortit, MobilePay

Tuotekuvaus

PIR（Passive Infrared Detection）are used to detect motion of human movement. This version has a large lens which can support long range and wide angle. 2.54mm standard connector is easy to fix it anywhere.

Want to know more about how the PIR sensor works with Arduino and Raspberry pi, please click here to view the blog. If you need tutorials for operating the sensor, please click here to view the wiki.

Features

Long-range
Wide-angle
Low consumption
DC 3.0-5.5V power supplier

Specifications

Input Voltage: DC3.0-5.5V
Current: 100uA(max)
Output signal: 0,VCC (Output high when motion detected)
Sentry Angle: 120°
Connector:3Pin 2.54mm pitch
Size： L36*W26*H21(mm)

Technical details

Dimensions	45mm x35mm x19.5mm
Weight	G.W 6.5g
Battery	Exclude

Part List

PIR Motion Sensor - Large Lens version

Tuotetiedot

Saatavuus Varastossa
Valmistaja Seeed Studio
Tuotepolku Etusivu Kehityskortit Moduulit Grove Grove PIR Motion Sensor - Large Lens version
SKU SEEED-101020060
Ominaisuudet
- Paino 6.5g
- Valmistajan malli 101020060
- Klikkaa tarkemmat tiedot https://www.seeedstudio.com/PIR-Motion-Sensor-Large-Lens-version.html
- Mitat 45 x 35 x 19.5mm
