PRODUCT DETAILS

Features

• LoRa-E5 (STM32WLE5JC) embedded
• Support LoRaWAN protocol on EU868/US915 frequency band
• Ultra-long transmitting range up to 10km (Ideal value in open space)
• Easy control by AT command via UART connection
• Rapid prototyping with plug-and-play Grove interfaces
• Ultra-low power consumption and high performance

As an upgrade of Seeed Studios old version - Grove - LoRa Radio - powered by RFM95 ultra-long-range Transceiver Module, Grove LoRa-E5 embedded with LoRa-E5 STM32WLE5JC Module is a high-performance and easy-to-use wireless radio LoRa module supporting LoRaWAN protocol.

LoRa-E5 LoRaWAN STM32WLE5JC module is the major functional part integrated into Grove - LoRa-E5. It is a LoRaWAN module that embedded with ARM Cortex M4 ultra-low-power MCU core and LoRa SX126x, as the world-first combo of LoRa RF and MCU chip into one single tiny module, it supports (G)FSK, BPSK, (G)MSK, and LoRa modulations, and is FCC, CE certified. Grove - LoRa-E5 features extremely compacted size, ultra-low power consumption, low cost, and amazing performance. (Learn more about LoRa-E5)

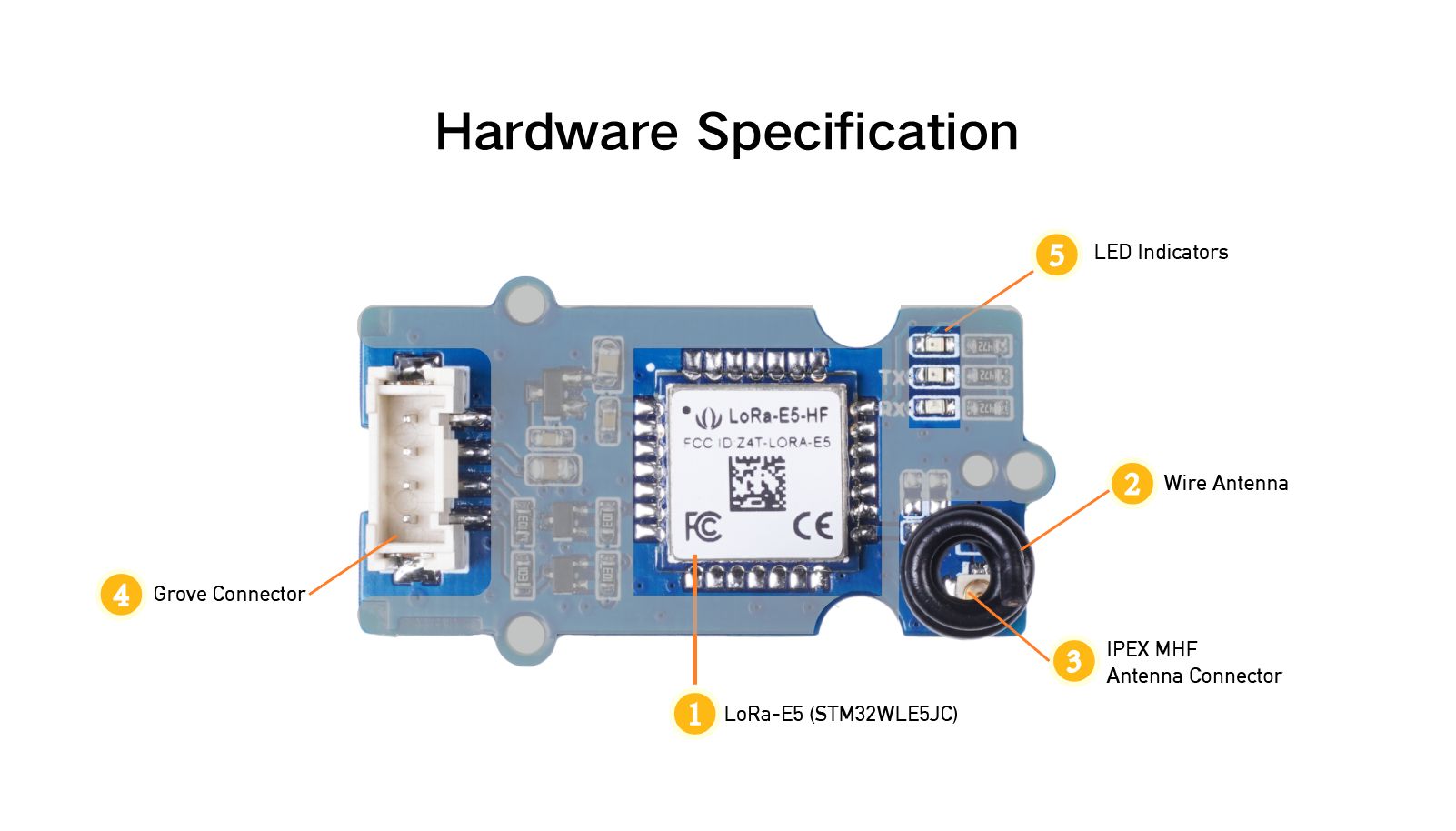

Specifications

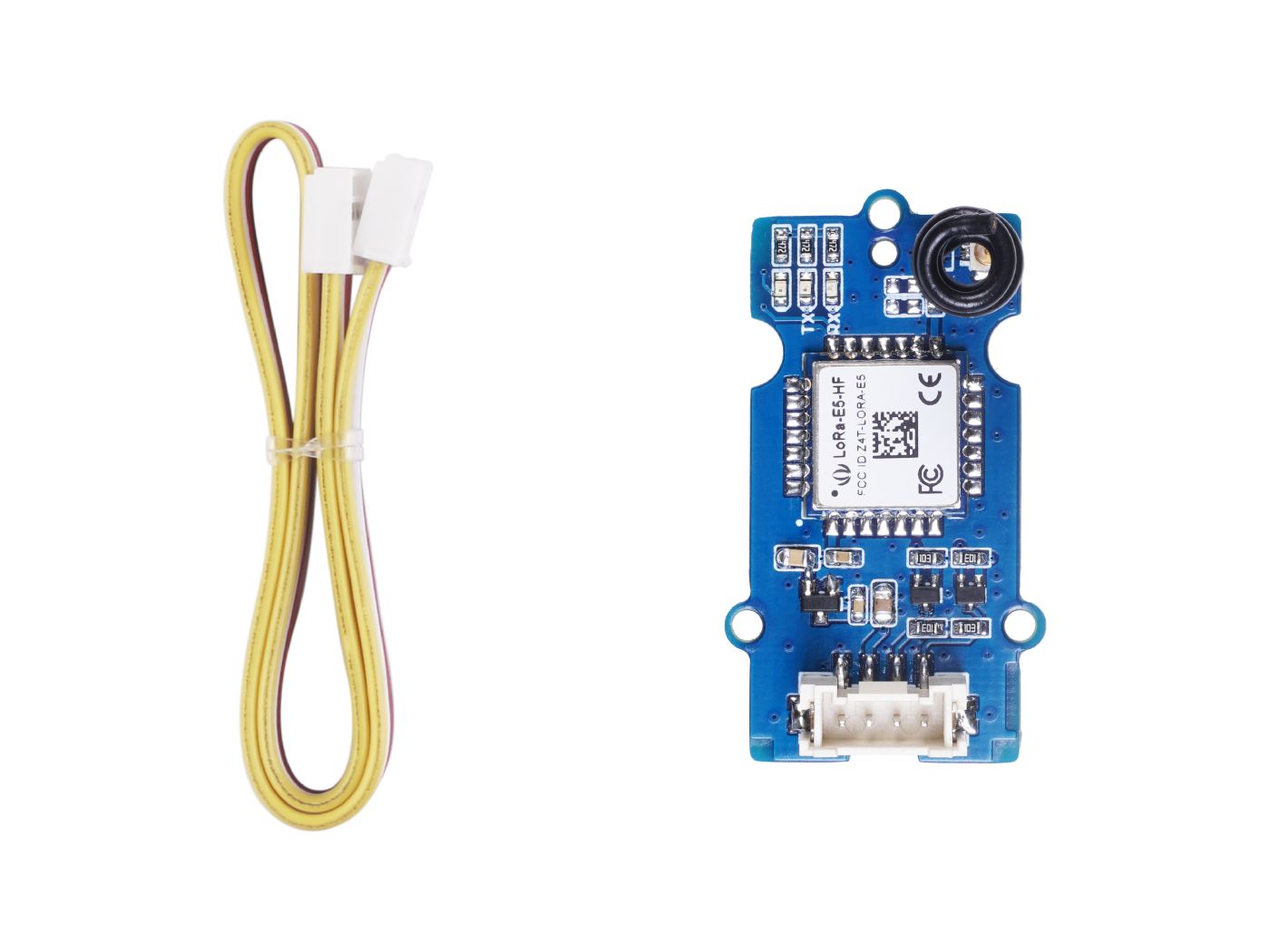

Part List

Links

• Wiki Grove - LoRa-E5 (STM32WLE5JC)
• LoRa-E5 SDK - STM32Cube MCU Package for STM32WL series

Datasheet:

• Grove LoRa-E5 v1.0.brd
• Grove LoRa-E5 v1.0.pdf
• Grove LoRa-E5 v1.0.sch
• LoRa-E5 datasheet and specifications
• LoRa-E5 AT Command Specification
• STM32WLE5JC Datasheet

Certifications:

• LoRa-E5-HF Certification CE-VOC-RED
• LoRa-E5-HF FCC Certification -DSS
• LoRa-E5-HF FCC Certification -DTS

Relevant SDK:

• STM32Cube MCU Package for STM32WL series
