PRODUCT DETAILS

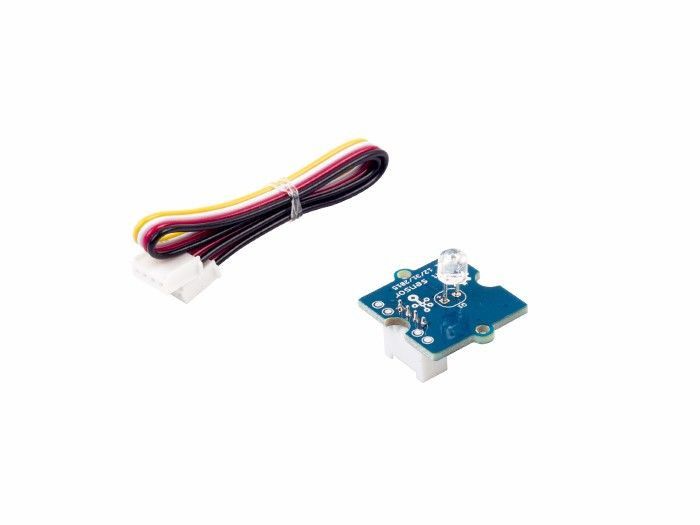

Grove - Light Sensor (P) v1.1 uses the LS06-S phototransistor as a replacement of the traditional Light Dependent Resistor (LDR) sensors. The LS06-S light sensor has much more linear analog output conforming to illuminance, which ranges from 0 to the supplying voltage (normally 5V). A value equals to the supplying voltage can be detected when it’s exposed to daylight, and it gives 0V when you covered it with your hand.

Features

• linear analog output conforming to illuminance
• Low dark current and low working lux
• Easy to use

Specifications

• Power supply: 3.3 - 5V DC
• Phototransistor: LS06-S

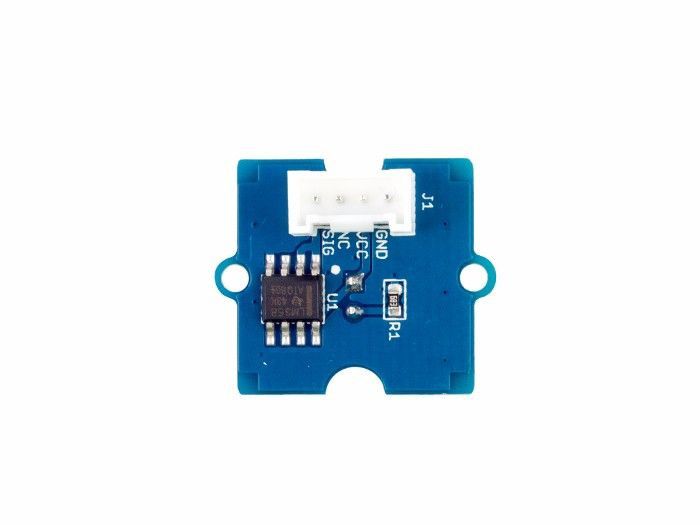

• Connector: 4 pin Buckled Grove interface

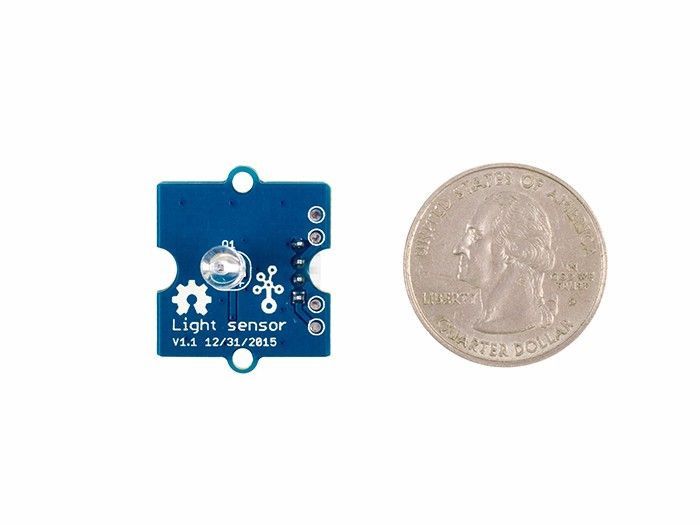

• Dimension: 20mm*20mm

Documents

For all Grove users (especially beginners), Seeed Studio provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.

Technical details

Part List
