PRODUCT DETAILS

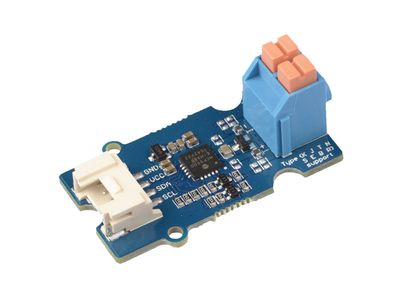

The Grove - I2C Thermocouple Amplifier (MCP9600) is a thermocouple-to-digital converter with integrated cold-junction and I2C communication protocol. This module is designed to be used in conjunction with a k-type thermocouple. The thermocouples have a much larger measurement range than thermistors.

We also provide the alert function for this module, you can use the progarammable alert pin to provide an interrupt signal to the controller.

Again, this module can't work alone, it must work with a K-type thermocouple.

Note

Check out the Grove Selection Guide and hope to help you find the Grove suit you best.

Features

• Integrated Cold-Junction Compensation
• Supported Types (designated by NIST ITS-90): Type K, J, T, N, S, E, B and R
• Four Programmable Temperature Alert Outputs:
  • Monitor Hot- or Cold-Junction
  •  temperatures
  • Detect rising or falling temperatures
  • Up to 255°C of Programmable Hysteresis

• Programmable Digital Filter for Temperature
• Low Power

Applications

• Petrochemical Thermal Management
• Hand-Held Measurement Equipment
• Industrial Equipment Thermal Management
• Ovens
• Industrial Engine Thermal Monitor
• Temperature Detection Racks

Technical details

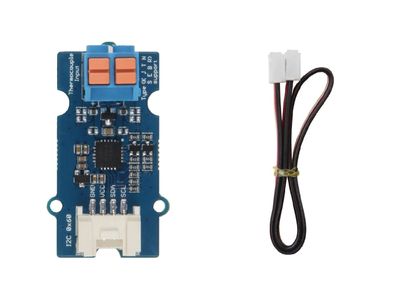

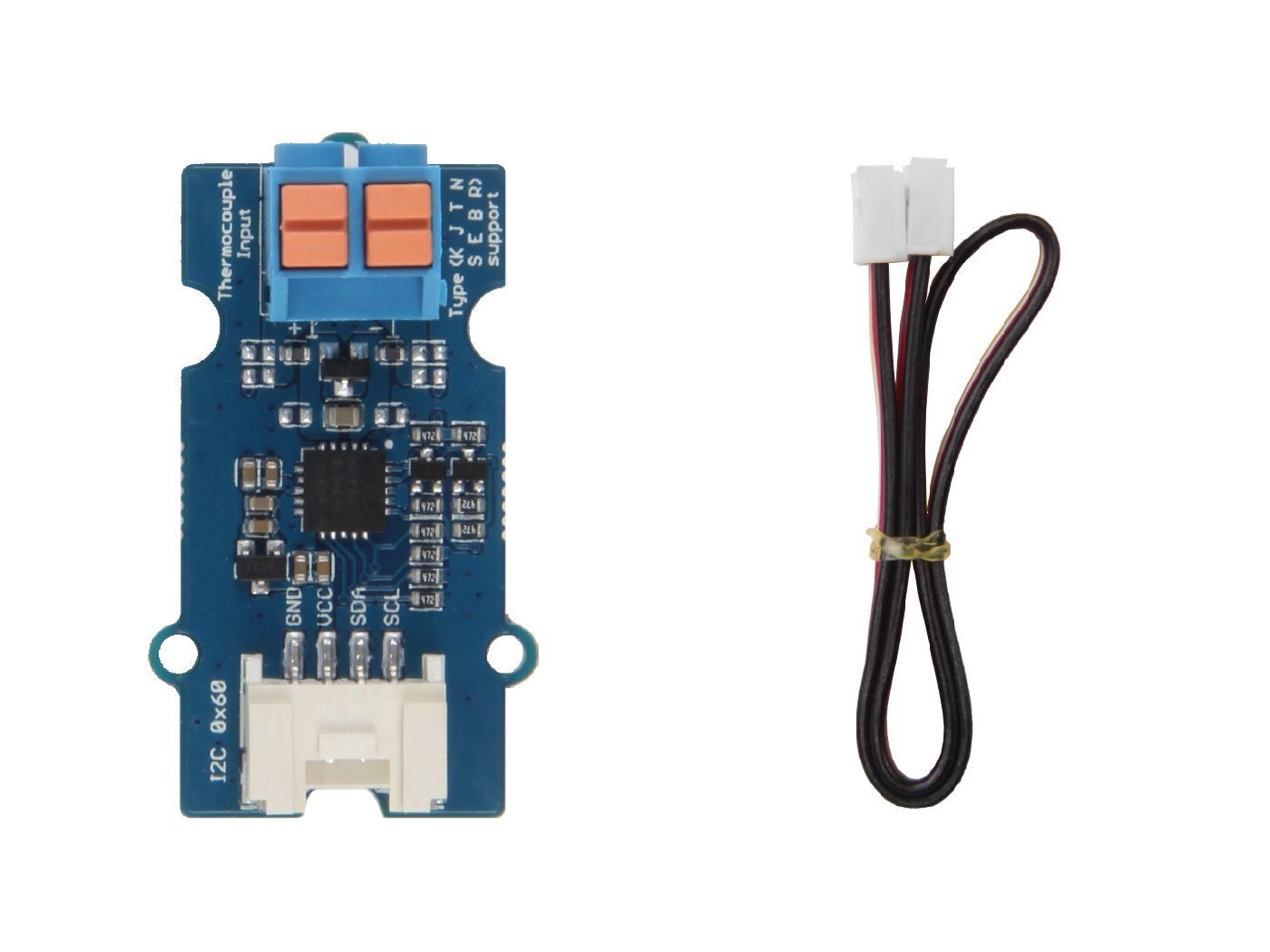

Part List

Links

• Wiki Grove - I2C Thermocouple Amplifier (MCP9600)
• Grove Selection Guide
