Grove - I2C High Accuracy Temp&Humi Sensor(SHT35), temperature, humidity, temperature sensor, humidity sensor, Temperature&Humidity, Temperature and Humidity

PRODUCT DETAILS

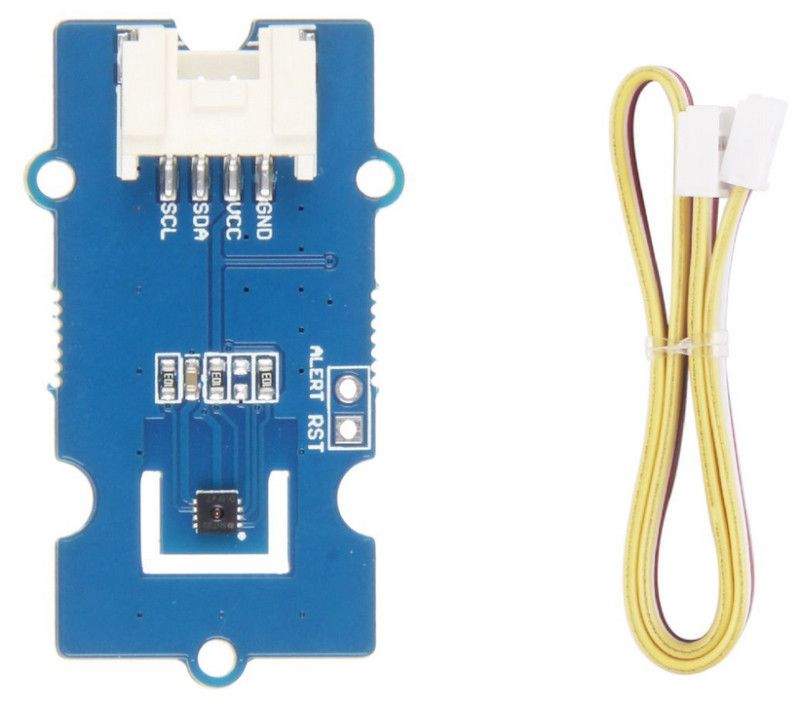

Grove - I2C High Accuracy Temp&Humi Sensor(SHT35) is based on SHT3x-DIS, which is the next generation of Sensirion’s temperature and humidity sensors. It builds on a new CMOSens® sensor chip that is at the heart of Sensirion’s new humidity and temperature platform. The SHT3x-DIS has increased intelligence, reliability and improved accuracy specifications compared to its predecessor. Its functionality includes enhanced signal processing, two distinctive and user selectable I2C addresses and communication speeds of up to 1 MHz.

Features

• High accuracy of ±1.5 %RH and ±0.1 °C

• Fully calibrated, linearized, and temperature compensated digital output

• I2C Interface with communication speeds up to 1MHz and two user selectable addresses

• Very fast start-up and measurement time

Typical Applications

• Industrial Freezers and Refrigerators

• Food Processing

• Personal Computers and Servers

• PC Peripherals

• Consumer Electronics

• Handheld/Portable Devices

Technical details

Part List

Links

• Wiki Grove - I2C High Accuracy Temp&Humi Sensor (SHT35)
• Grove - I2C High Accuracy Temp&Humi Sensor(SHT35) Eagle Files
• Seeed SHT35 Library
• Datasheet SHT3x-DIS

Video
