PRODUCT DETAILS

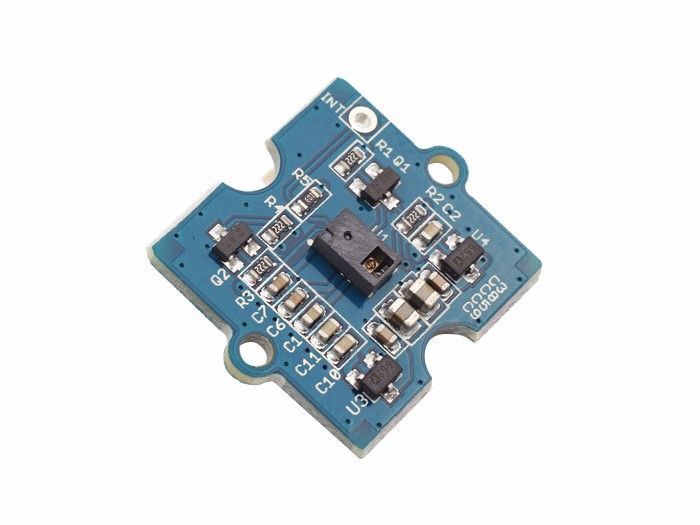

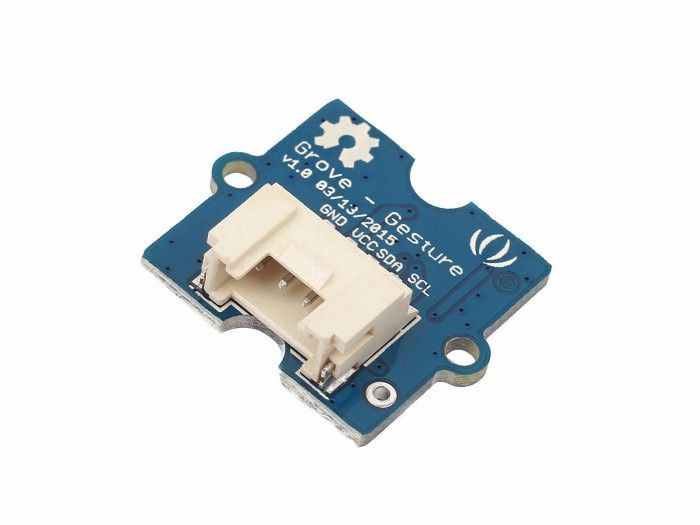

Grove - Gesture is based on PAJ7620U2 that integrates gesture recognition function with general I2C interface into a single chip. It can recognize 9 gestures including moving up, moving down, moving left, moving right, etc with a simple swipe by your hand.

Following is a video which using Gesture sensor with a matrix to display the direction of the hand.

You can use the gesture to adjust the sound volume, control a robot. You can also make a remote-control unit, which is able to operate many devices at the same time using gestures

FEATURES

• 9 gestures recognition

• Built-in proximity detection

• Various mainboards support: Arduino UNO/Seeeduino/Arduino Mega2560

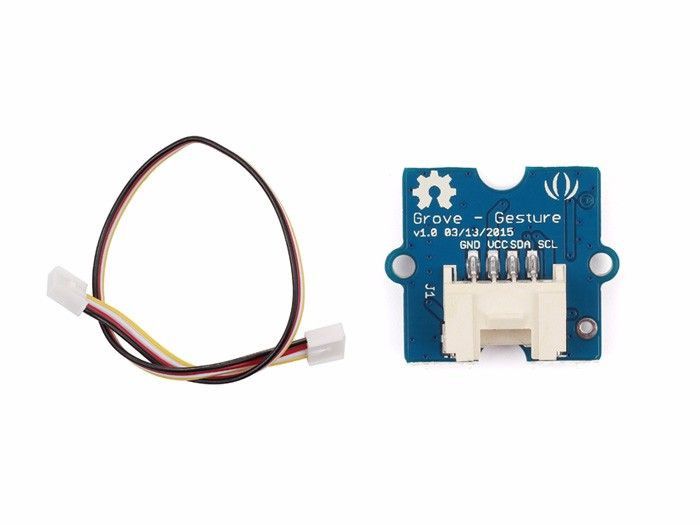

PART LIST

• 1x PCBA-Grove - Gesture

• 1x 26AWG Grove Cable;SA206120099A

SPECIFICATIONS

• Interface: IIC

• 13 gesture recognition

• Operating Power:5V

• Dimensions:20*20mm

• Sensor: PAJ7620U2

• Detecting range: 5 – 10cm

• Ambient light immunity: < 100k Lux

• Gesture speed mode: Normal and Gaming

Technical details

Part List

Links

• Wiki Grove - Gesture（PAJ7620U2

• Grove - Gesture_v1.0 sch pcb.zip
• PAJ7620U2_Datasheet_V0.8_20140611.pdf
• Library Grove - Guesture
