PRODUCT DETAILS

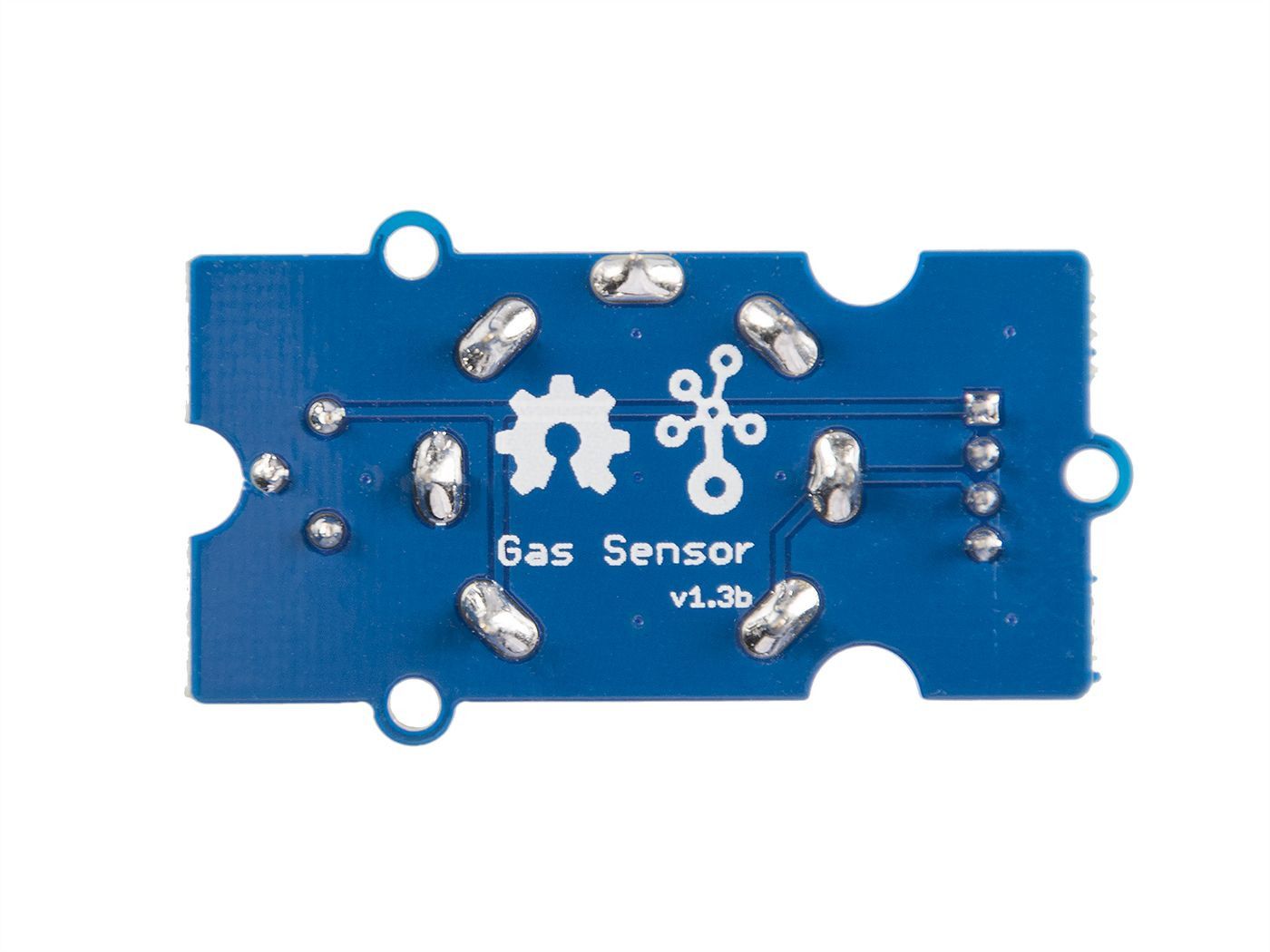

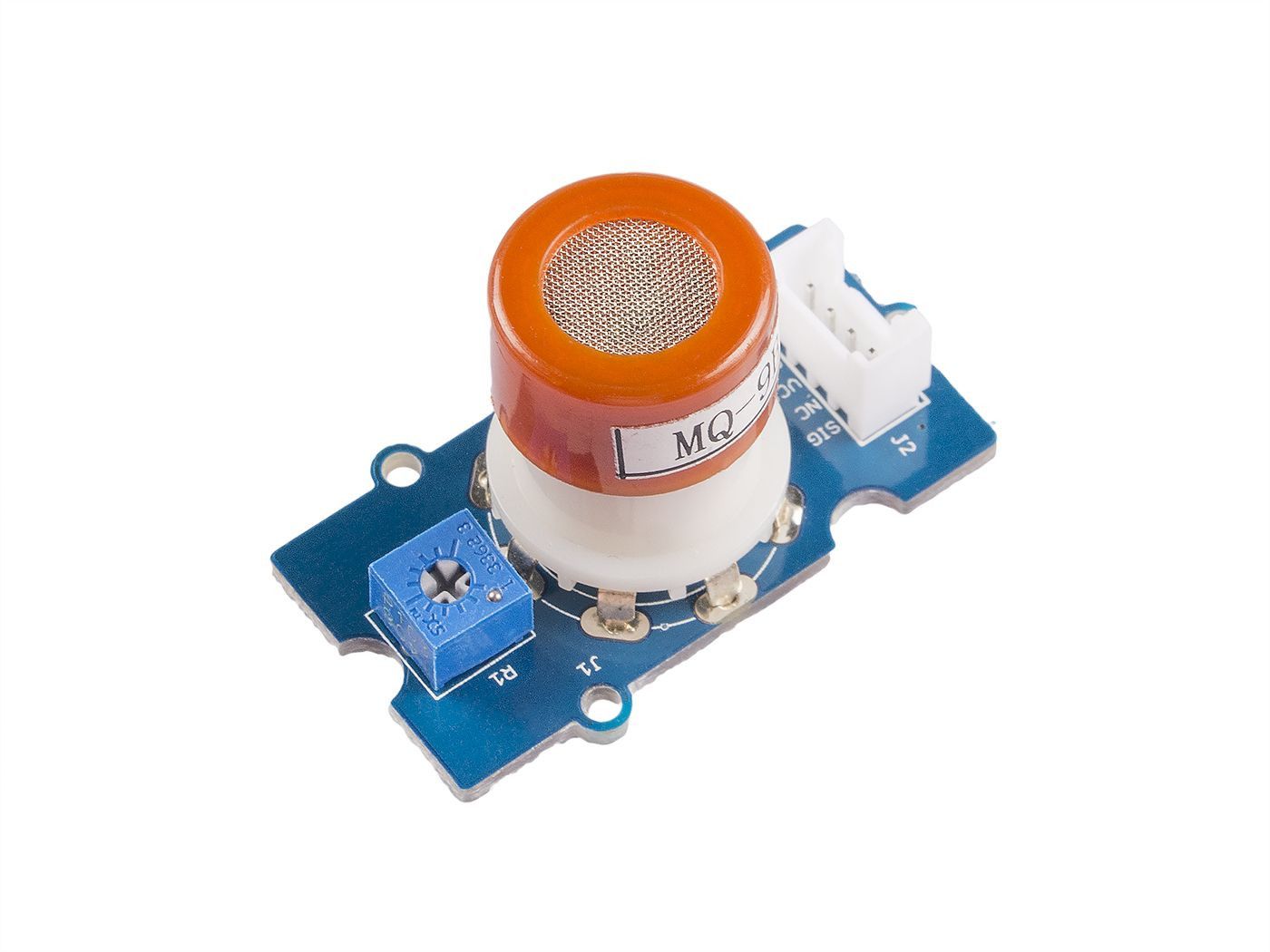

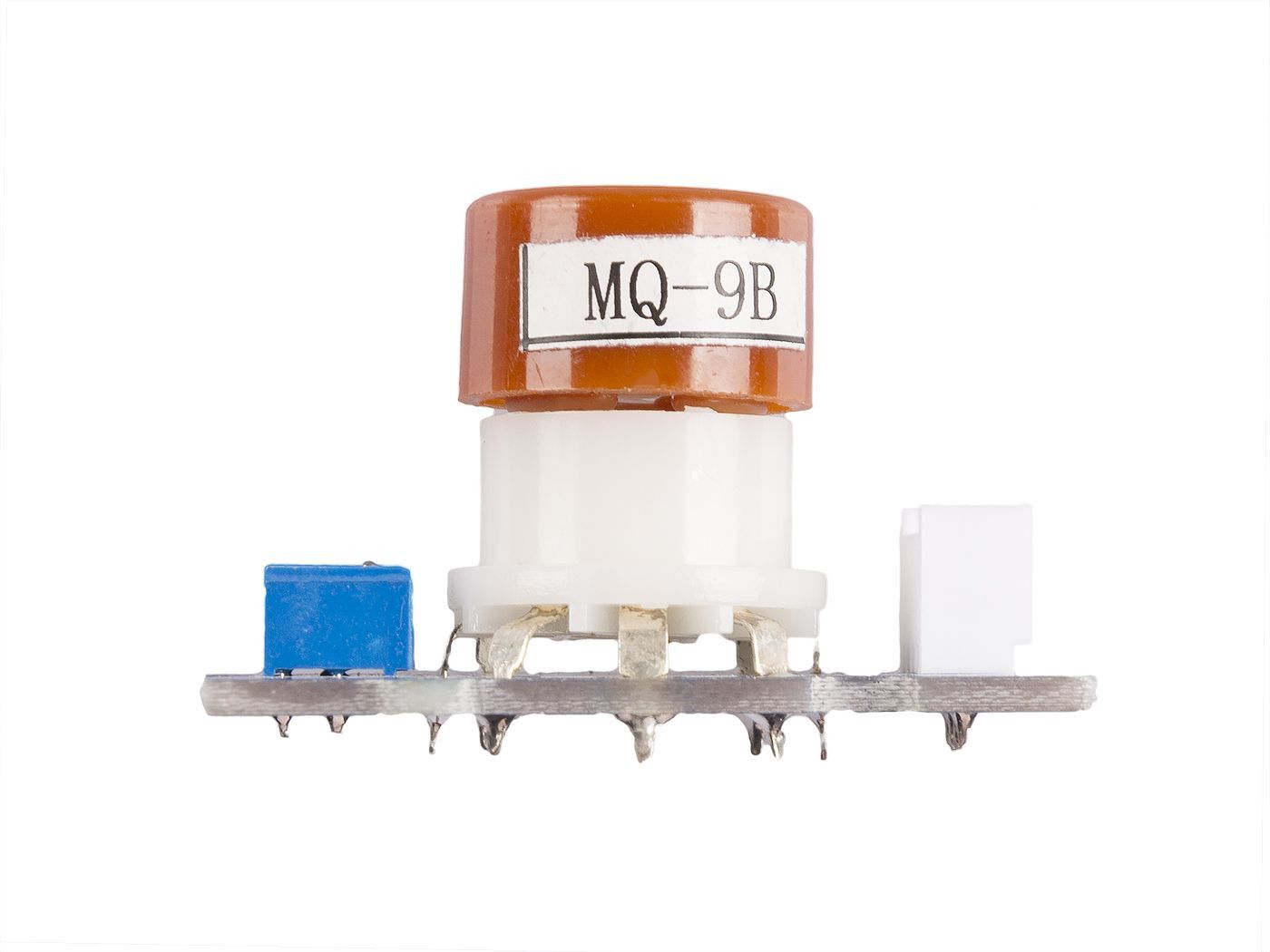

The Grove - Gas Sensor module is useful for gas leakage detecting(in home and industry). It can detect LPG, i-butane, methane, alcohol, Hydrogen, smoke and so on. Measurements can be taken as soon as possible based on its fast response time. Also, the sensitivity can be adjusted by the potentiometer.

Each Grove - Gas Sensor Kit consists of one gas sensor base and four detectors, including MQ2, MQ3, MQ5, and MQ9. Below is a contrast table of them. You can switch the detector on the base according to specific target gases.

Note - Hot-swapping the grove may lead to IC burnout, please turn off the power of the main board before swapping grove.

Features

• High sensitivity to Combustible gas in wide range

• Stable performance, long life, low cost

• Fast response

• Wide detection range

• Simple drive circuit

Technical details

Part List

Links

• Wiki Grove - Gas Sensor(MQ9)
• Seeed Gas Sensor Selection Guide
• Grove Selection Guide

• How to choose a Gas Sensor
• What's LEL
• Grove Gas Sensor - EAGLE (Schematic and Board) files
• Grove Gas Sensor - PDF Schematic
• MQ-9 Datasheet
