Grove Carbon Dioxide Sensor (MH-Z16)

Name: Grove Carbon Dioxide Sensor (MH-Z16)
Brand: Seeed Studio
SKU: SEEED-101020067
Price: 50.06 EUR
Availability: OutOfStock

Ei varastossa

SKU#: SEEED-101020067

Outlet

Grove Carbon Dioxide Sensor (MH-Z16)

Ei varastossa

SKU#: SEEED-101020067

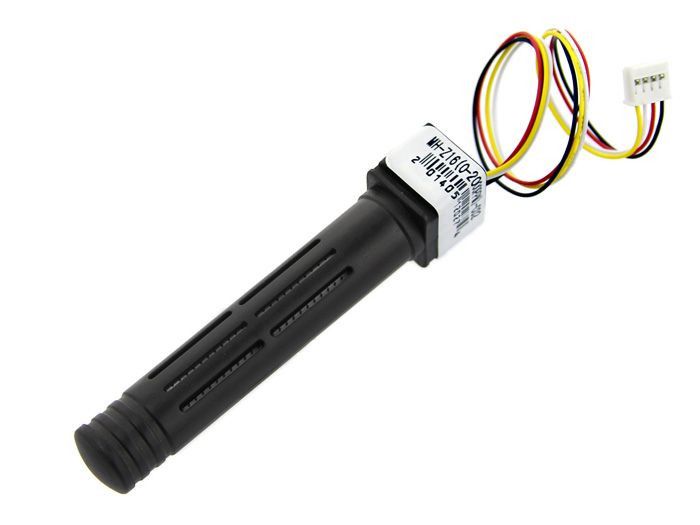

Seeed Studio 101020067 - Grove Carbon Dioxide Sensor (MH-Z16) is a high sensitivity, high precision and non-dispersive infrared digital temperature sensor with compensation, UART output.

Tämä tuote on loppuunmyyty!

Tutustu muihin tuotteisiin merkiltä Seeed Studio

Lisää kommentti tuotteesta tilaukselle

Nopea toimitus Suomesta

Luotettavat ja monipuoliset toimitusvaihtoehdot

Maksuvaihtoehdot

Lasku, verkkomaksut, kortit, MobilePay

Tuotekuvaus

PRODUCT DETAILS

The Grove - CO2 Sensor module is an infrared CO2 sensor high sensitivity and high resolution. Infrared CO2 sensor MH-Z16 Is a general-purpose, small sensors, the use of non-dispersive infrared (NDIR) Present in the principle of the air CO2 Detect, with good selectivity, oxygen-dependent, long life， built-in temperature sensor, temperature compensation ，with UART output, easy to use. It can be widely used in HVAC and indoor air quality monitoring, industrial process monitoring and security, agriculture and livestock production process monitoring.

Note

The sensor value only reflects the approximated trend of gas concentration in a permissible error range, it DOES NOT represent the exact gas concentration. The detection of certain components in the air usually requires a more precise and costly instrument, which can not be done with a single gas sensor. If your projects aim to obtain the gas concentration at a very precise level, then we do not recommend this gas sensor.

Technical details

Dimensions	100mm x150mm x20mm
Weight	G.W 26g
Battery	Exclude
Measuring Range	0-2000 parts per million (PPM)
Resolution	1 PPM 0-2000 parts per million (PPM)
Accuracy	200 PPM
Warm up time	3 minutes
Response Time	<90s
Operating Temperature	0 to 50℃
Operating Humidity	0% ~ 90% RH
Storage Temperature	- 20-60℃
Operating Voltage	4.5 V to 6 V DC
Maximum Current	100 mA
Average Current	≤50 ma
Output Mode	UART

Part List

Grove - CO2 Sensor	1
Grove Cable	1

Tuotetiedot

Saatavuus Tilapäisesti loppu varastosta
Valmistaja Seeed Studio
Tuotepolku Etusivu Kehityskortit Moduulit Grove Grove Carbon Dioxide Sensor (MH-Z16)
SKU SEEED-101020067
Ominaisuudet
- Paino 26g
- Valmistajan malli 101020067
- Klikkaa tarkemmat tiedot https://www.seeedstudio.com/Grove-Carbon-Dioxide-Sensor-MH-Z16.html
- Mitat 100 x 150 x 20 mm
- Paino 26g
- Valmistajan malli 101020067
- Klikkaa tarkemmat tiedot https://www.seeedstudio.com/Grove-Carbon-Dioxide-Sensor-MH-Z16.html
- Mitat 100 x 150 x 20 mm
