ESP32-S2-WROVER and ESP32-S2-WROVER-I use ESP32-S2 chip. The ESP32-S2 chip is equipped with an Xtensa® 32-bit LX7 single-core processor with a working frequency of up to 240 MHz. The user can turn off the power of the CPU and use the low-power coprocessor to monitor the status change of the peripheral or whether some analog quantities exceed the threshold. ESP32-S2 also integrates a wealth of peripherals, including SPI, I2S, UART, I2C, LED PWM, LCD interface, Camera interface, ADC, DAC, touch sensor, temperature sensor and up to 43 GPIOs, as well as a full-speed USB 1.1 On-The-Go (OTG) interface.

ESP32-S2-WROVER uses PCB board antenna, ESP32-S2-WROVER-I uses IPEX antenna. Both modules are equipped with 4 MB SPIflash and 2 MB SPI PSRAM.

Features

• Single-core 32-bit Wi-Fi MCU
• Excellent safety performance
• Powerful function, wide range of uses
• Rich peripheral interfaces
• Low power consumption

Applications

• Universal low-power IoT sensor hub
• Universal low-power IoT data logger
• Camera video streaming
• OTT TV box/set-top box equipment
• USB device
• Speech Recognition
• Home automation
• Smart home control panel
• Wi-Fi toys
• Wearable electronics

Package List

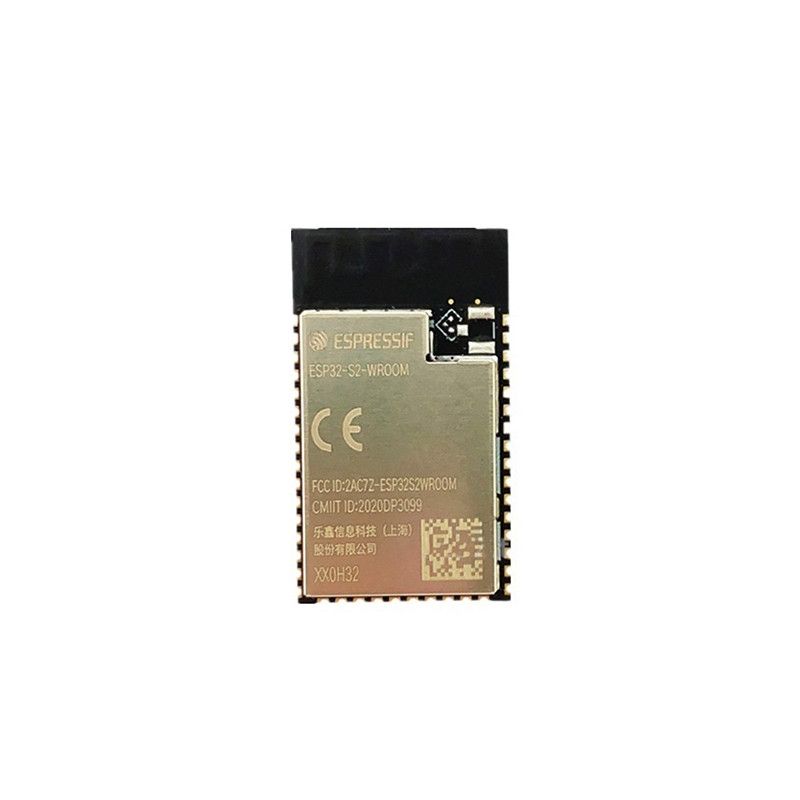

• ESP32-S2-WROOM (PCB with antenna) x 1

Wiki & External link

• User manual
