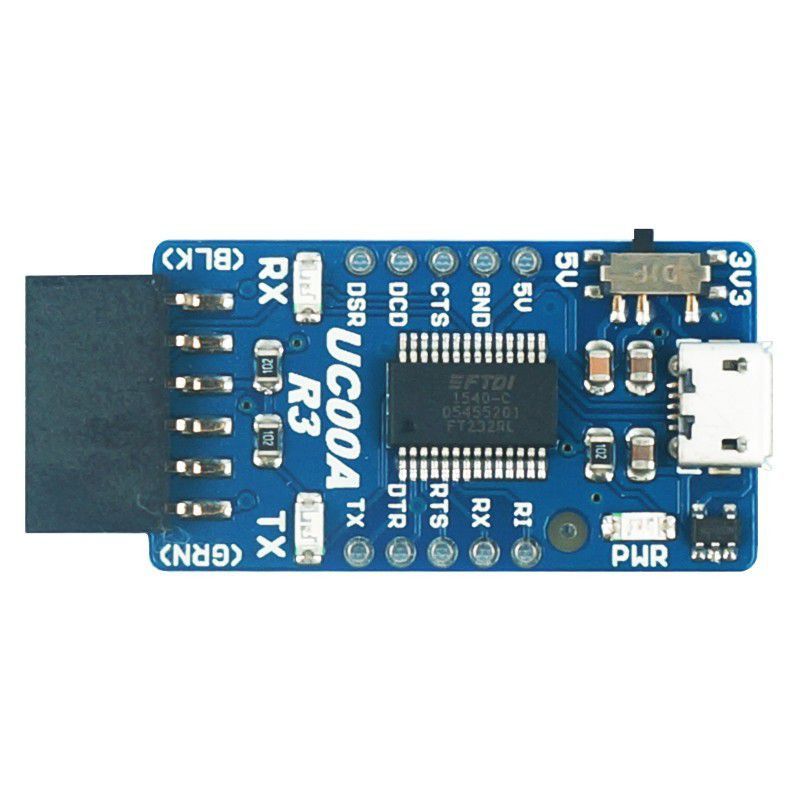

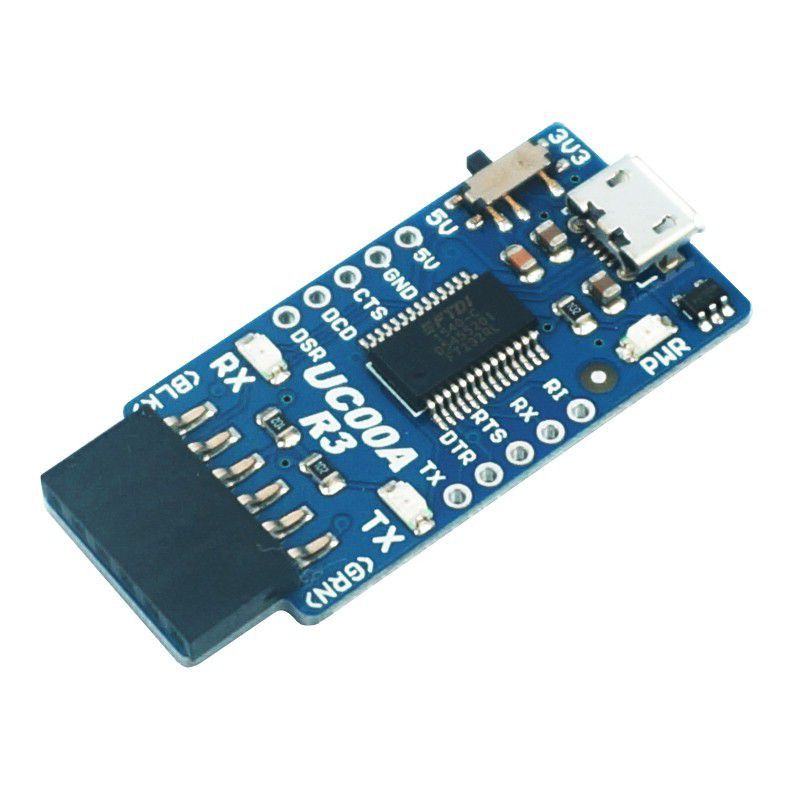

Yet, serial port on computer has been phased out and replaced by USB. Therefore, Cytron decided to develop a USB to UART converter which offers USB plug and play, direct interface with a microcontroller and it provides 5VDC supply from the USB port. Rev3.0 added 3.3V voltage regulator (max output current 500mA), and a slide switch to choose 5V or 3.3V for logic and Vsel level. It also utilises the commonly used USB microB socket, grab the USB microB cable if you do not have one yet.

Features

• Uses the market leader in USB to Serial IC, FTDI FT232RL
• Easy, plug and use USB to UART converter
• Aiming development between computer and microcontroller, 3.3V or 5V logic
• USB powered, no external source is required
• 5V from USB port is available for the user, via Vsel
• Configurable logic level of 3.3V or 5V for UART interface
• CTS, RTS, DTR and DSR are extended out to standard header pin solderable PCB pads (side)
• Plug and Play, the driver is needed for 1st time user only.
• Rev3.0 have 6 ways header socket for bootloading code into Arduino compatible board:
  • BBFuino
  • PROMINI
  • Fio
  • ArduPilot
• Dimension: 45.2 x 21.3 x 4.2 mm
