Features

• DC Brush motor Driver, not for brushless motor
• Input Voltage (Motor): 7 - 45VDC
• Single power operation, just connect power to battery input.
• Dual Channels, it can drives two brush motor independently, or mixed.
• Regenerative Braking.
• Operating modes: RC (RC servo signal), Analog, PWM, simplified and packetized UART.
• Support Signed magnitude and Locked Anti-phase in PWM mode.

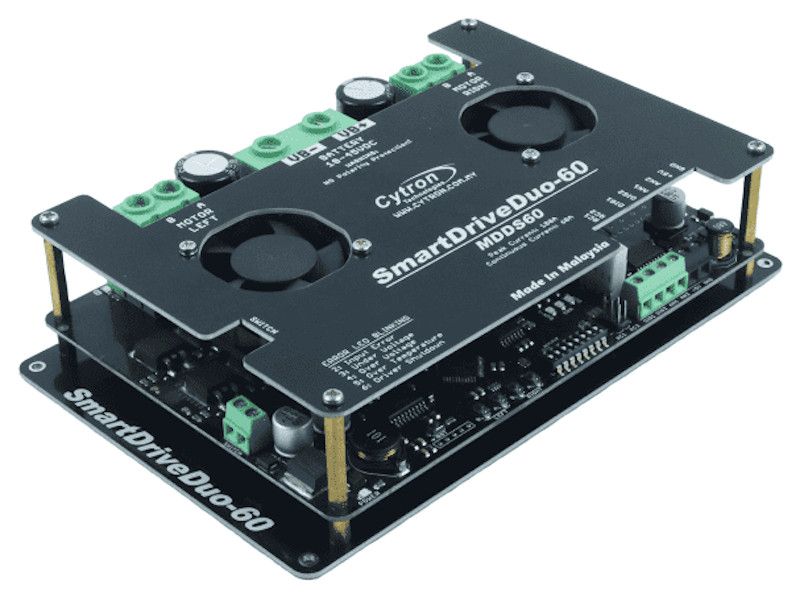

• Top cover comes with two DC brushless fans to cool the driver.
• Two manual/test buttons for each channel.
• Two output indicator LEDs for each channel.
• Power, Error indicator, RUN status (Left and Right) LEDs
• On board reset button to restart the MCU after changing operation mode.
• Temperature feedback for current limit and prevent overheating of MOSFET.
• Support up to 60A continuous current at room temperature.
• Support up to 100A peak for 1 second. Current will be limited as temperature raises.
• Suitable for combat or sumo robot.
• 16KHz switching frequency for quiet operation.
• On board switching voltage regulator for higher power efficiency.
• Battery low voltage monitoring mode.
• We have tried this driver with single power window motor at 24V, full load without smoke coming out :)
• NO polarity protection, please double check the power input connection.
• Do use proper cable/wire for the battery and load, thin/normal cable/wire will melt and burn.
• Dimension: ~190mm x 121mm x 45mm.

Specifications

Links

• MDDS60 Quick Start Guide
• MDDS60 User's Manual
• Arduino Library and Example (Github)

Video
