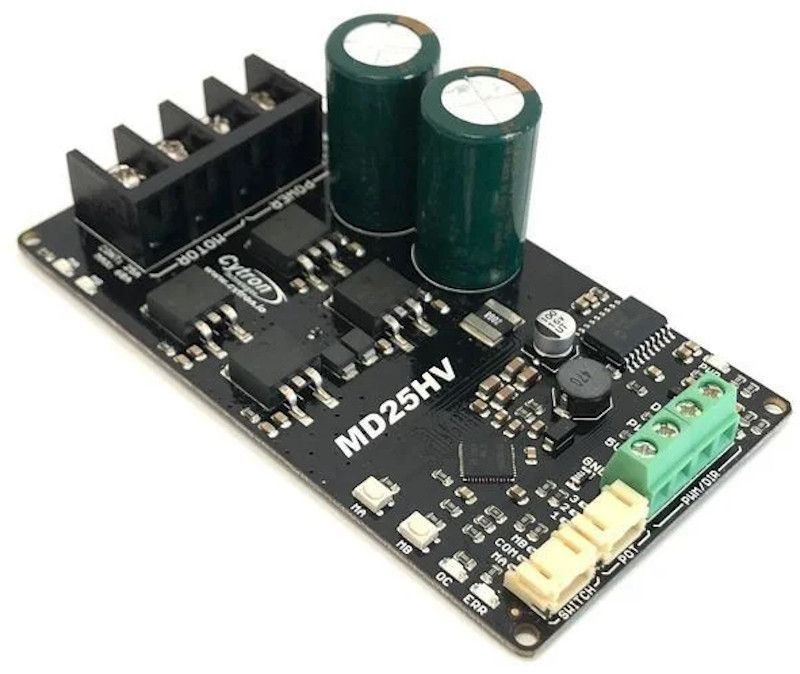

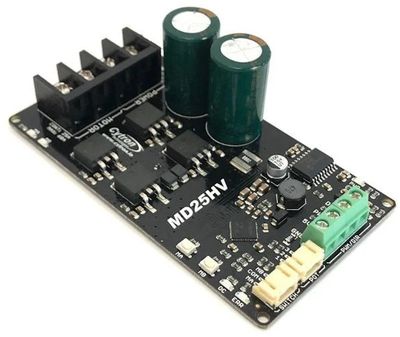

The MD25HV is a high-voltage single-channel bidirectional motor driver for brushed DC motor from 7V to 58V. With a discrete NMOS H-Bridge design, this motor driver is able to support 25Amp continuously without an additional heatsink.
The onboard test buttons and motor output LEDs allow functional testing of the motor driver in a quick and convenient way without hooking up the host controller. A Buck regulator which produces 5V output is also available to power the host controller. This is especially useful for high voltage applications where no additional power source nor high voltage buck regulator is needed.

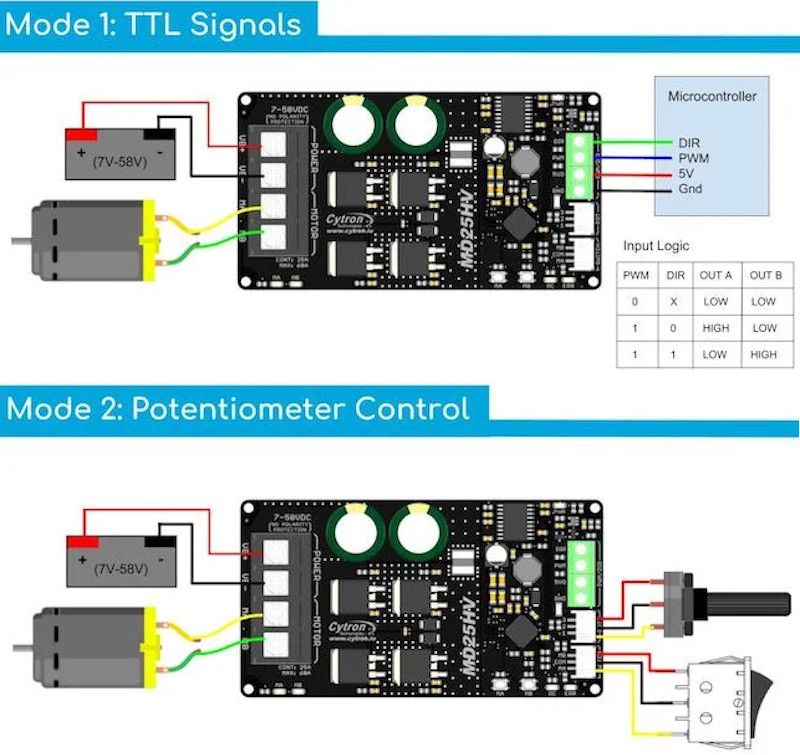

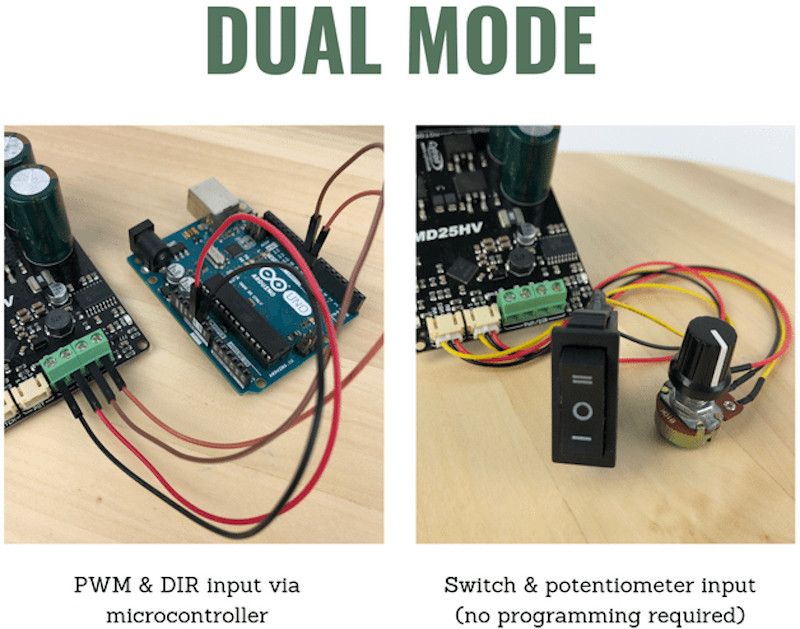

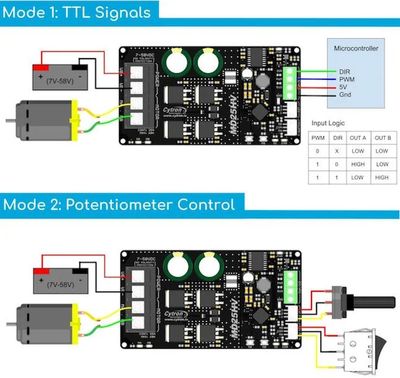

MD25HV can be controlled with PWM and DIR inputs. With input logic voltage ranging from 1.8V to 30V, it’s compatible with a wide variety of host controllers (e.g. Arduino, Raspberry Pi, PLC). If you prefer to control the motor directly without any programming, this motor driver can be controlled from a potentiometer (speed) and a switch (direction) too.
[img-30555-left-desc_default]
[img-30554-left-desc_default]
Features
Bidirectional control for one brushed DC motor
Operating Voltage: DC 7V to 58V
Maximum Motor Current: 25A continuous, 60A peak
5V output for the host controller (250mA max)
Buttons for quick testing
LEDs for motor output state
Dual Input Mode: PWM/DIR or Potentiometer/Switch Input
PWM/DIR Inputs compatible with 1.8V, 3.3V, 5V, 12V and 24V logic (Arduino, Raspberry Pi, PLC, etc)
PWM frequency up to 40kHz (Output frequency is fixed at 16kHz)
Overcurrent protection with active current limiting
