Cytron ARDUINO SHIELD DC-MOOTTORIOHJAIN 1.2A 7-30V 2CH

Name: Cytron ARDUINO SHIELD DC-MOOTTORIOHJAIN 1.2A 7-30V 2CH
Brand: Cytron
SKU: ARD-SHIELD3AMOTOR
Price: 22.65 EUR
Availability: InStock

Varastossa alle 5 kpl

SKU#: ARD-SHIELD3AMOTOR

Cytron ARDUINO SHIELD DC-MOOTTORIOHJAIN 1.2A 7-30V 2CH

Cytron ARDUINO SHIELD DC-MOOTTORIOHJAIN 1.2A 7-30V 2CH

Varastossa alle 5 kpl

SKU#: ARD-SHIELD3AMOTOR

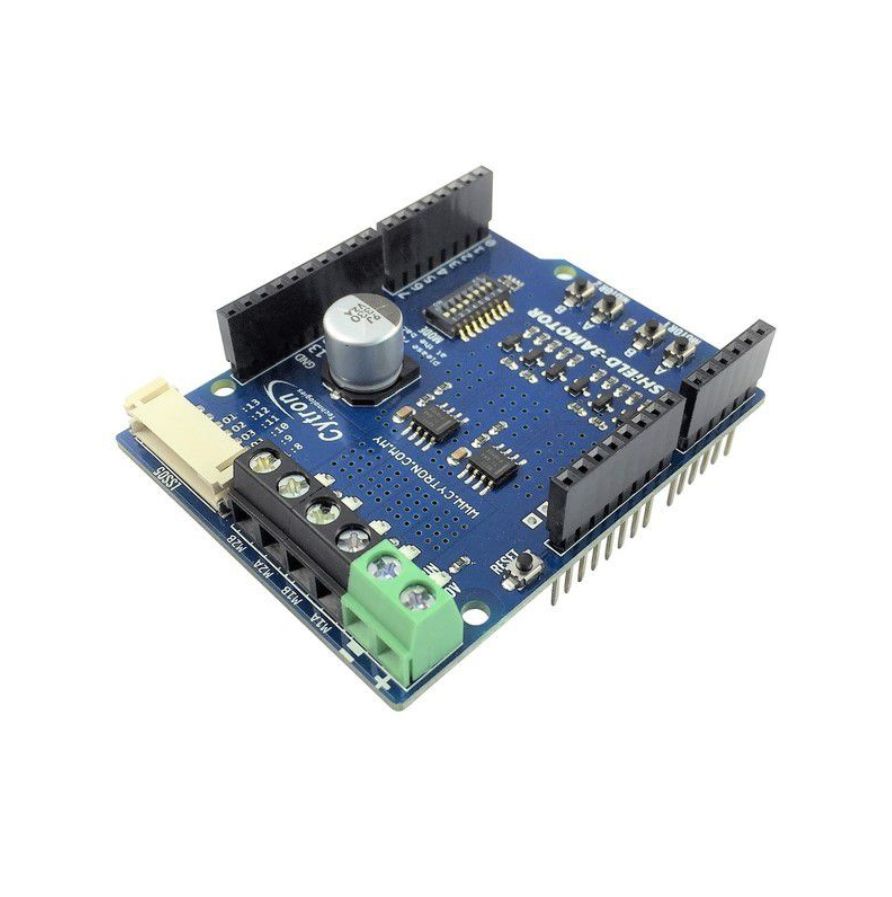

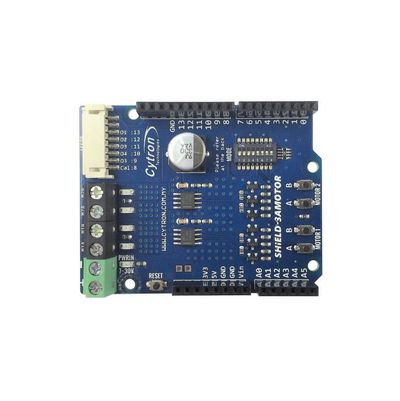

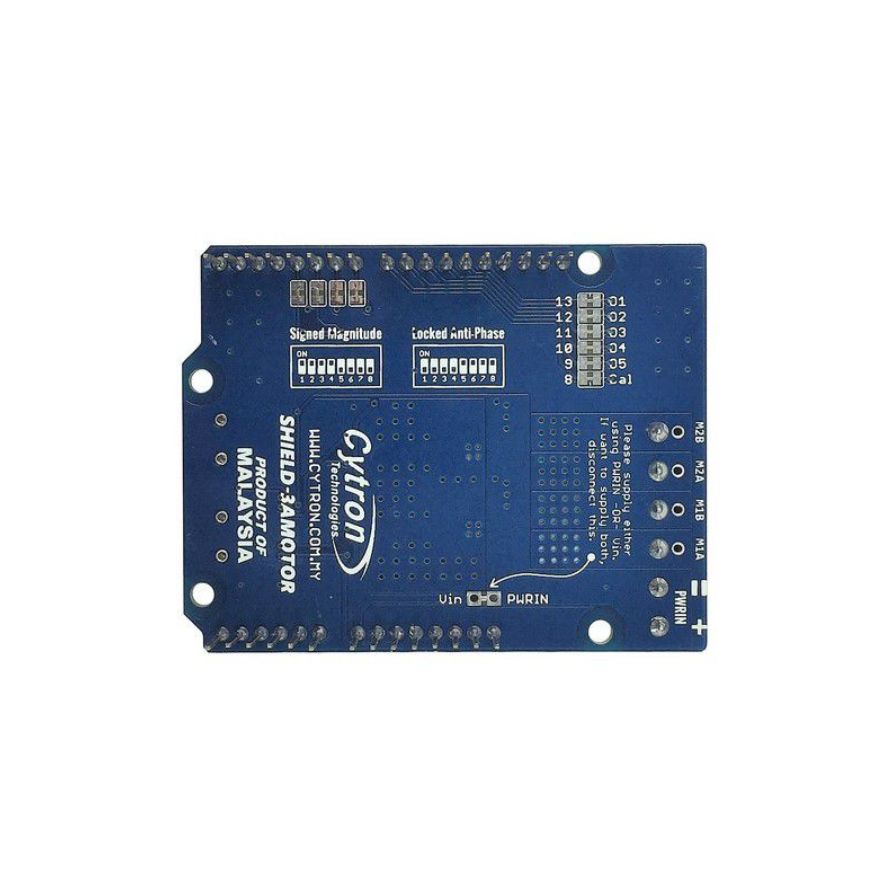

Cytron SHIELD-3AMOTOR - 1.2Amp 7V-30V DC Motor Driver Shield for Arduino (2 Channels)

22,65 €

Varastossa

Lisää kommentti tuotteesta

Nopea toimitus Suomesta

Luotettavat ja monipuoliset toimitusvaihtoehdot

Maksuvaihtoehdot

Lasku, verkkomaksut, kortit, MobilePay

Tuotekuvaus

Cytron Motor Driver shield, dual channels, which offers 3A peak of current and 1.2A of current continuously at each channel. It is compatible with most Arduino main boards, Arduino or Genuino UNO, Mega, Leonardo, Zero, 101 and etc.

SHIELD-3AMOTOR uses DRV8871 SMD IC and support for both signed magnitude and locked anti-phase. Compare to the other shields, this item can handle higher current up to 3A together with auto current limit protection.

Features

Bi-directional control for dual brushed DC motor.
Support motor voltage from 7VDC to 30VDC.
Maximum current up to 3A peak and 1.2A continuously, each channel.
Current limit protection.
Support 3.3V and 5V logic level input.
Stackable I/O header pin.
Selectable DIP switch mode for Signed Magnitude and Locked Anti-Phase.
Quick test switch for both channel.
Ready with connector for LSS05 (Auto-calibrate line sensor) for easy integration of line following robot.
NO POLARITY PROTECTION FOR V MOTOR.

Specifications

Operating Modes
Motor Channel	2
Operating Voltage (VDC)	7 to 30
Peak Current (A)	3 (per channel)
Continuous Current (A)	1.2
Arduino Shield	YES
PWM (Lock-Antiphase and Sign-Magnitude)	YES
UART	NO
Analog	NO
RC Servo Signal	NO
Special Protection
Polarity Protection	NO
Appearance
LEDs Indicator	YES
Test/Manual Button	YES
Other Features
others	Socket for LSS05 and Selectable PWM and DIR pin

Tuotetiedot

Saatavuus Varastossa
Valmistaja Cytron
Tuotepolku Etusivu Kehityskortit Arduino Arduino lisäkortit (shield) Cytron ARDUINO SHIELD DC-MOOTTORIOHJAIN 1.2A 7-30V 2CH
SKU ARD-SHIELD3AMOTOR
Ominaisuudet
- Yhteensopiva Arduino
- Kanavat 2
- Valmistajan malli SHIELD-3AMOTOR
- Klikkaa tarkemmat tiedot https://www.cytron.io/p-1.2amp-7v-30v-dc-motor-driver-shield-for-arduino-2-channels
