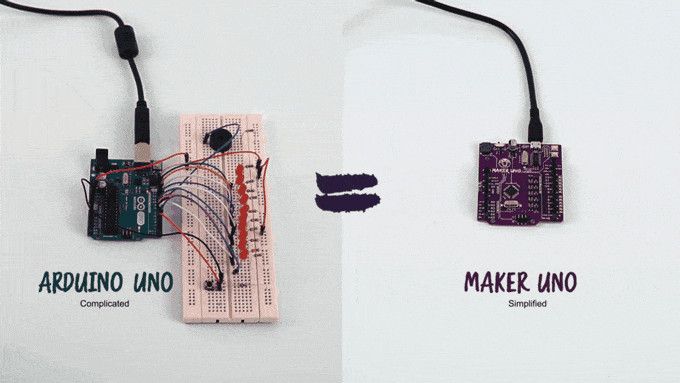

Students can skip the hassle of constructing the basic electronic circuit which is boring and time consuming. Although it is equally important for them to learn about basic electronics, it can always come later after they have experienced how easy it is to create awesome project. Start with fun and excitement. Start coding right away and see your board lights up and plays melody with the press of a button.
[img-24299-left-large_default]
Additional Features
One of the brilliant features of the official Arduino Uno is the label printed on its pin headers. It saves us a lot of time when we want to connect the I/O pins to the external circuit. So, we include a set of these label stickers for pin headers in each of the Maker UNO Plus! (Please note that you need to peel off the stickers and stick them on the board by yourself)
[img-24300-left-large_default]

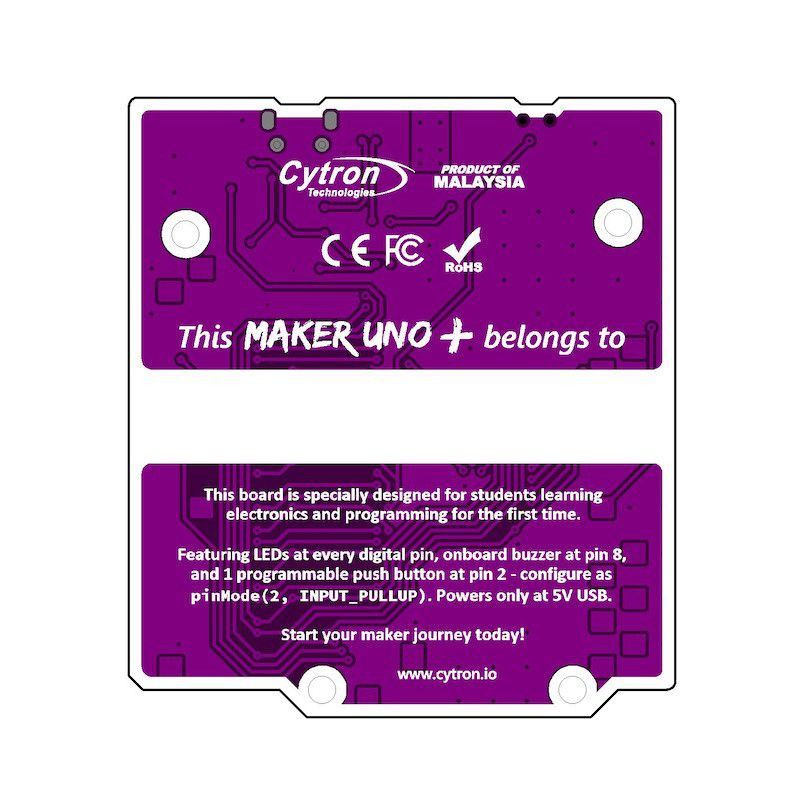

Students always get their boards mixed up. With Maker UNO, you can write your name on the board. Problem solved!
[img-24305-left-large_default]
Maker UNO Plus is CE, FCC and RoHS compliance! CE also known as "European Conformity" is a product safety requirement recognized by the European countries. FCC is a requirement of the Federal Communications Commission (USA) to ensure the electromagnetic interference from the product is under the approved limits. While RoHS compliance means that all components that used at Maker UNO Plus are green and not harmful to the environment.
Specification

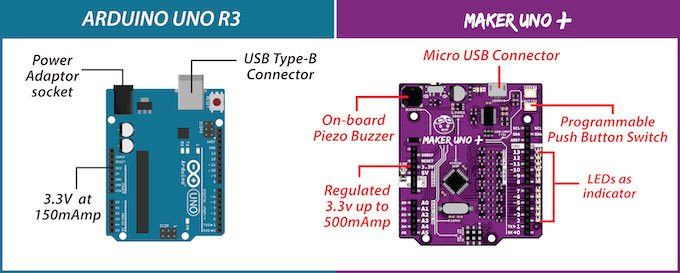

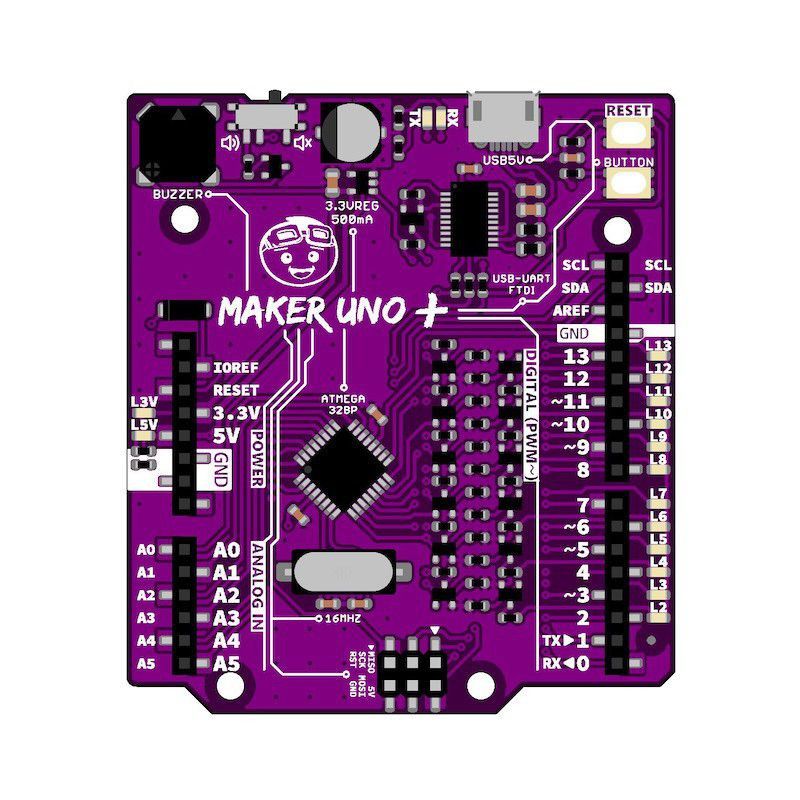

Maker UNO Plus is fully compatible with Arduino. You can share the same library and code. Compared with the original Arduino Uno, Maker UNO Plus has added with 12x LED, 1x piezo buzzer and 1x programmable pushbutton switch. The current of 3.3V is boosted to 500mA from 150mA to support more 3.3V's devices. The DC jack power input socket is removed and the conventional USB Type B is also replaced with the more commonly used USB Micro B.
[img-24302-left-desc_default]
The USB to serial converter used at Maker UNO Plus is upgraded to FT231X from CH340 at Maker UNO. The driver installation of FT231X is much easier compare to CH340.
[img-24303-left-desc_default]
[img-24304-left-desc_flipped]
Documents
Tutorials

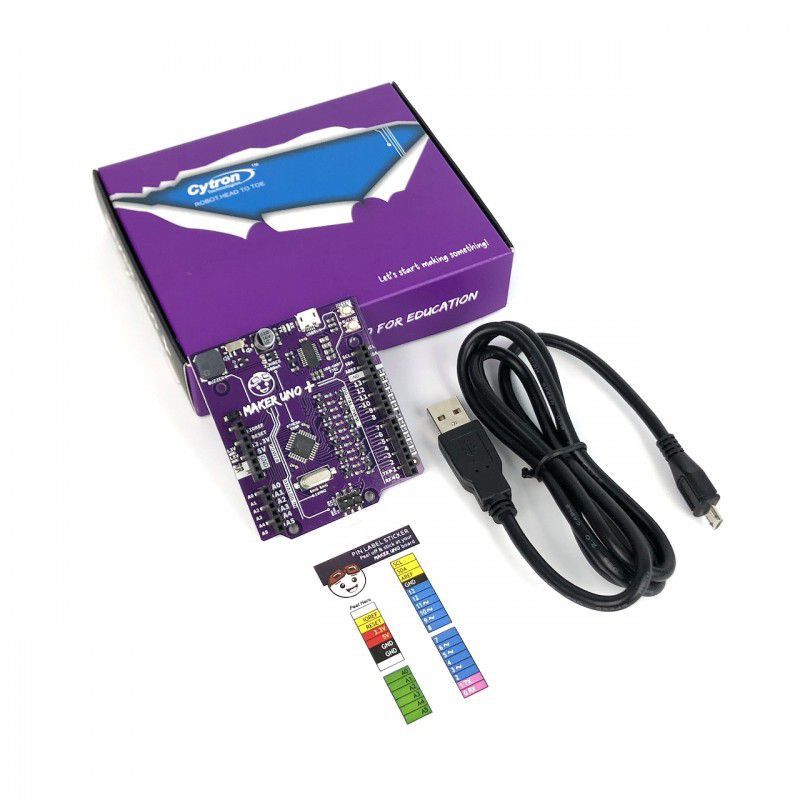

Packing List
- 1 x Maker UNO Plus
- 1 x Micro USB cable
- 1 x Pin Header Sticker
