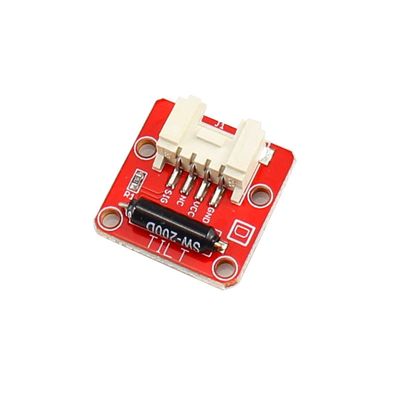

The Crowtail- Tilt Switch is a sensor to detect the station of forwards. It outputs logic LOW in Horizontal direction and logic HIHG in vertical direction.

Inside the tilt switch is a pair of balls that make contact with the pins when in the case of vertical. Tilt the case over and the balls don't touch, thus not making a connection.

Ominaisuudet

• Connection Mode: D(Digital)
• Working Voltage:5V
• Dimensions(mm):20.0(L)x20.0(W)x6.8(H)

Osalista

• 1 X Crowtail- Tilt Switch
• 1 X Crowtail 4 Pin Cable

Linkkivinkit

• Tilt_Switch Schematic
• Tilt_Switch Program
• Wiki link
